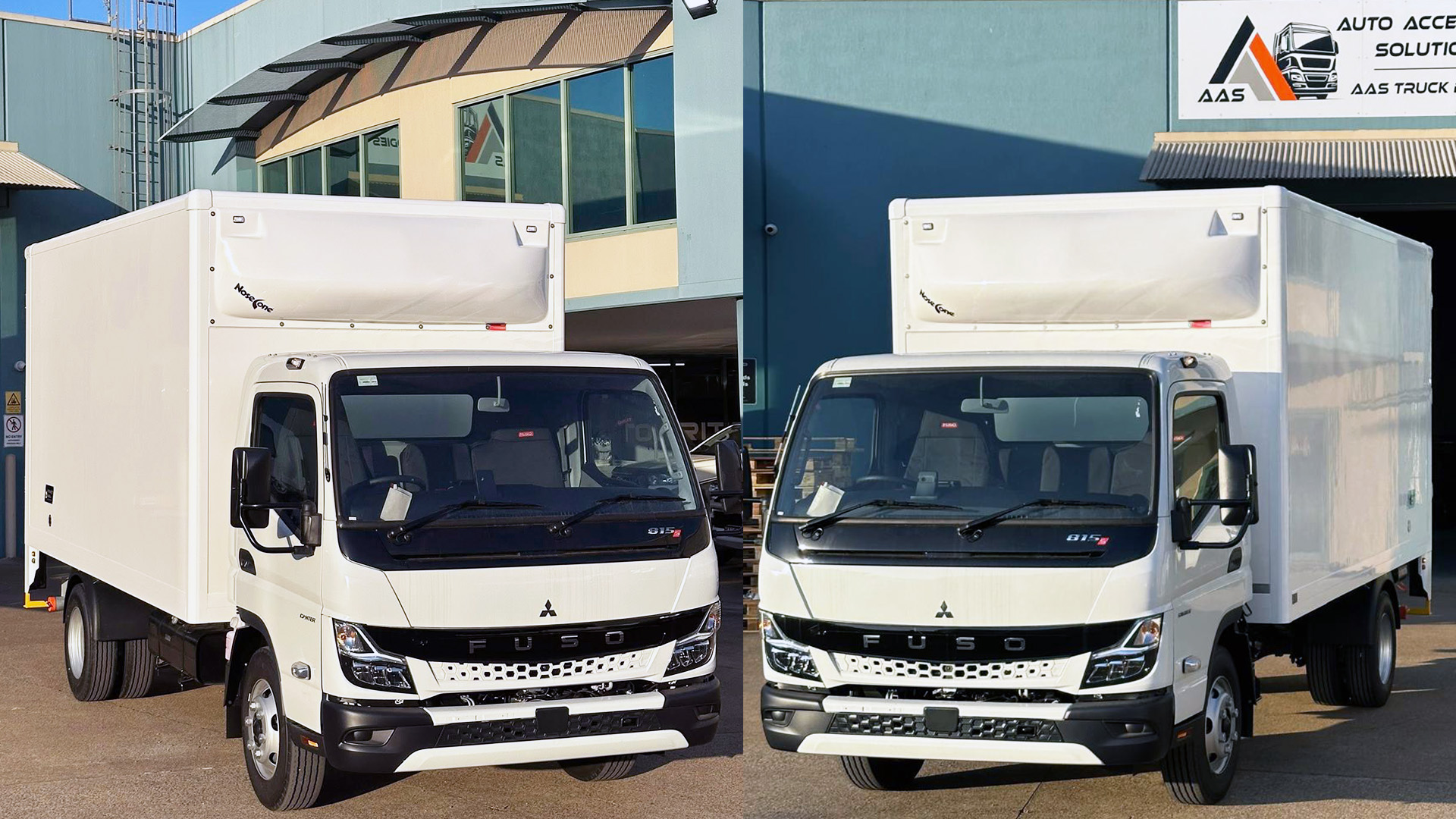

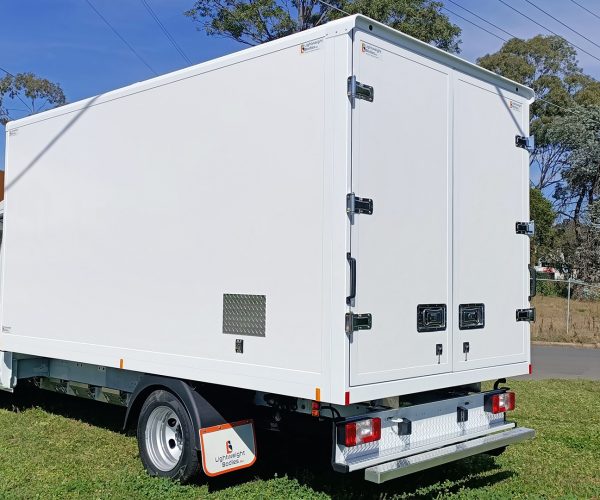

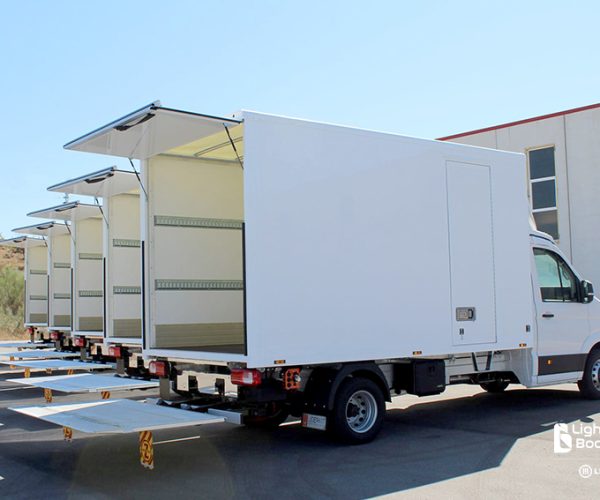

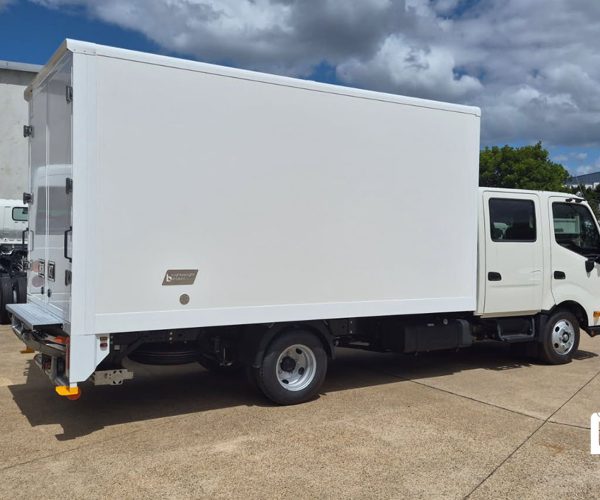

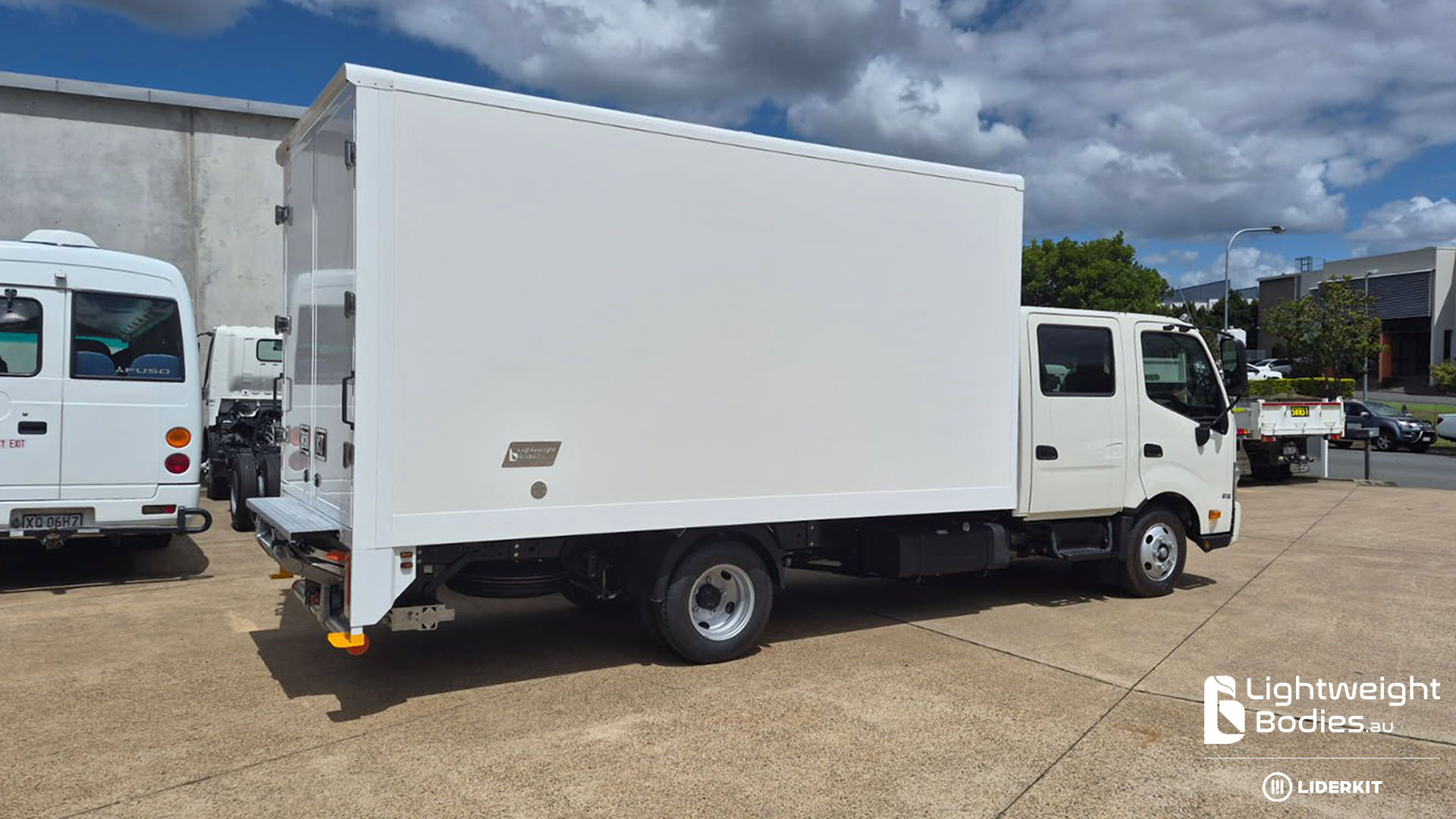

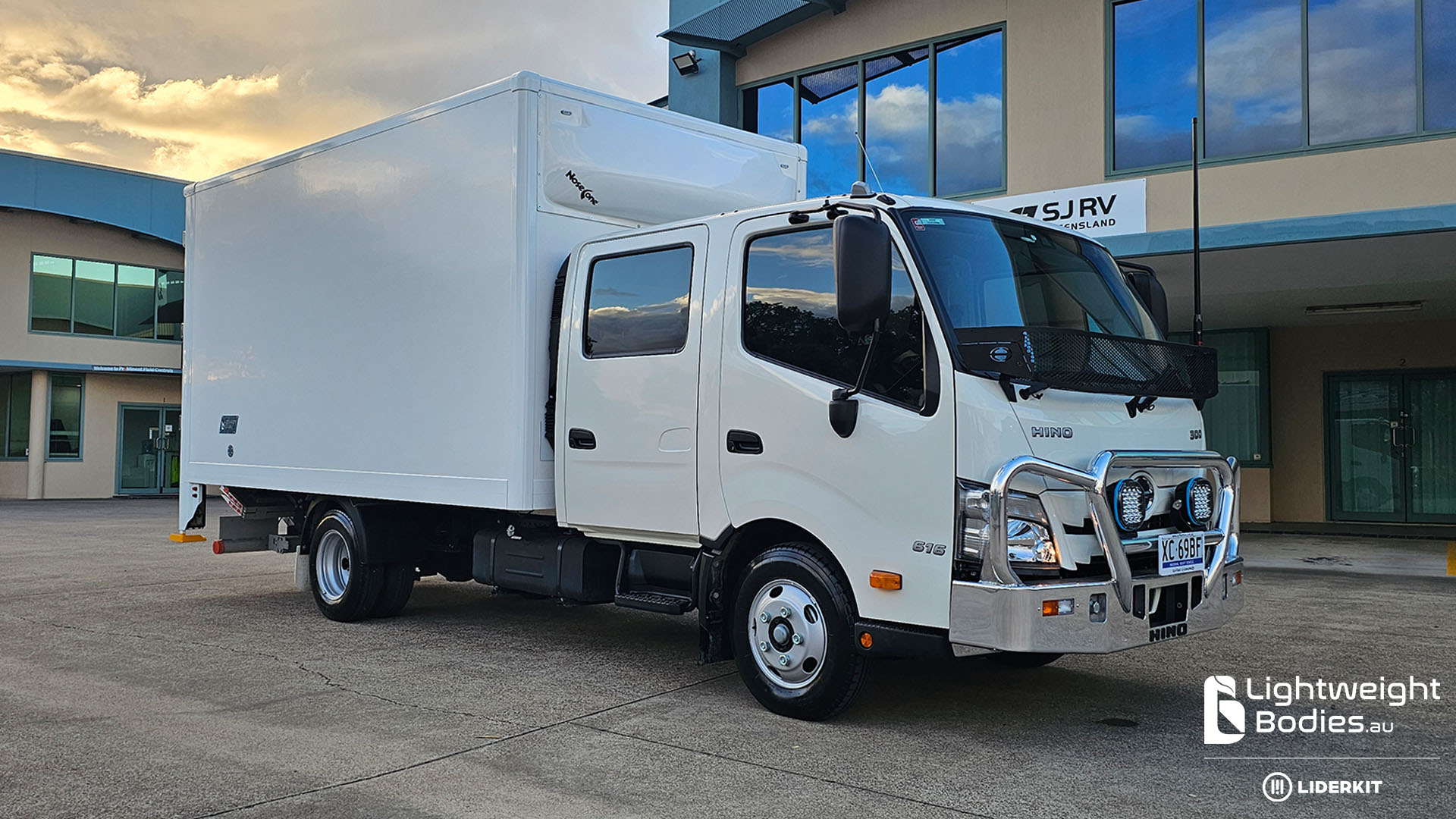

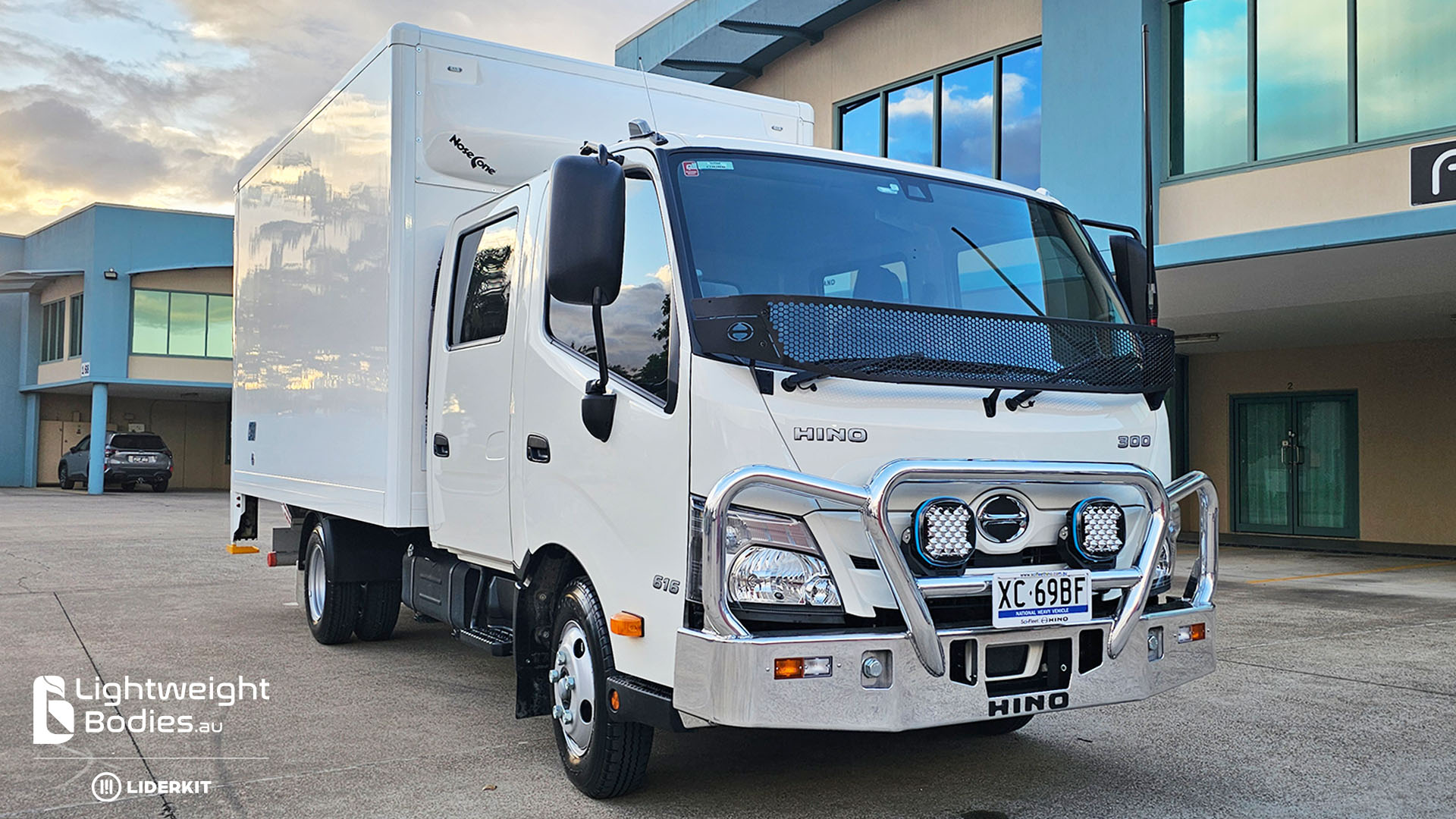

PANTECH
Car Licence | 4500kg GVM
Size – 4300L 2200W | 2100H (Int)
Body Weight ~575kg | 19.9m Cube
BODY – Is constructed from LIDERKITs® superior interlocking system.
PANELS – Are made from LIDERfoam® 30mm XPS insulated panels.

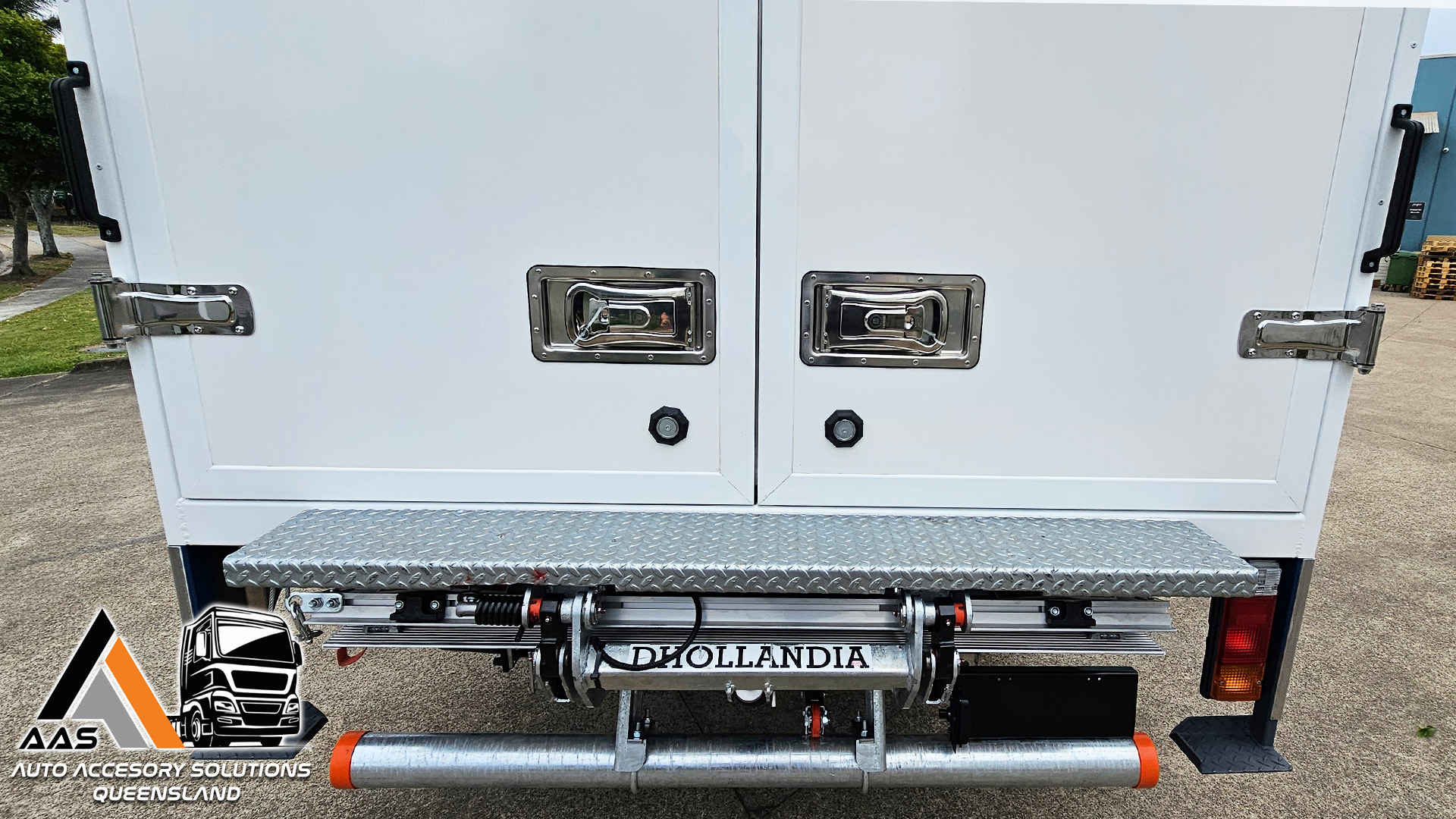

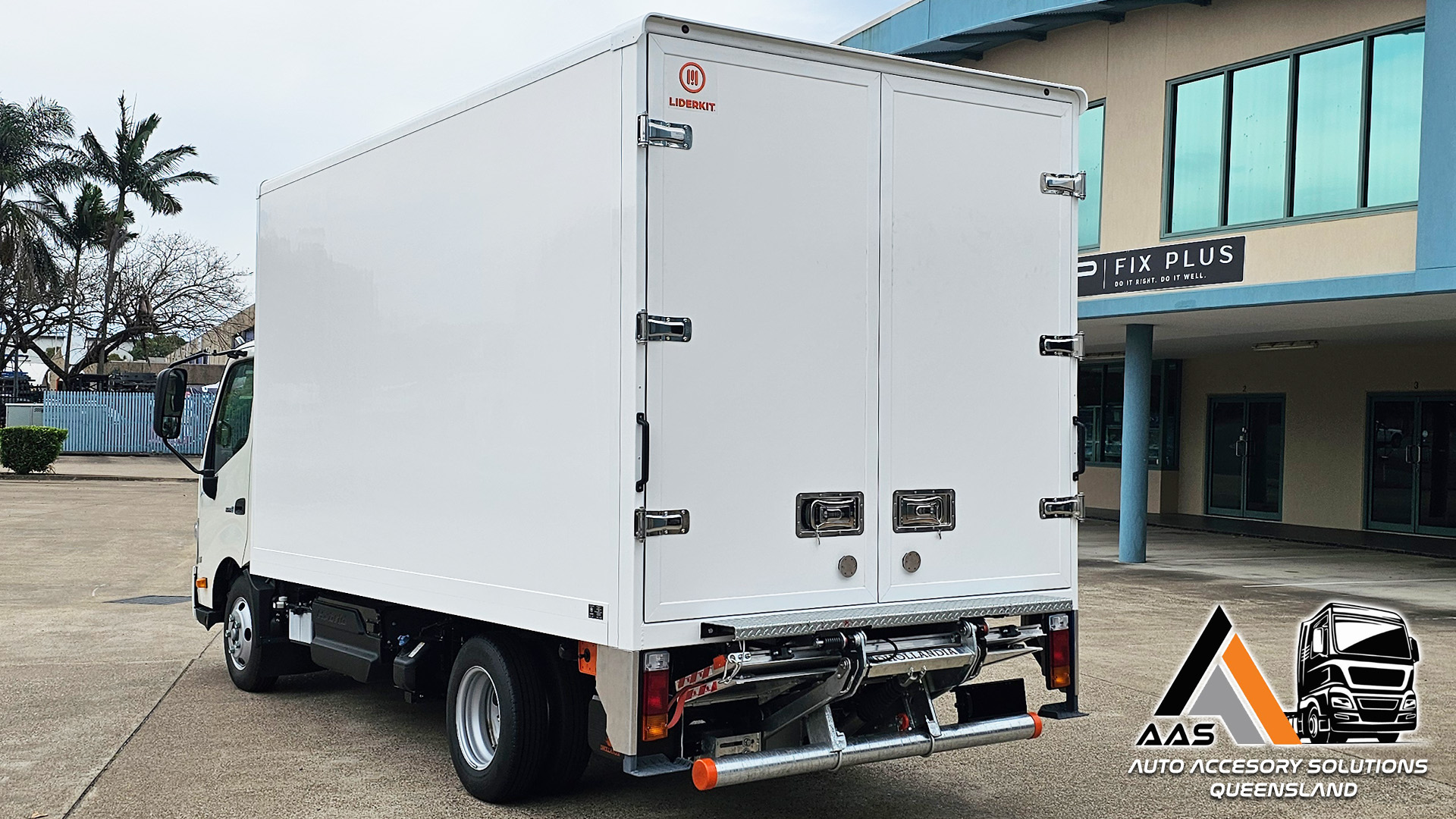

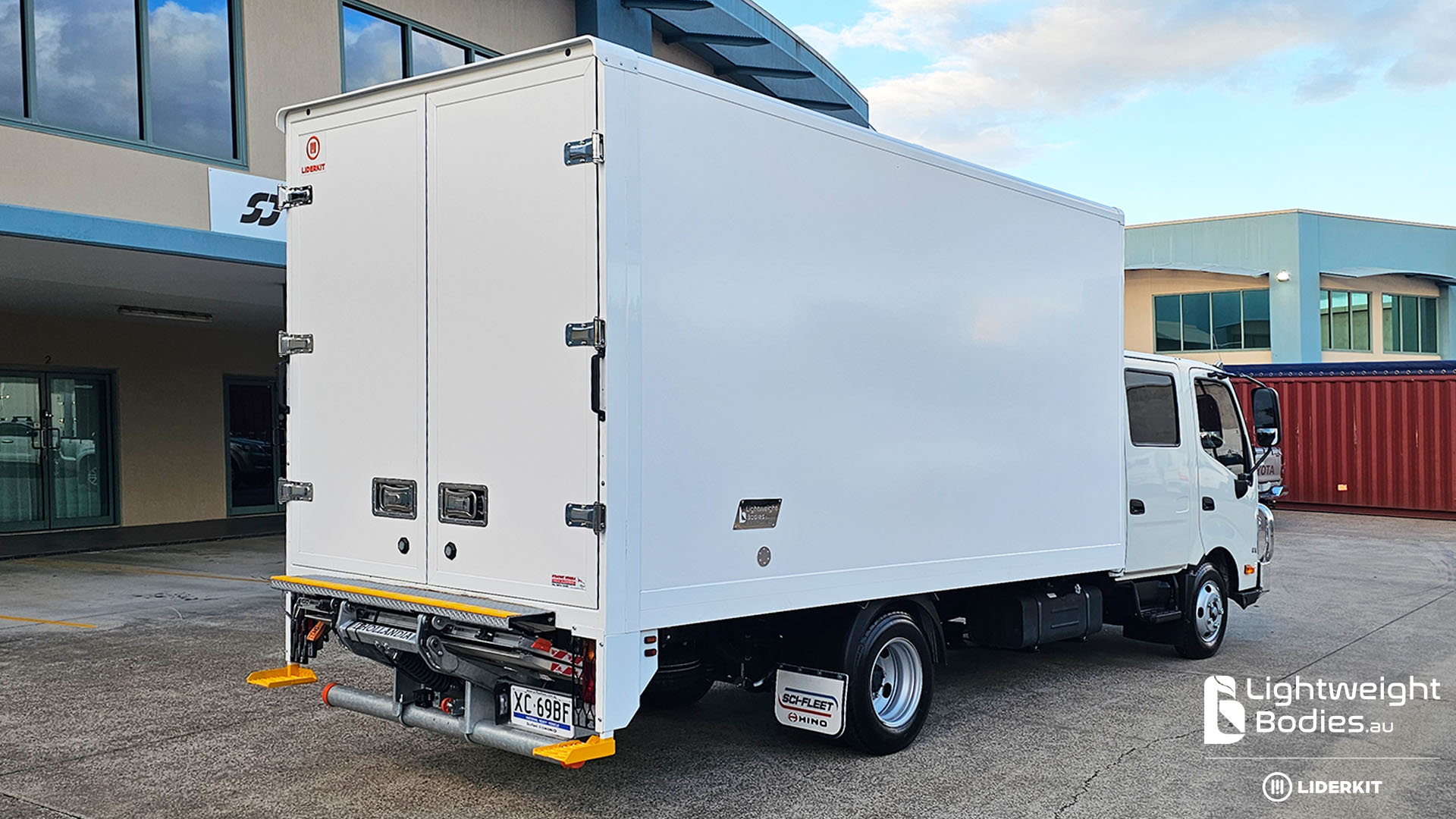

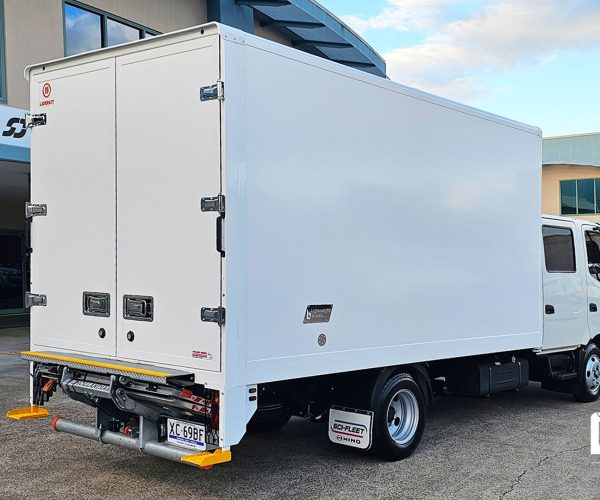

REAR FRAME – Two insulated barndoors, internal pinch seals, stainlesssteel hinges, internal camlocks, and flush lockable latches.
SUBFRAME – Is a lightweight, fully aluminium interlocking design, with adjustable body/chassis runners to suit any width chassis.
FLOOR – The floor consists of Phenolic floor sheets, which can also be aluminium.
FINISH – An all-over white body (Traffic White), with no exposed raw aluminium, which will eventually oxidise and fade.
See Video
BODY – Is constructed from LIDERKITs® superior interlocking system.
PANELS – Are made from LIDERfoam® 30mm XPS insulated panels.
REAR FRAME – Two insulated barndoors, internal pinch seals, stainlesssteel hinges, internal camlocks, and flush lockable latches.
SUBFRAME – Is a lightweight, fully aluminium interlocking design, with adjustable body/chassis runners to suit any width chassis.
FLOOR – The floor consists of Phenolic floor sheets, which can also be aluminium.
FINISH – An all-over white body (Traffic White), with no exposed raw aluminium, which will eventually oxidise and fade.
See Video

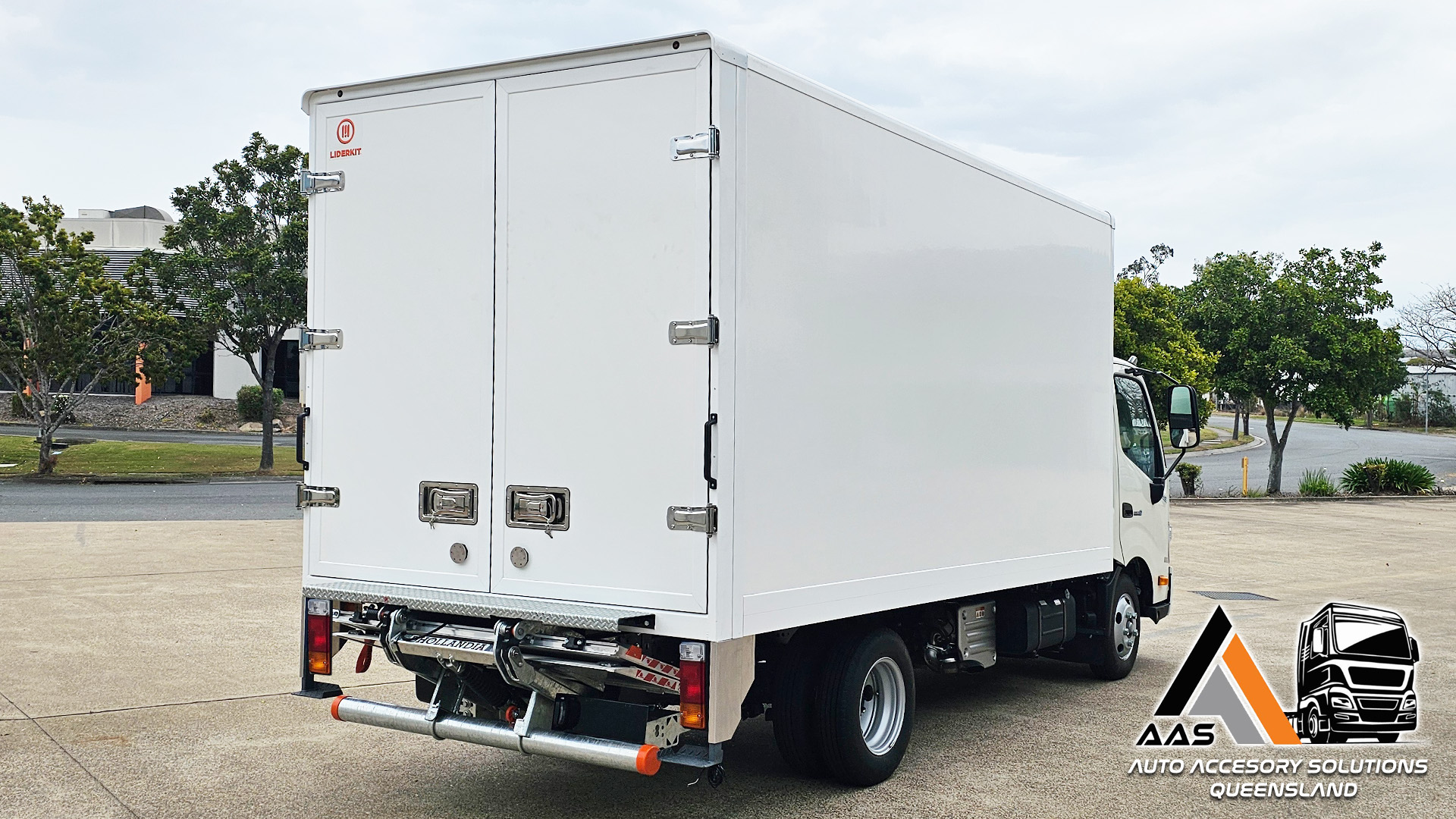

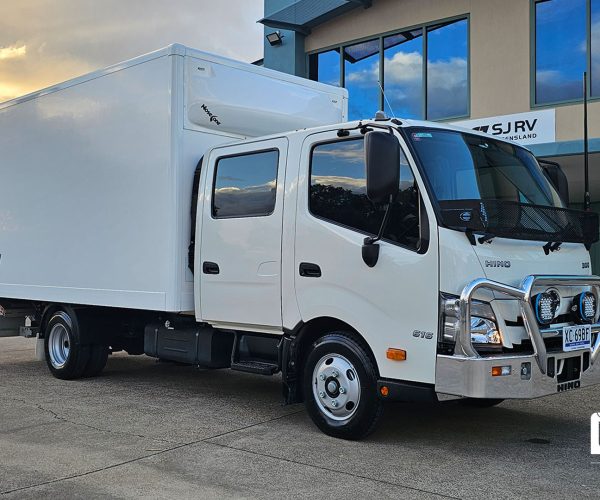

PANTECH & Tuckaway
Car Licence | 4500kg GVM
Size – 4300L 2200W | 2100H (Int)
Body Weight ~575kg | 19.9m Cube

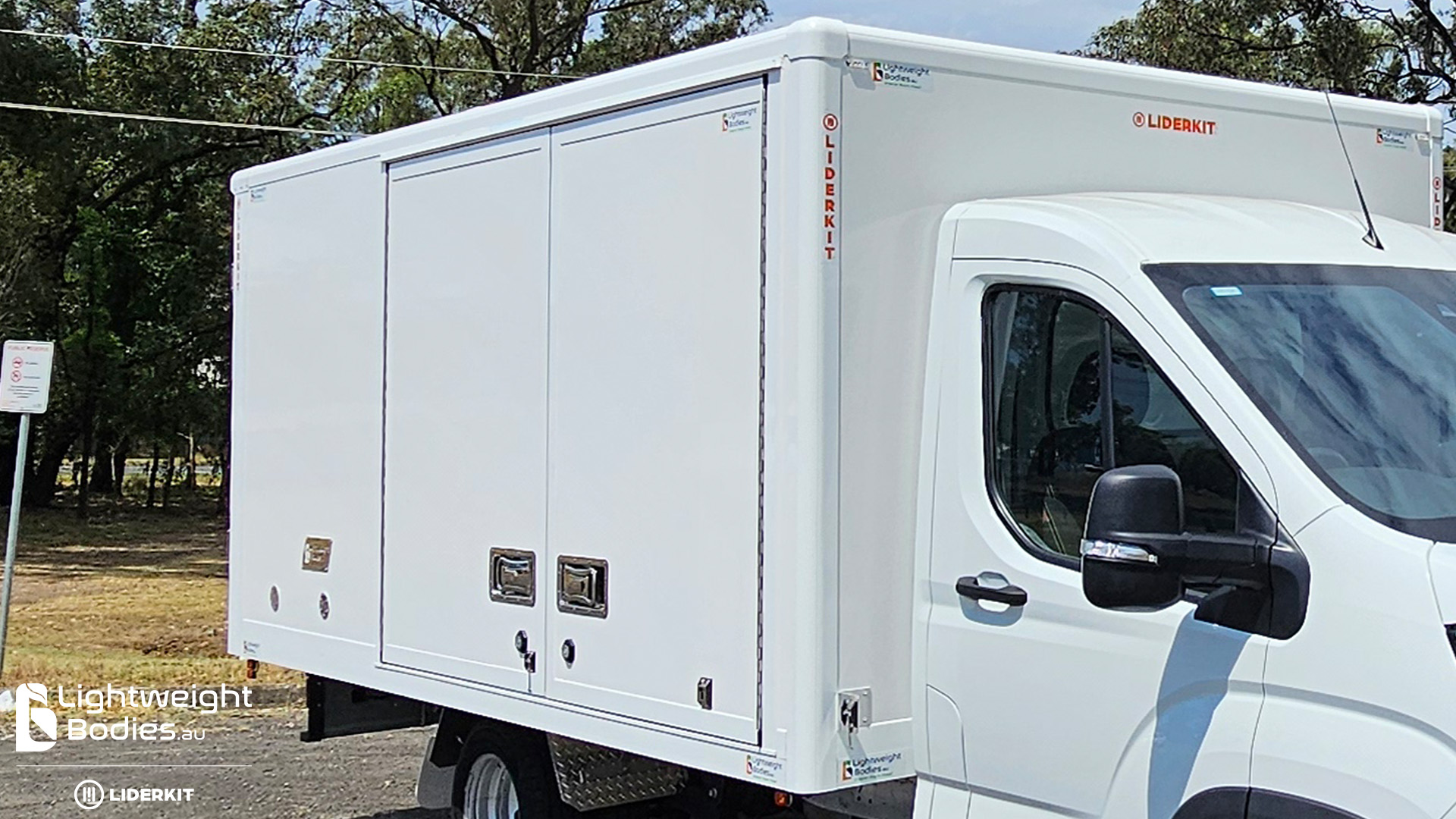

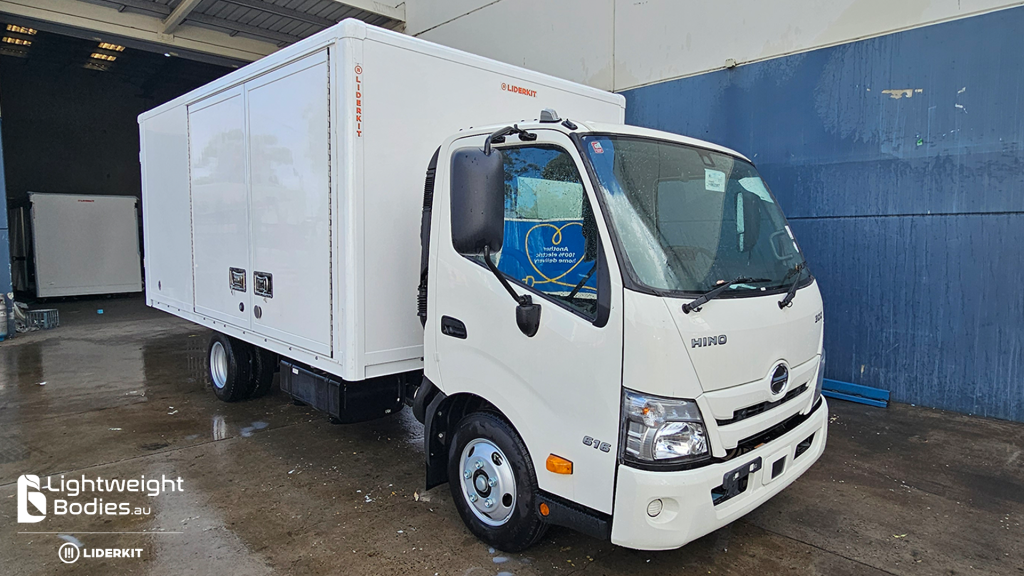

6 Pallet - Service Body
European Innovation, Lightweight Advantage
- LIDERKIT® Interlocking Body Design: Fully interlocking wall, roof, floor and rear doors for strength, rigidity, and tight climate performance.
- LIDERfoam® Sandwich Wall Panels: 30mm insulated XPS refrigerated body panels engineered for durability, temperature stability, and reduced heat transfer.
- Modular Build System: Bolt-together, rivet-together construction — zero welding, no engineering required, fast assembly.
- 6-Door Access Configuration: Two rear barn doors + four side access doors, each fitted with a 2500-opening angle for workplace convenience.
- 270mm High Aluminium Kick Plates: Added protection and durability around high-wear zones.

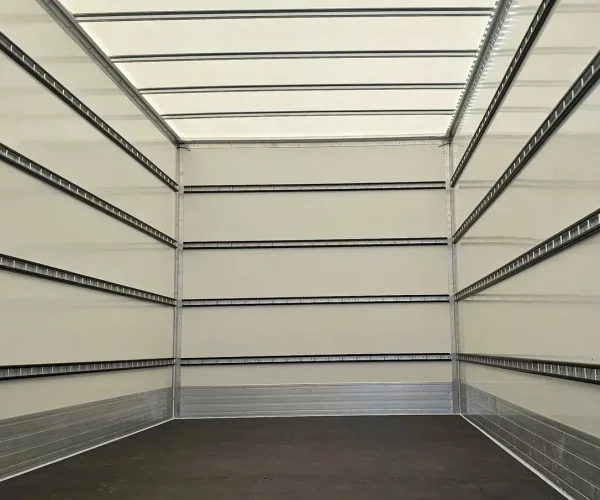

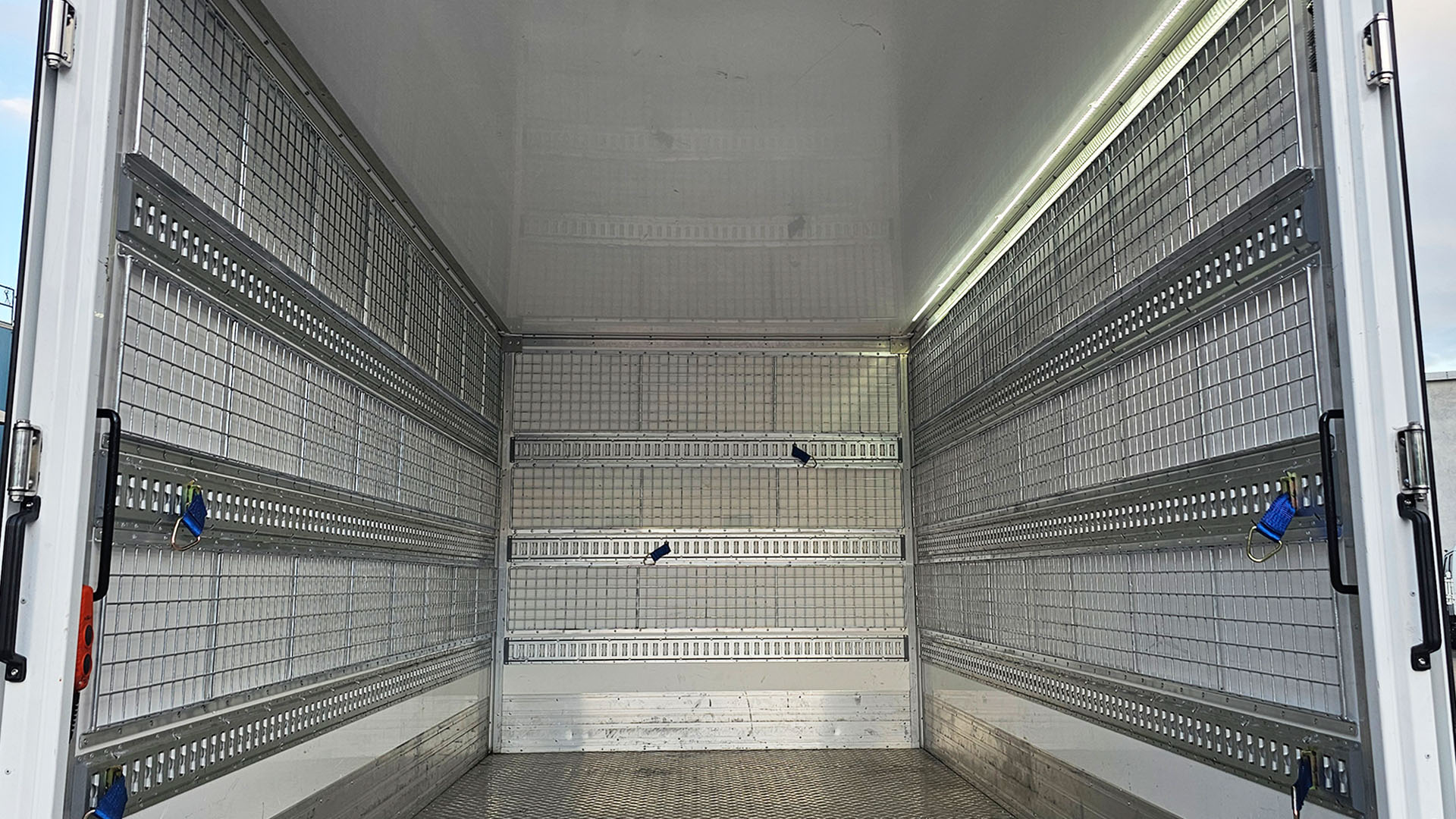

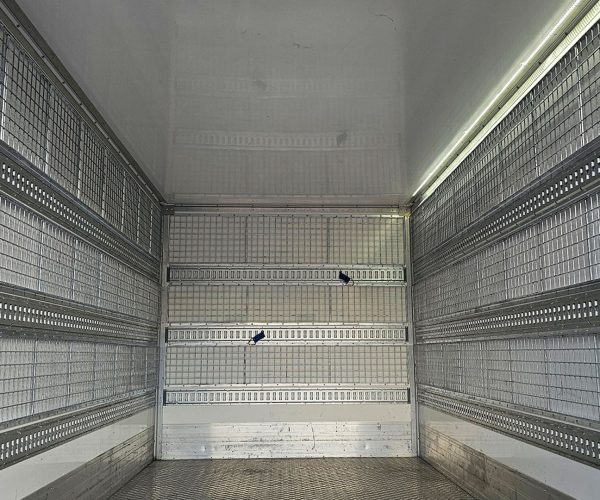

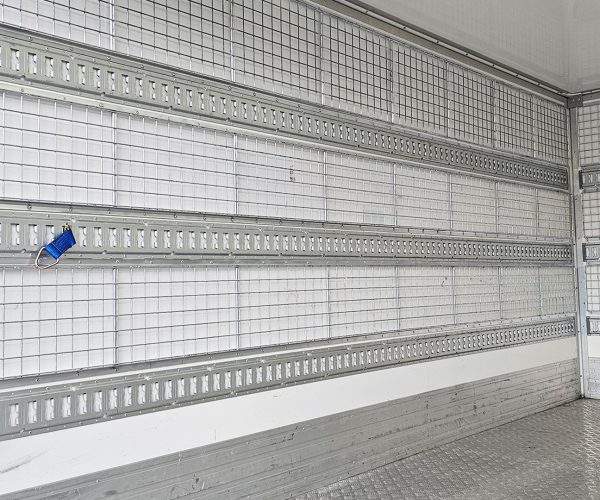

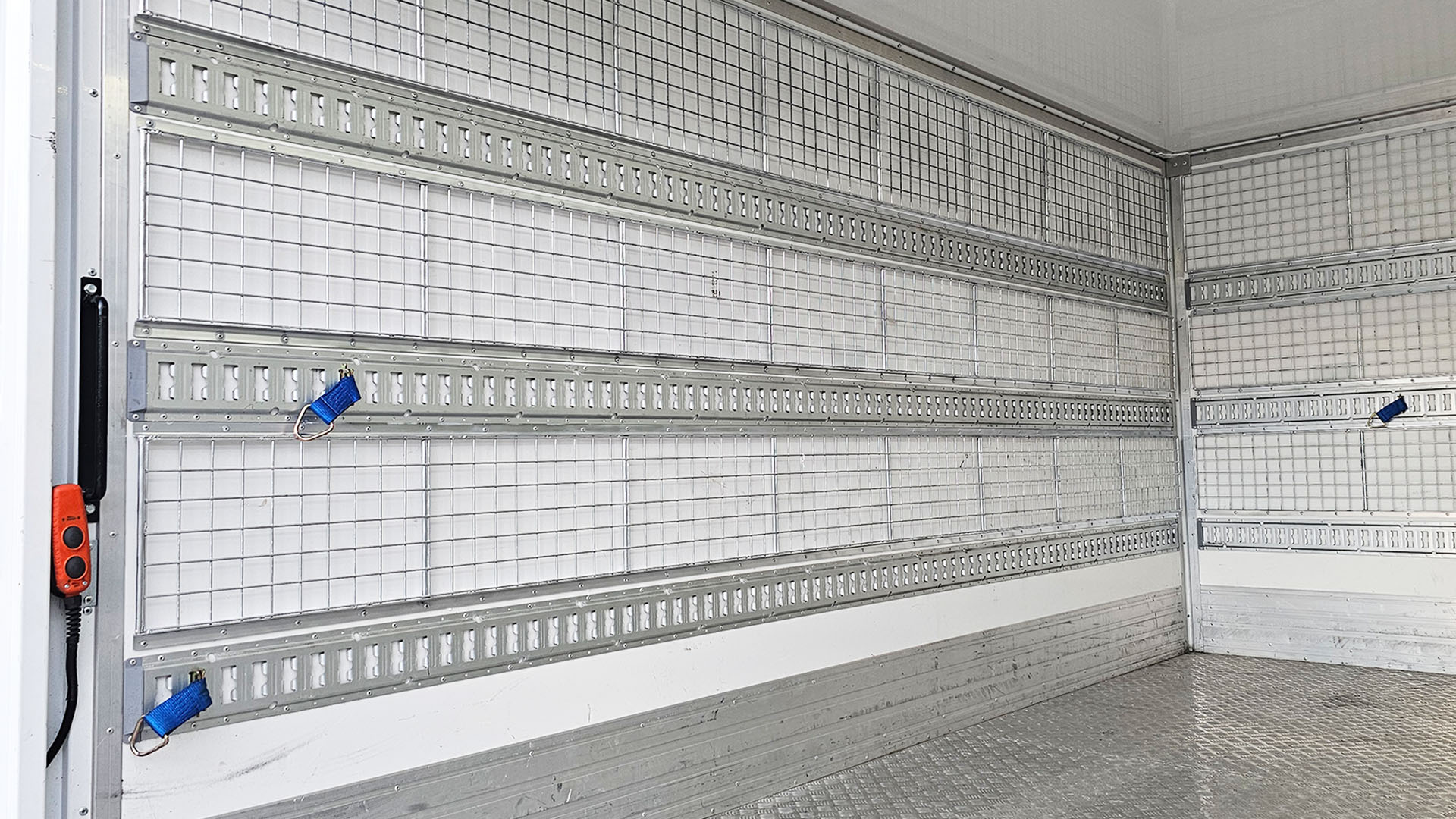

- E-Track Load Restraints: (3) rows of E-Track rails for load securement and cargo rigging.
- Auto-Sensor LED Strip Lighting: Energy-efficient internal lighting activated on entry.
- Magnetic Door Holders: Heavy-duty magnets on all doors for secure hold in windy or uneven sites.
- High-tensile aluminium floor: Highly durable, barleycorn-pattern, non-slip composite floor for long service life.
Key Specifications
GVM: 4500 kg (Car Licence)
In Stock – St Mary’s NSW
Body Weight: 798 kg
Body Size: 4300 mm (L) × 2495 mm (W) × 1860 mm (H internal)
Drive: Car Licence – Single Wheel or Dual Wheel compatible
6 Pallet Body with room for pallet trolley
Fitment: NSW – St Mary’s, ready to fit and go

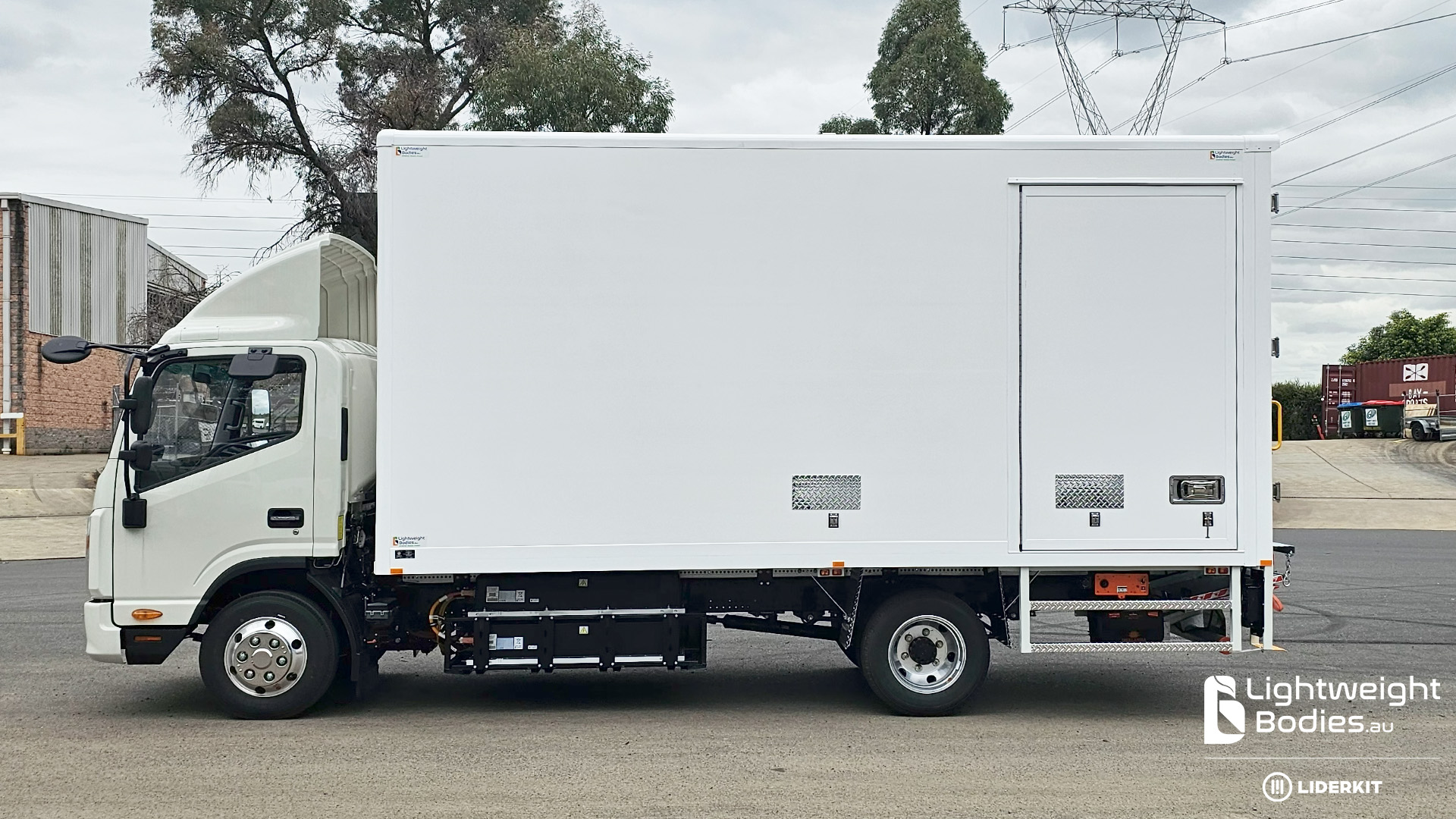

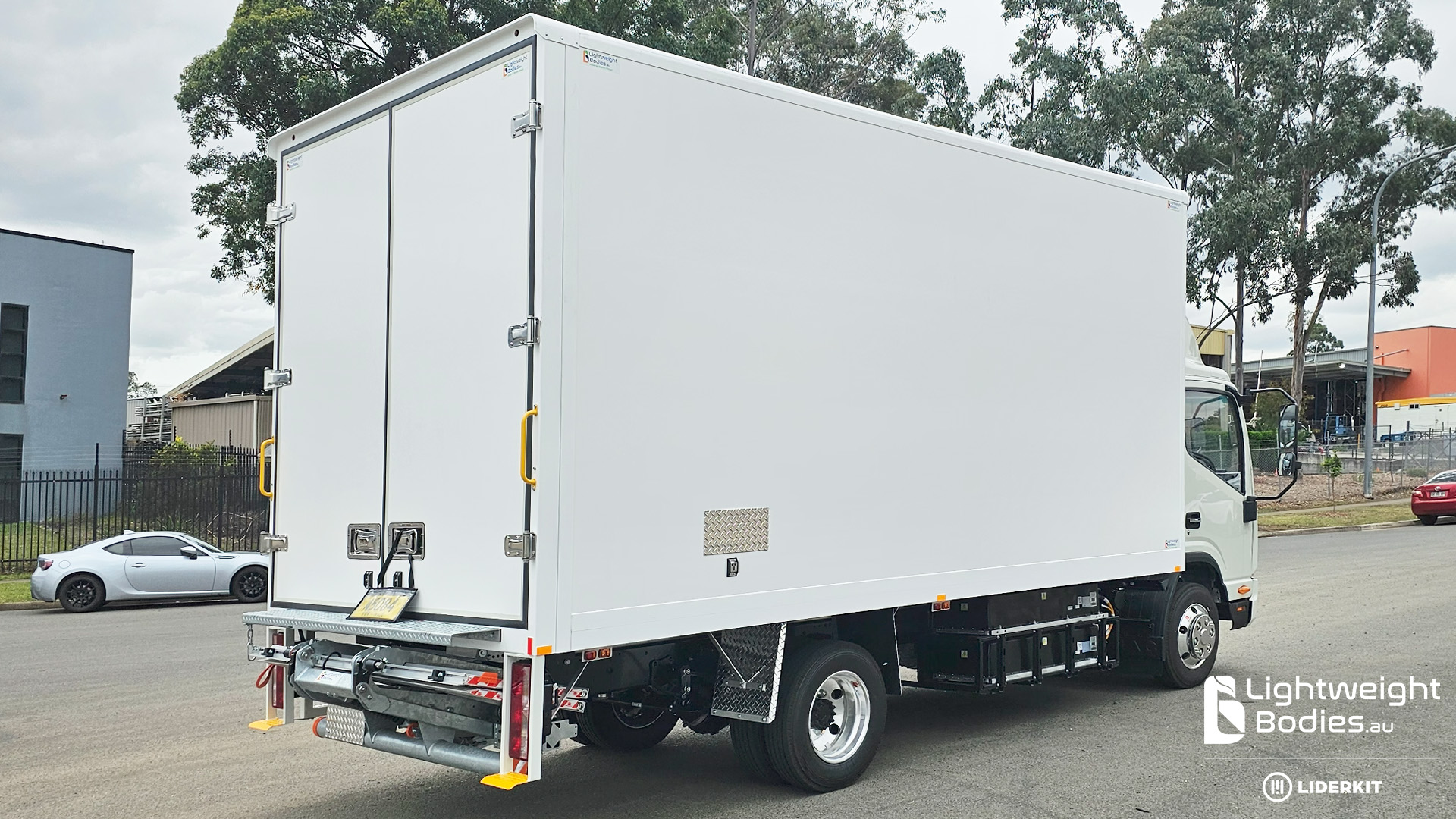

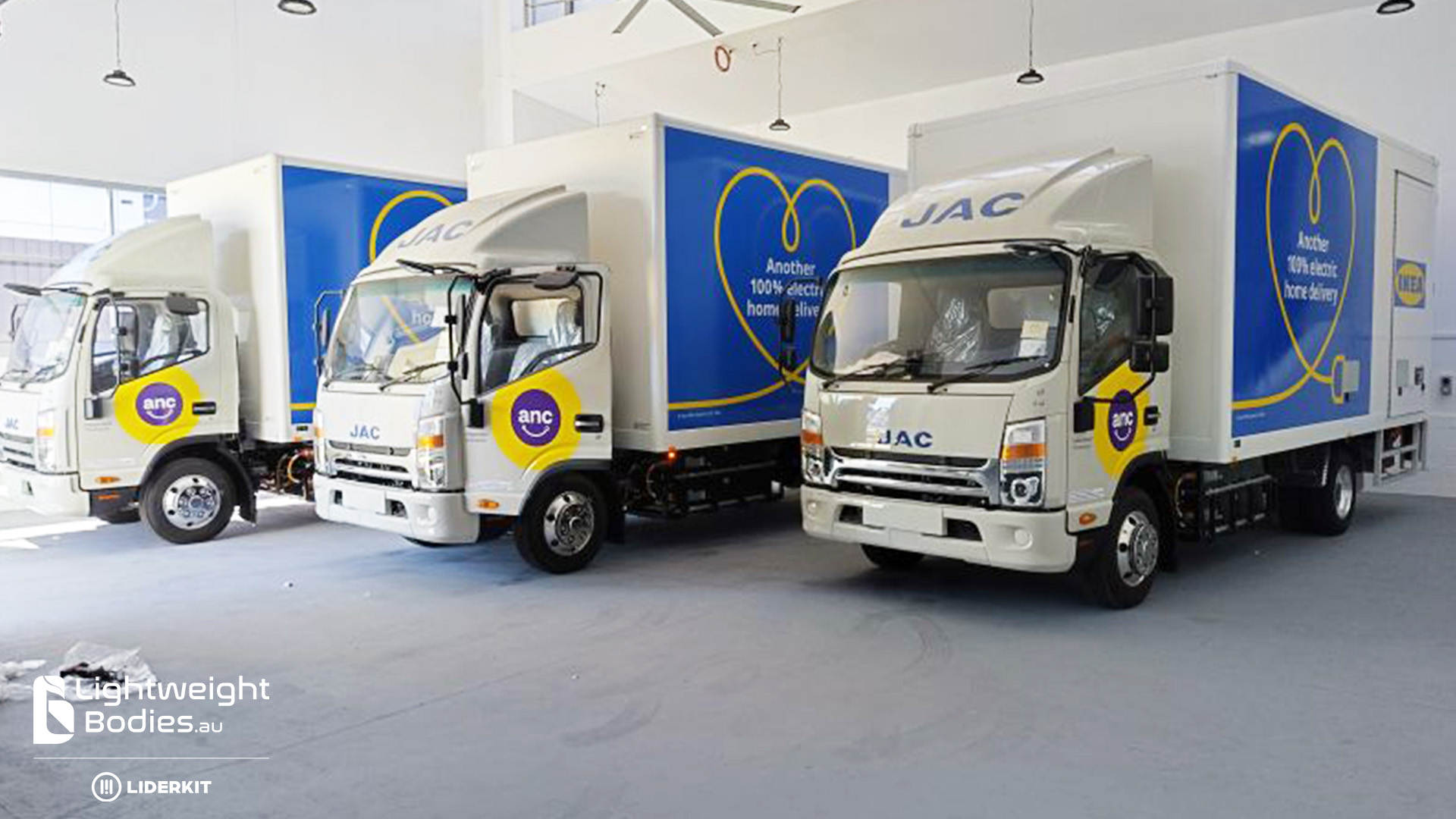

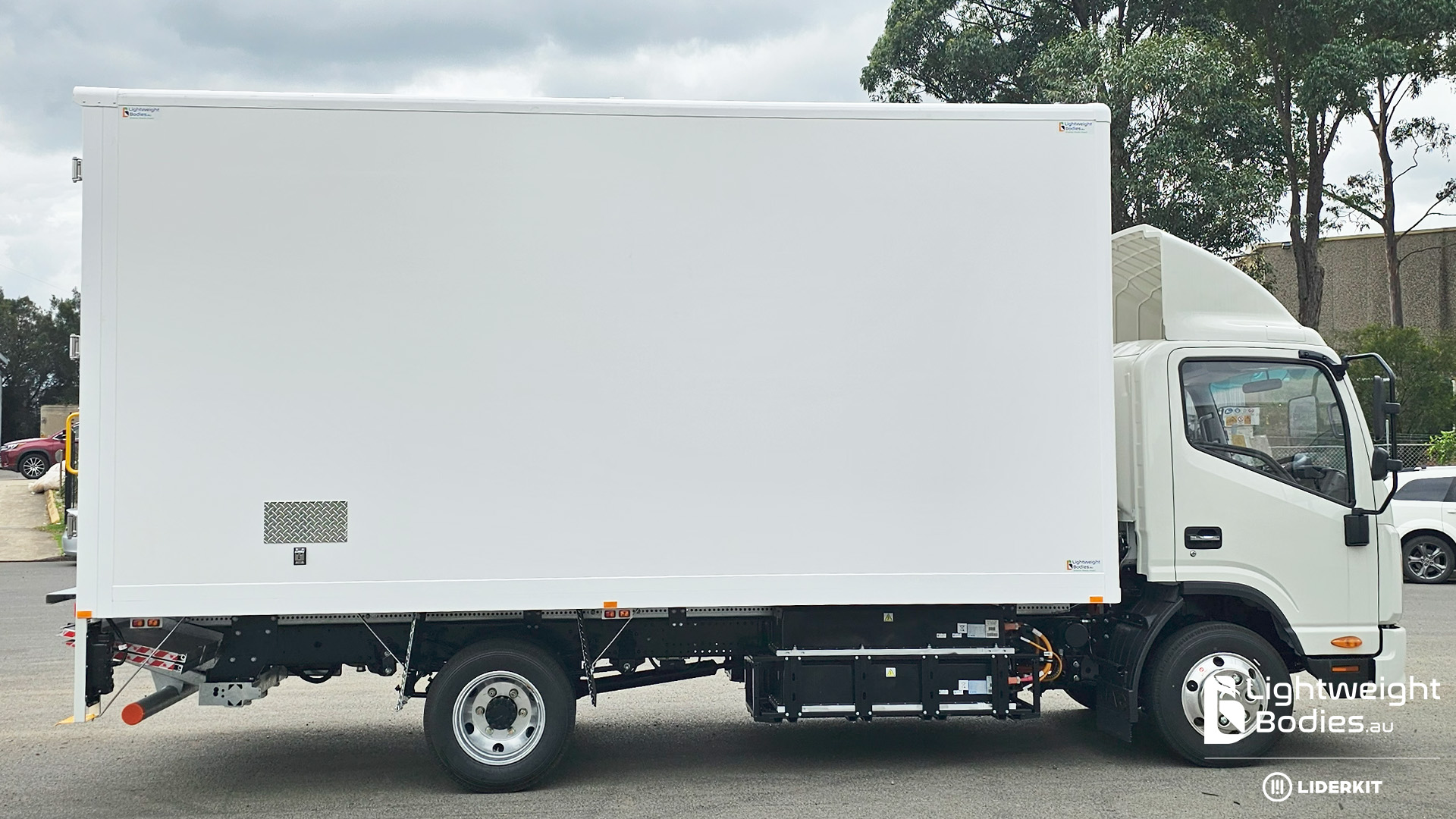

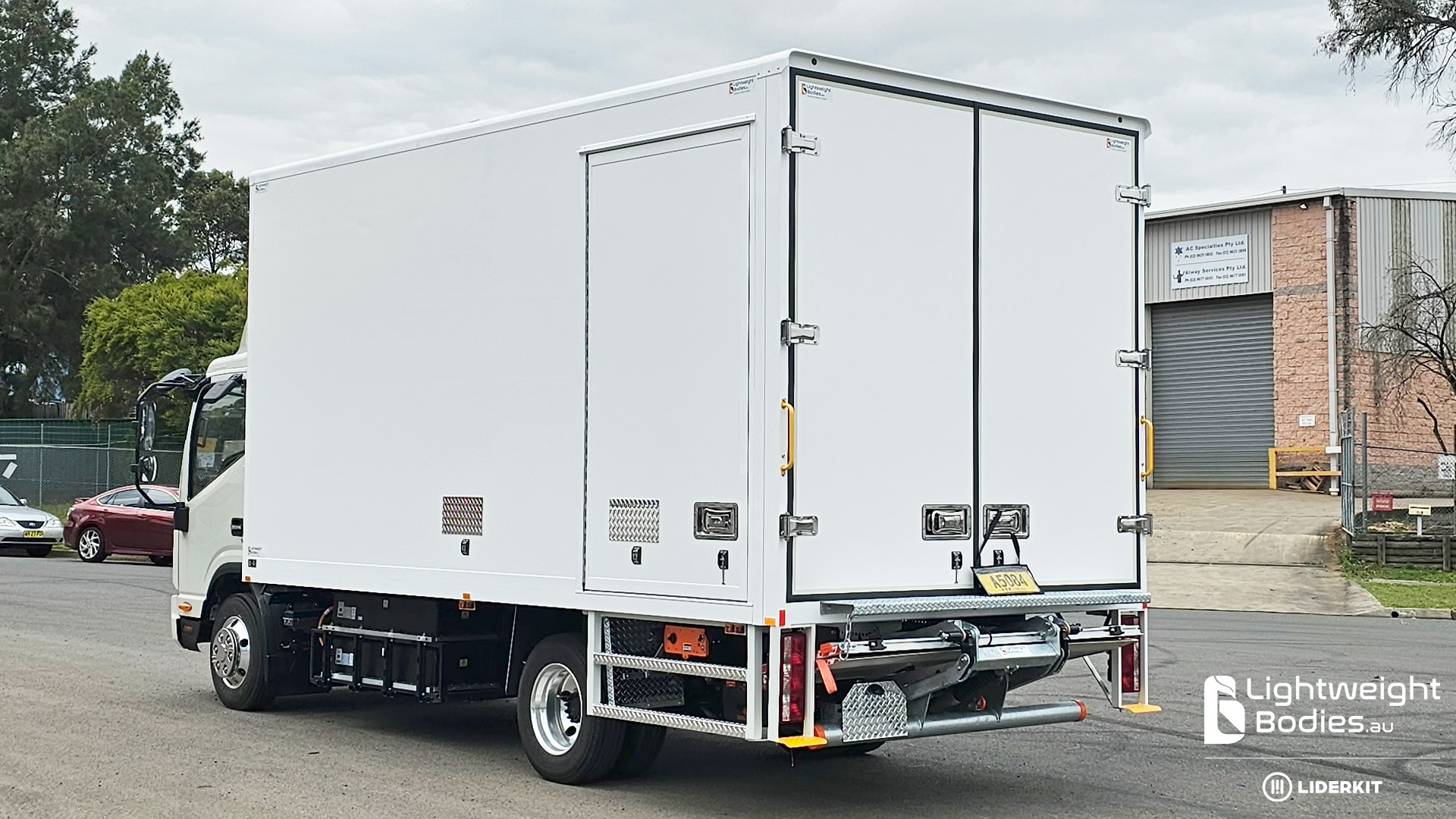

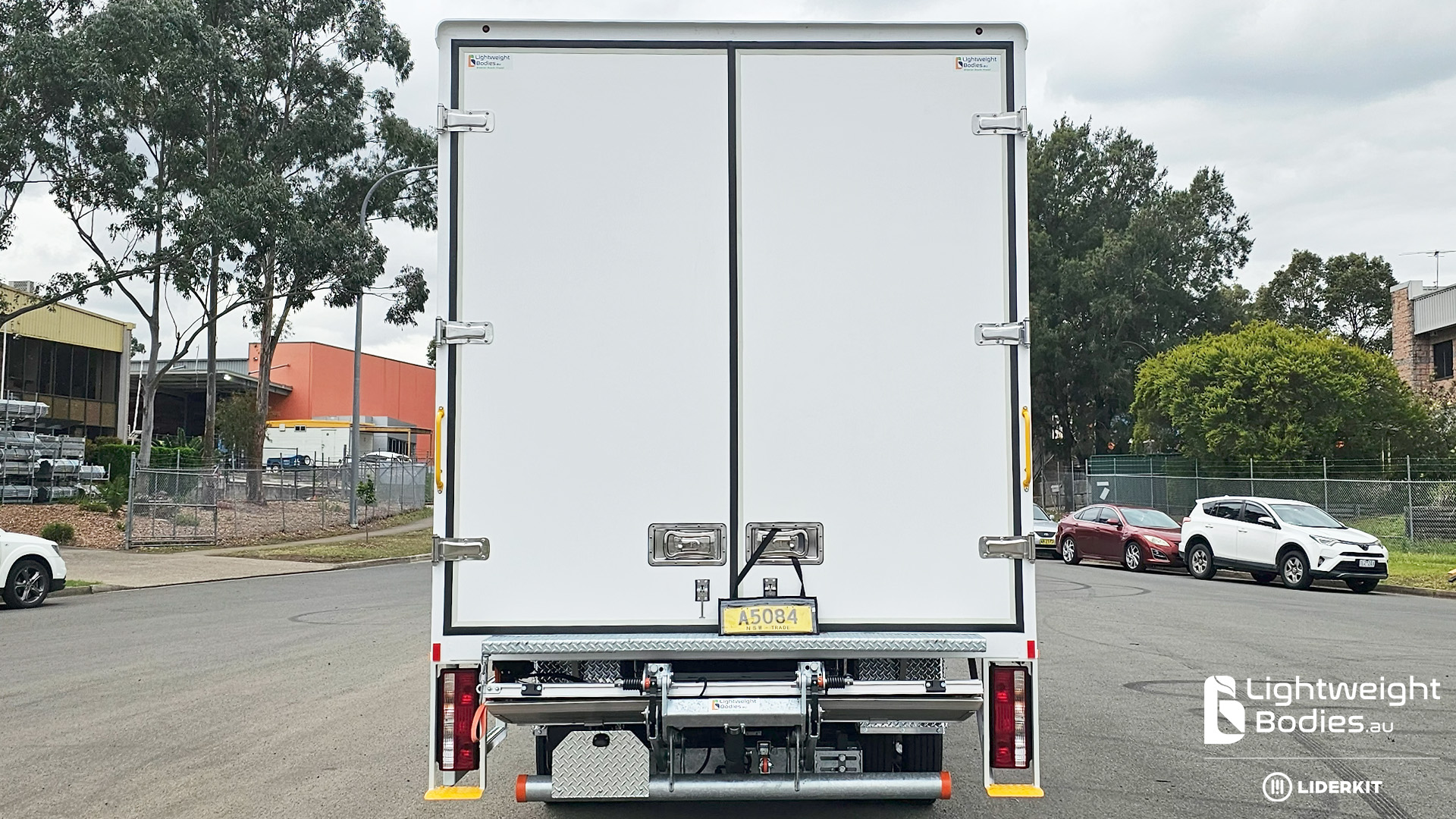

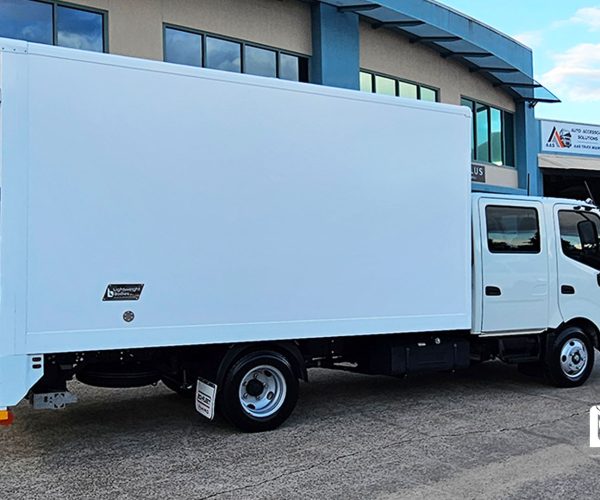

8 Pallet Pantech (Tuckaway)
5200L 2500W | 2430H (Int) 890kg
Two pallet wide, internal rubber-lined tie rails, and kick panels all round.
1250 single side door, flush hinge and lock, internal pinch seal and cam-locks.

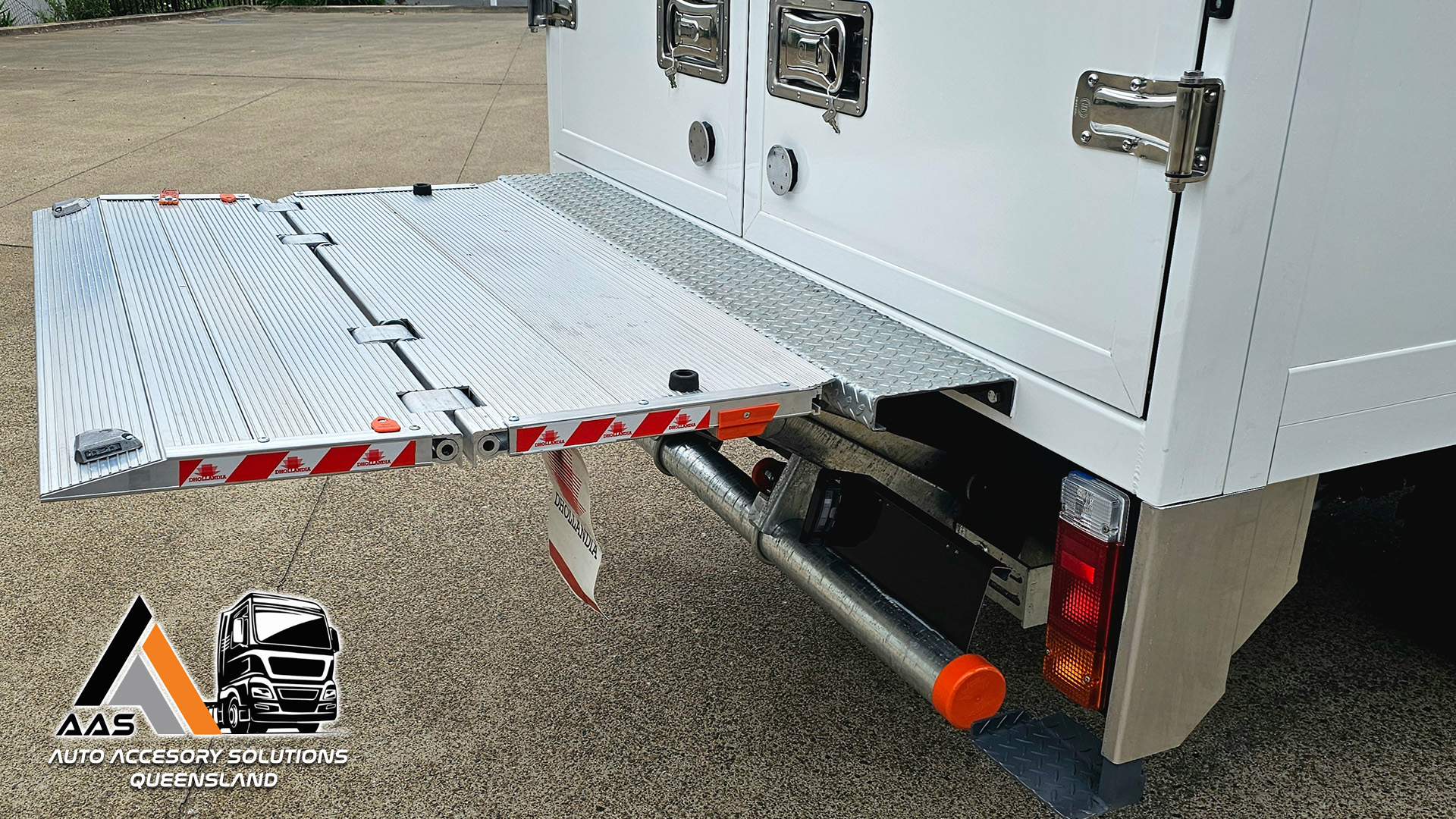

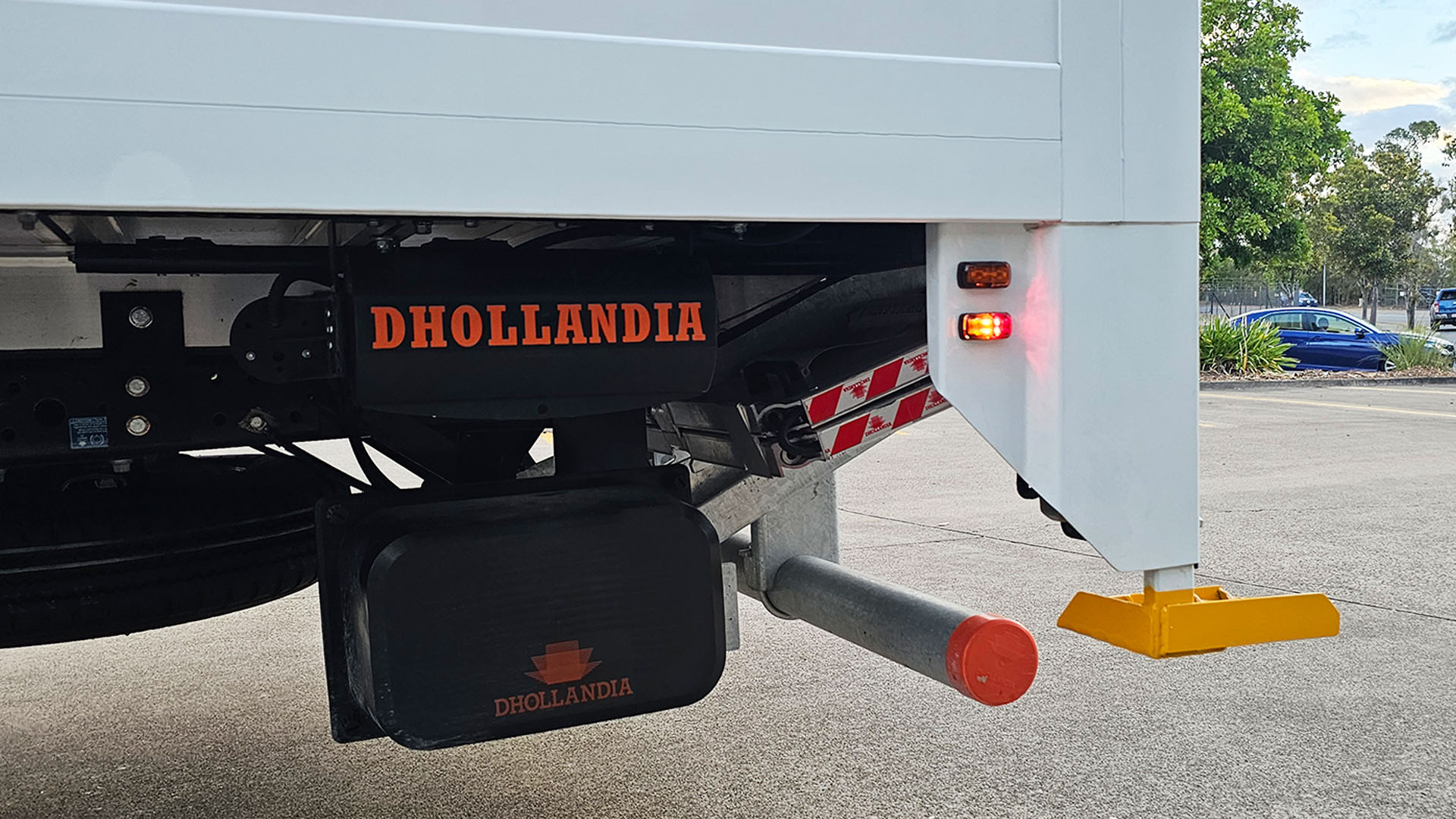

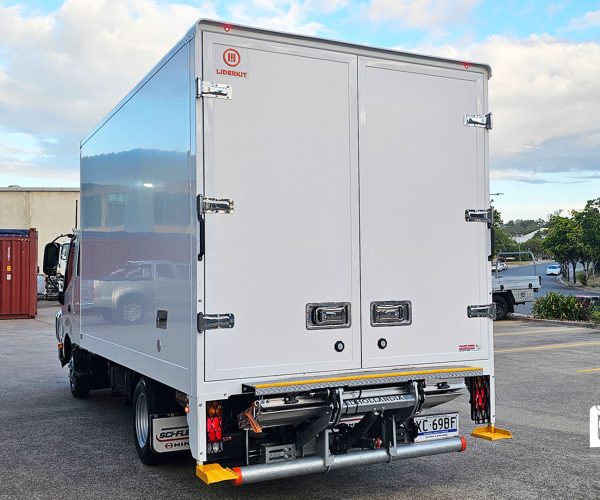

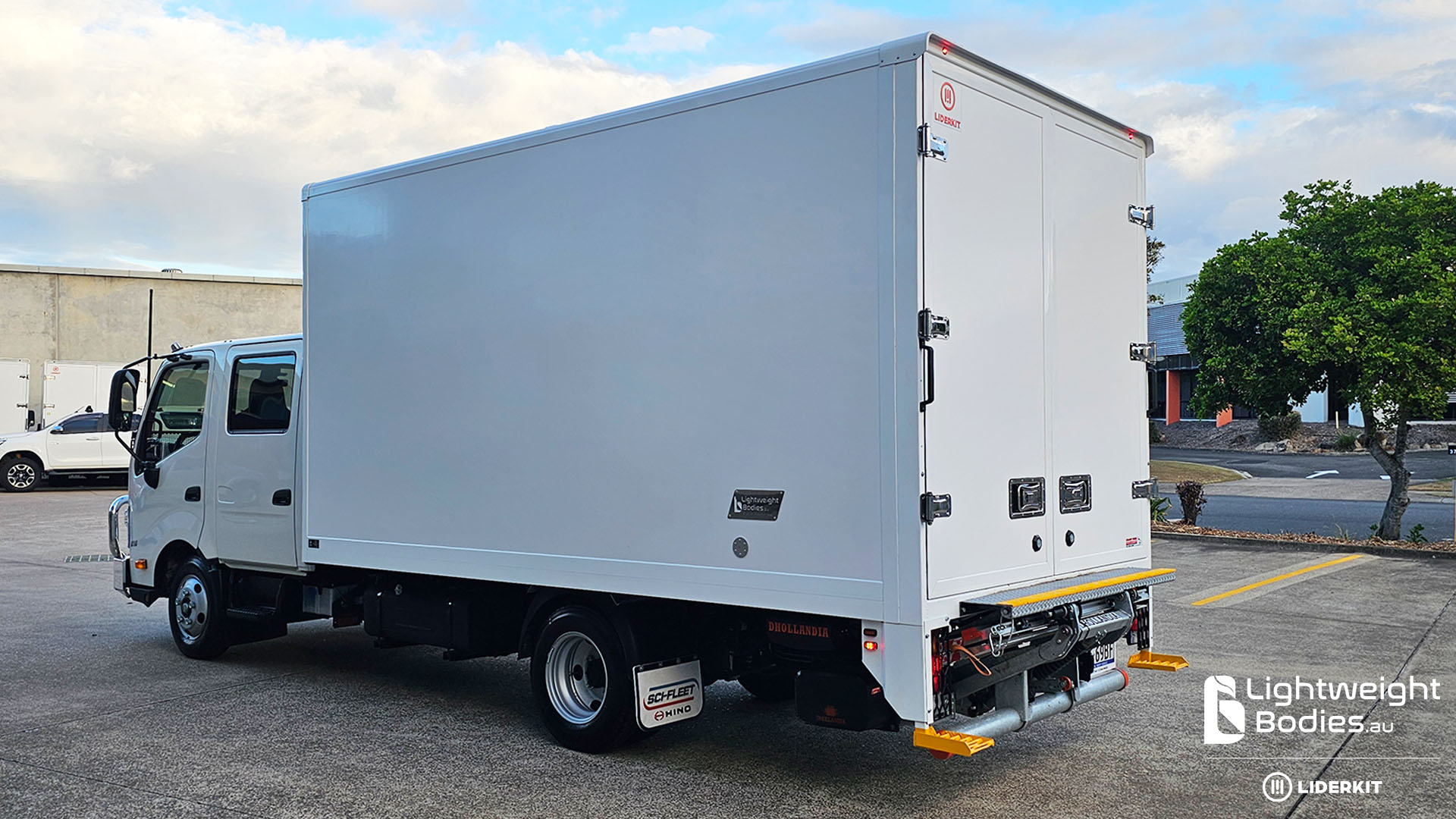

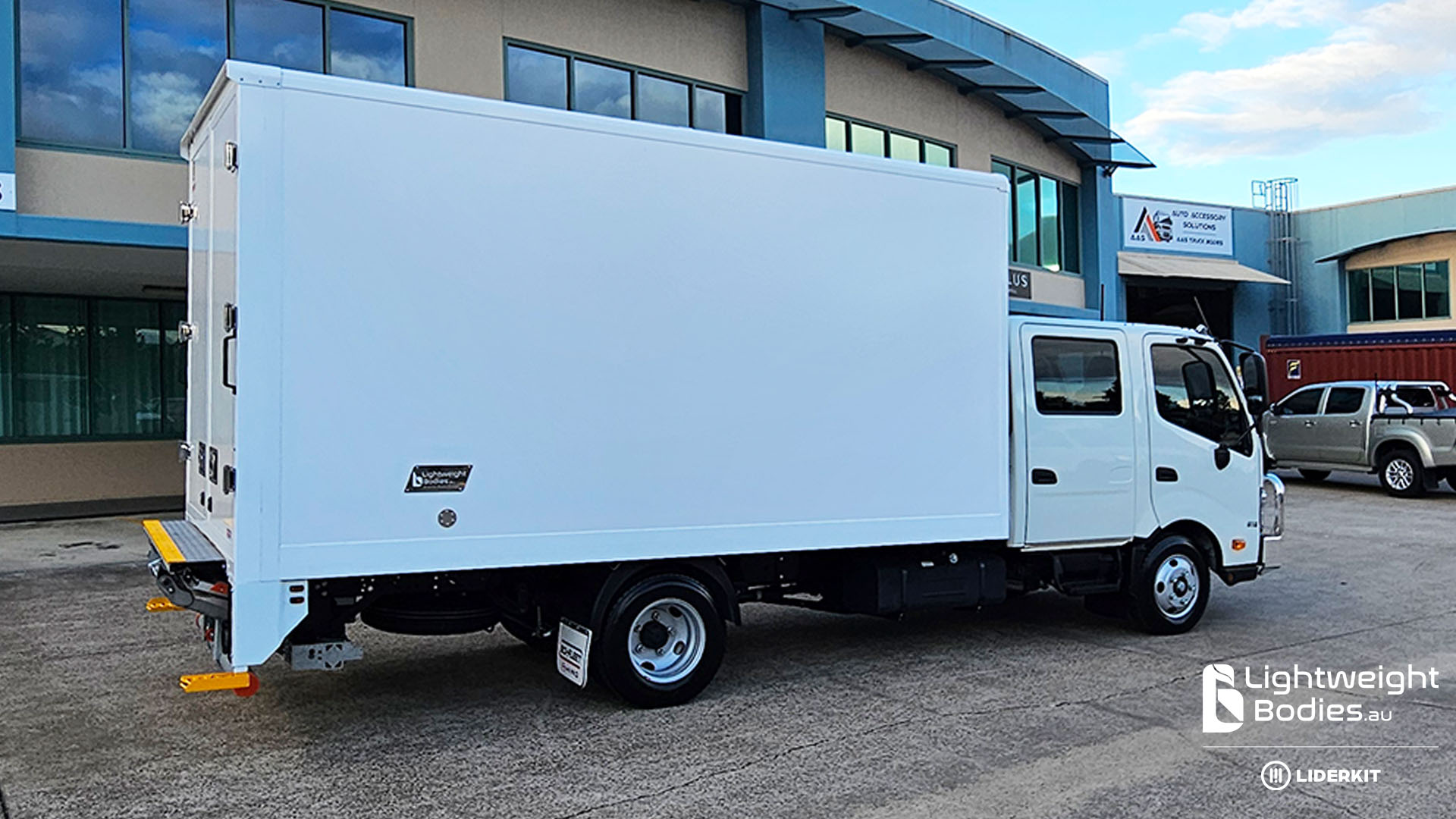

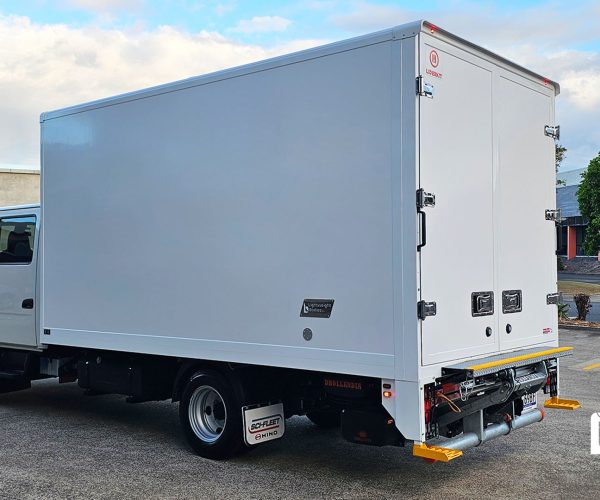

Rear barn doors, with a tuckaway 1200kg, with side light steps.
30mm insulated walls and side and rear barn doors.
Floor is a Phenolic system, highly durable, and aluminium is also available.
9000kg GVM
10 Pallet Pantech (Tuckaway)
6200L 2500W | 2430H (Int) 1100kg
Two pallet wide, internal rubber-lined tie rails, and kick panels all round.
1250 single side door, flush hinge and lock, internal pinch seal and cam-locks.
Rear barn doors, with a tuckaway 1200kg, with side light steps.
30mm insulated walls and side and rear barn doors.
Floor is a Phenolic system, highly durable, and aluminium is also available.
9000kg GVM

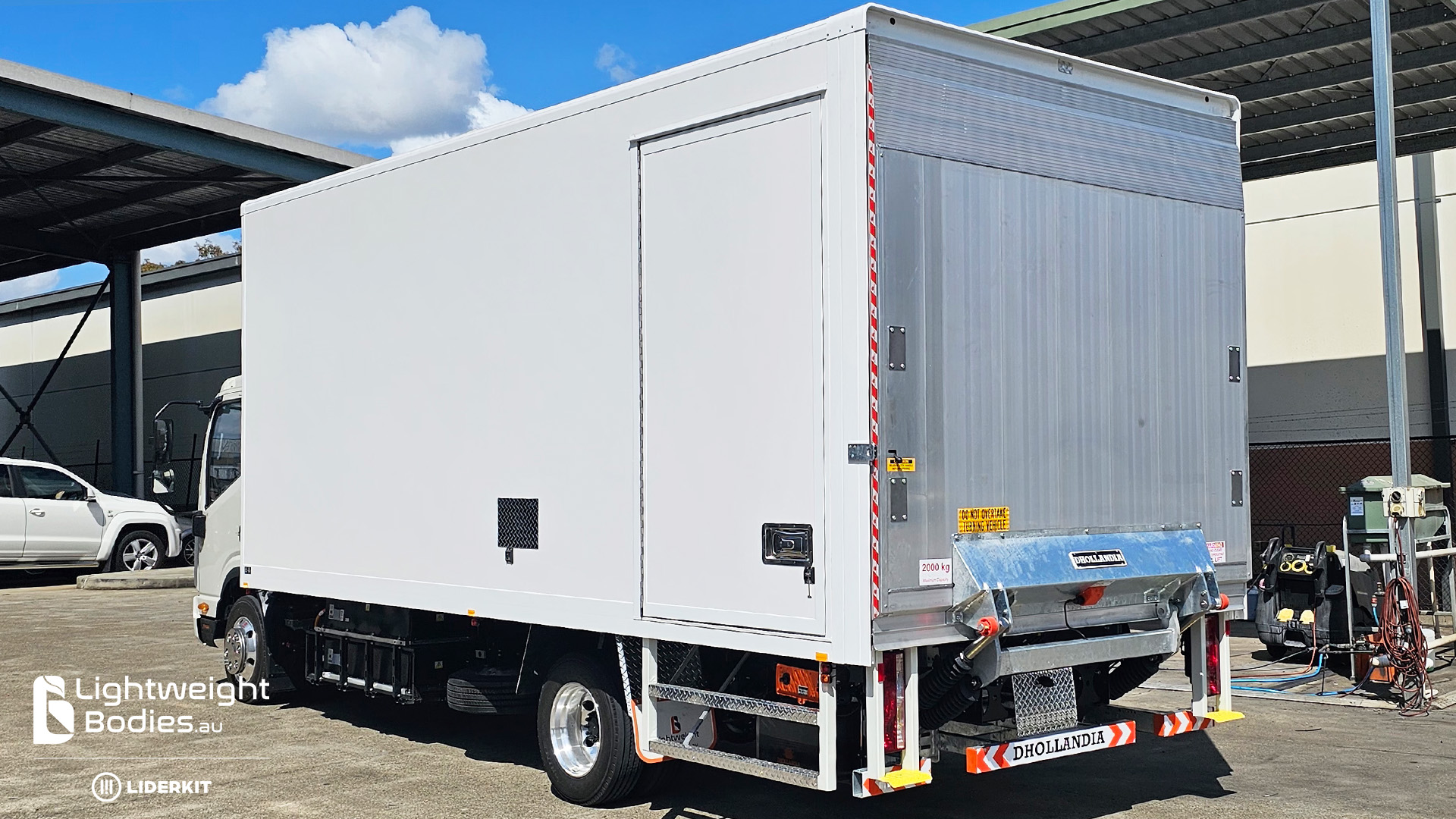

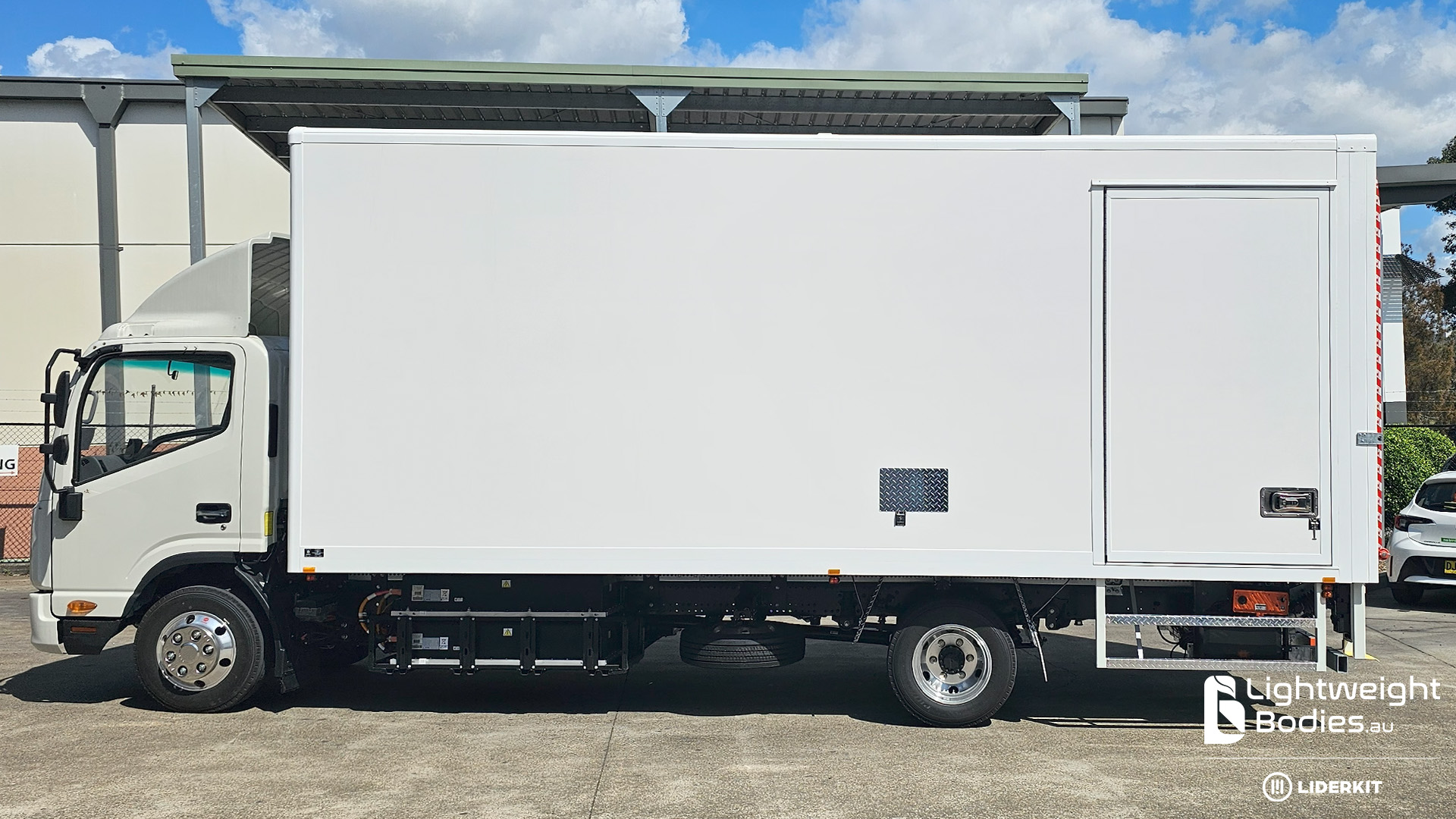

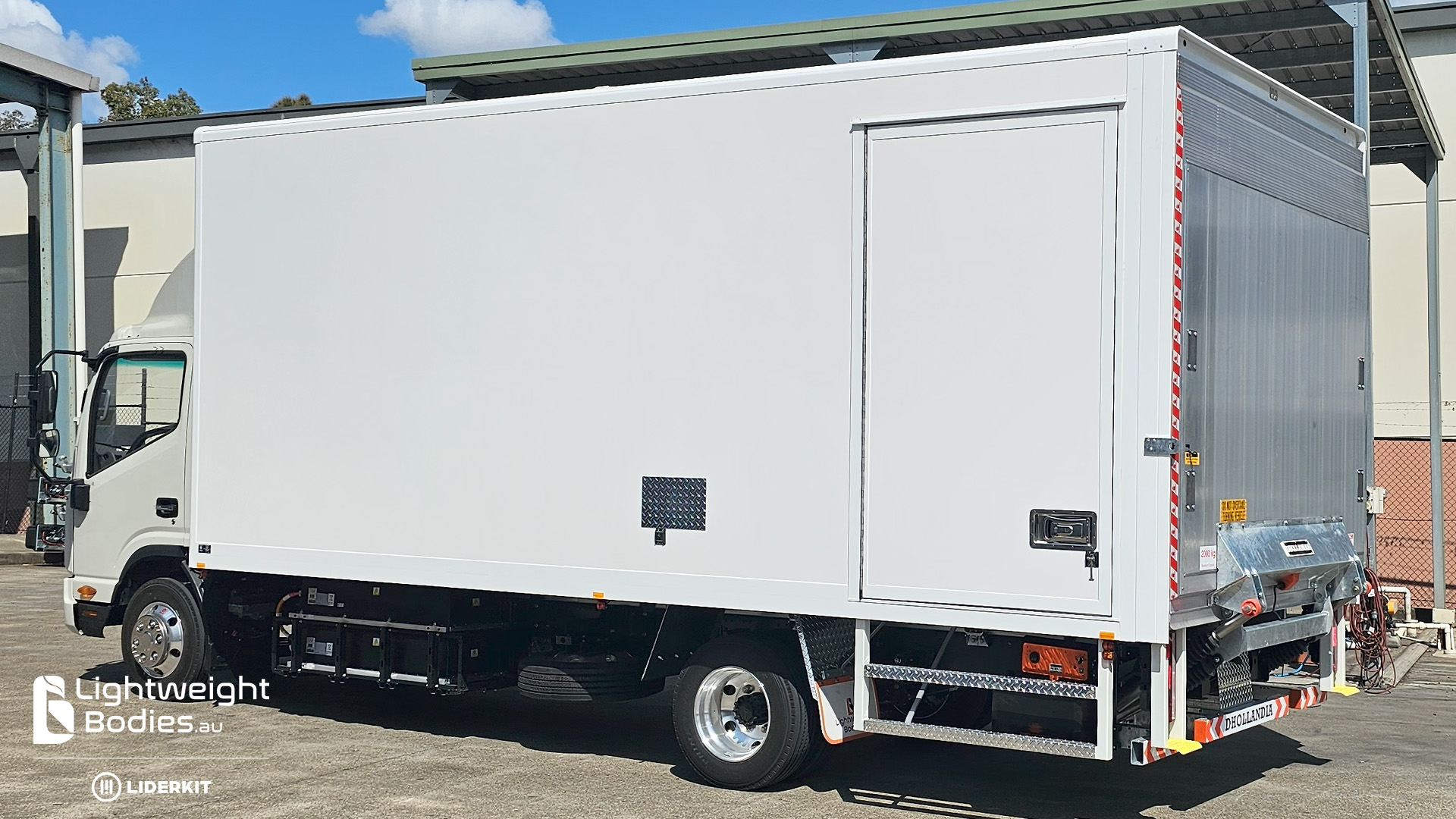

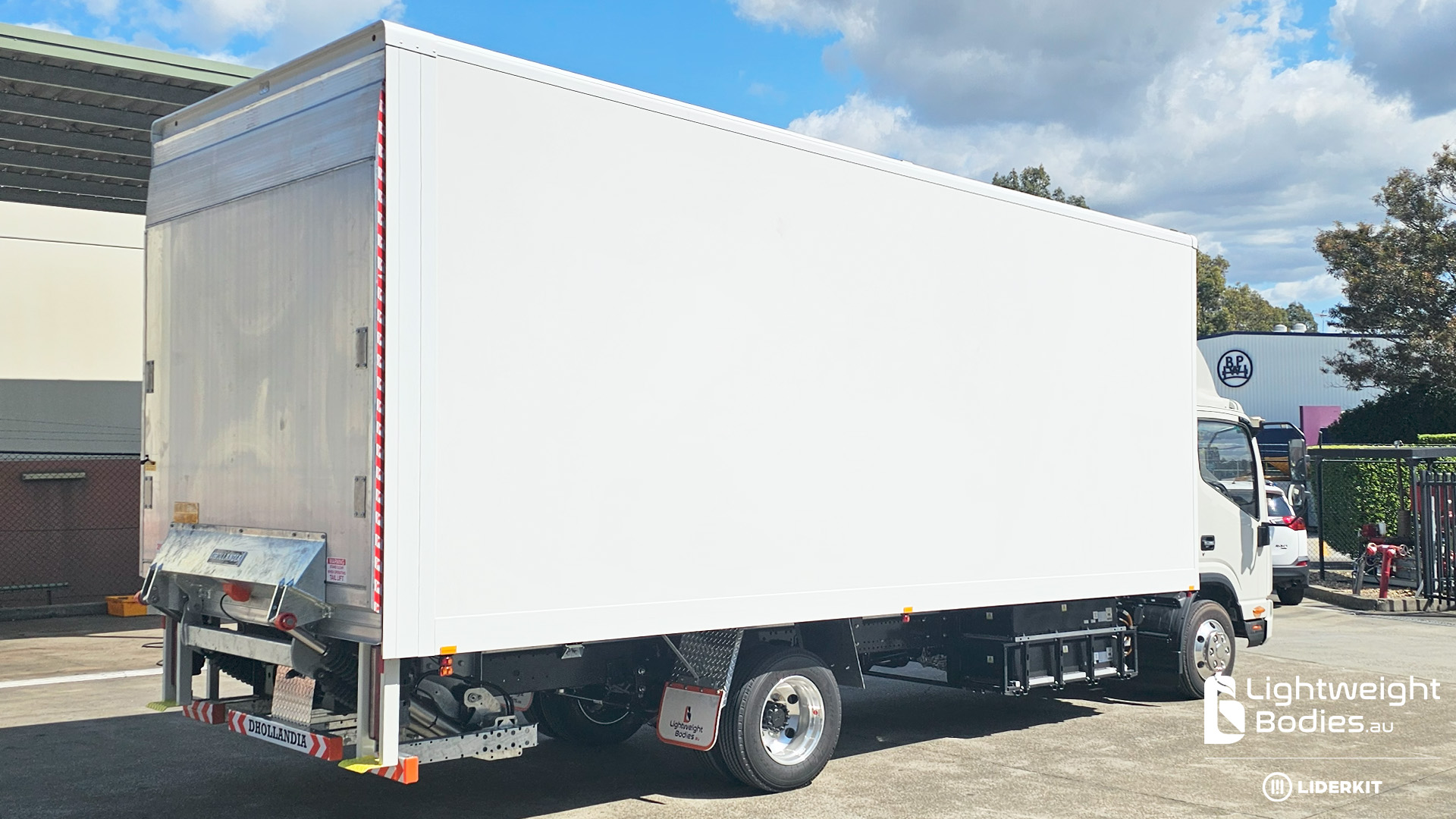

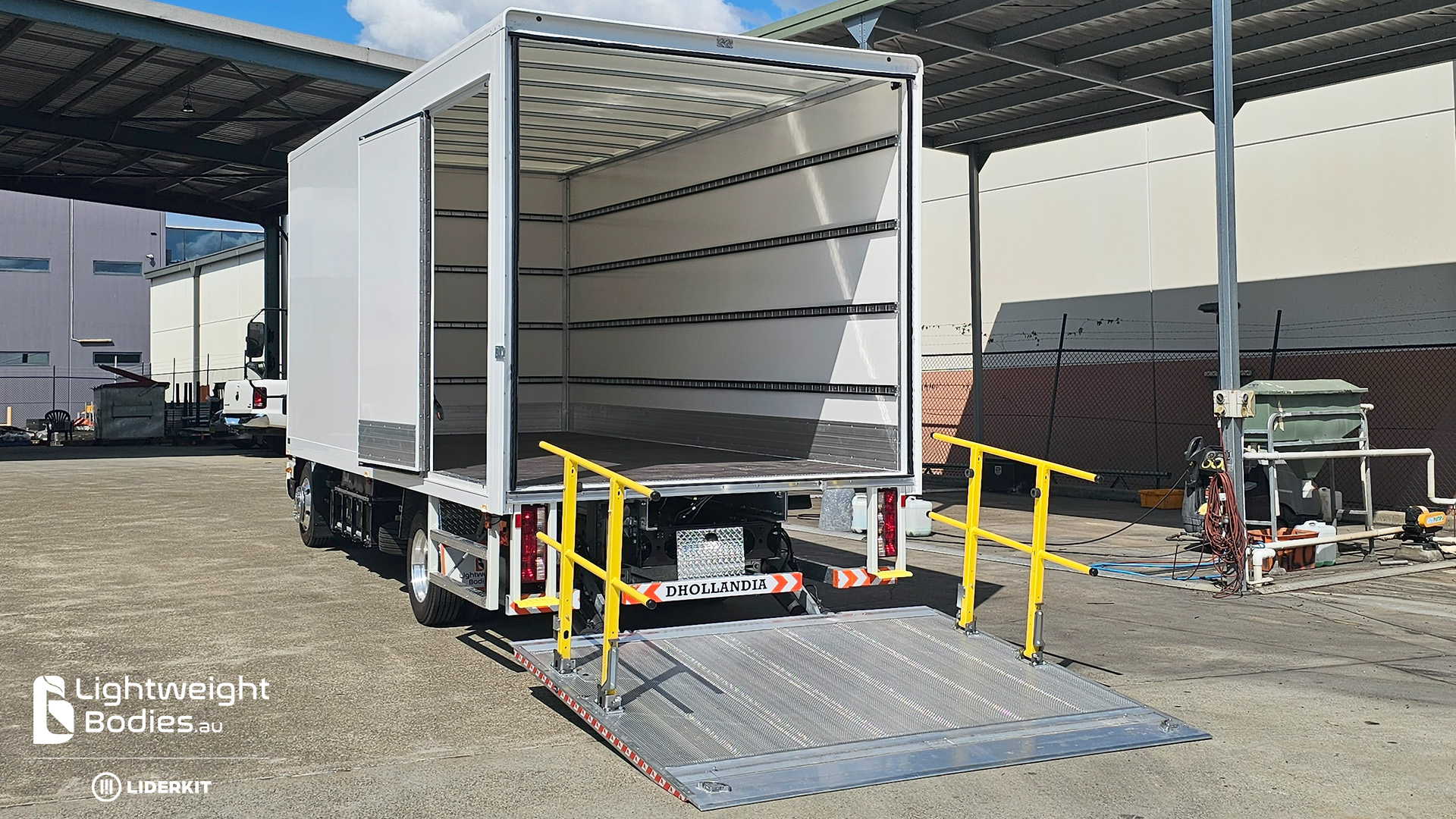

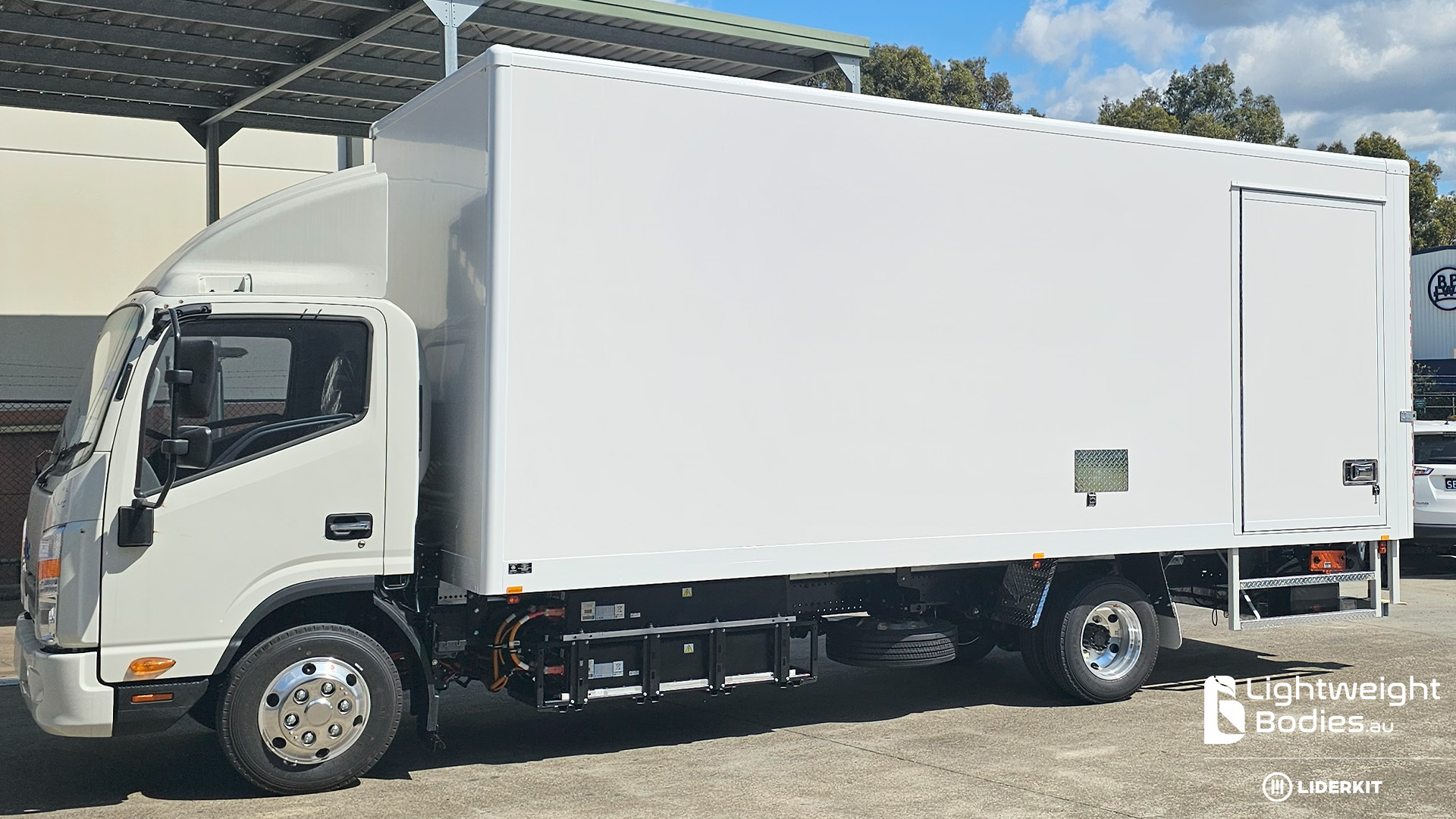

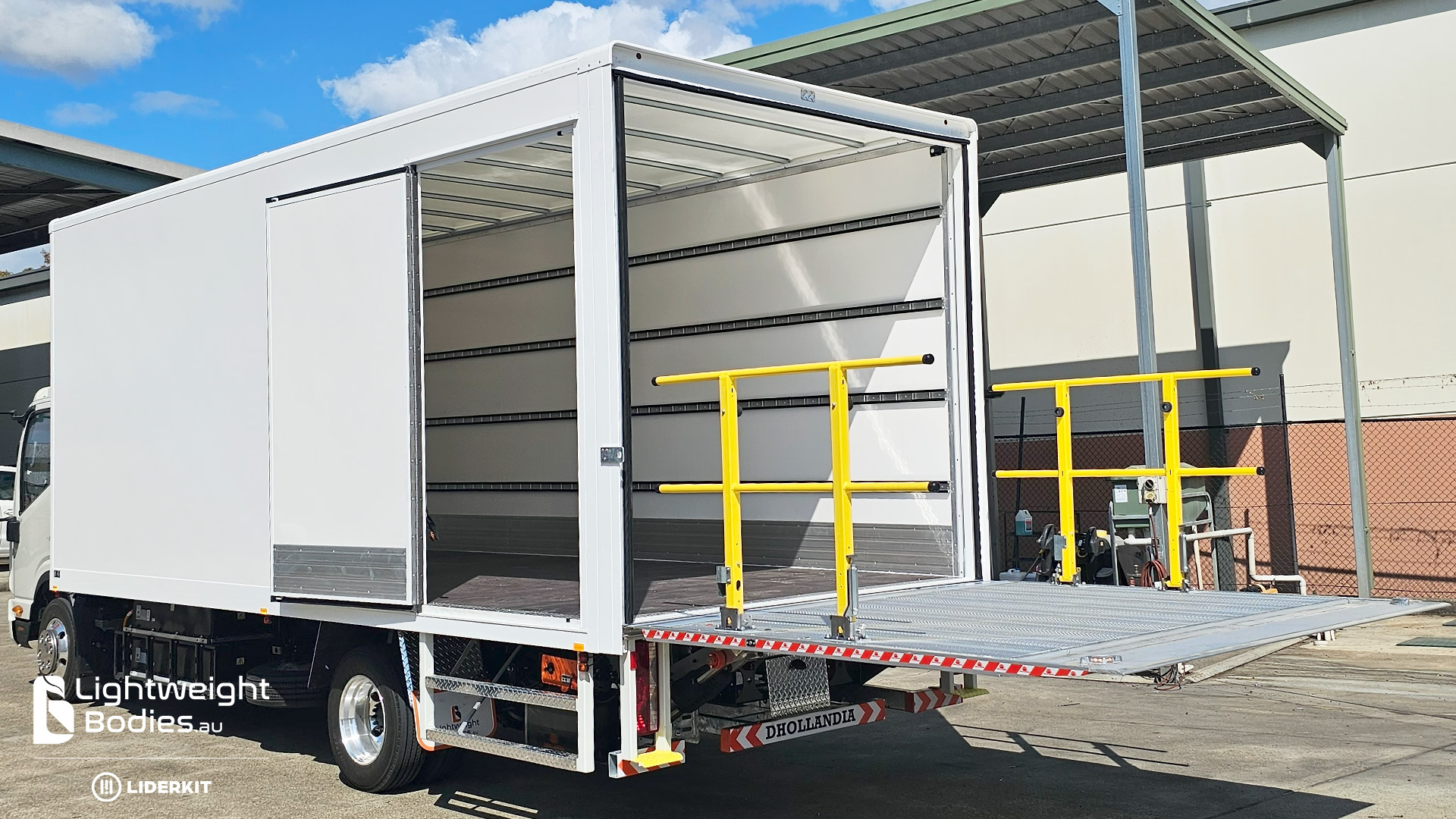

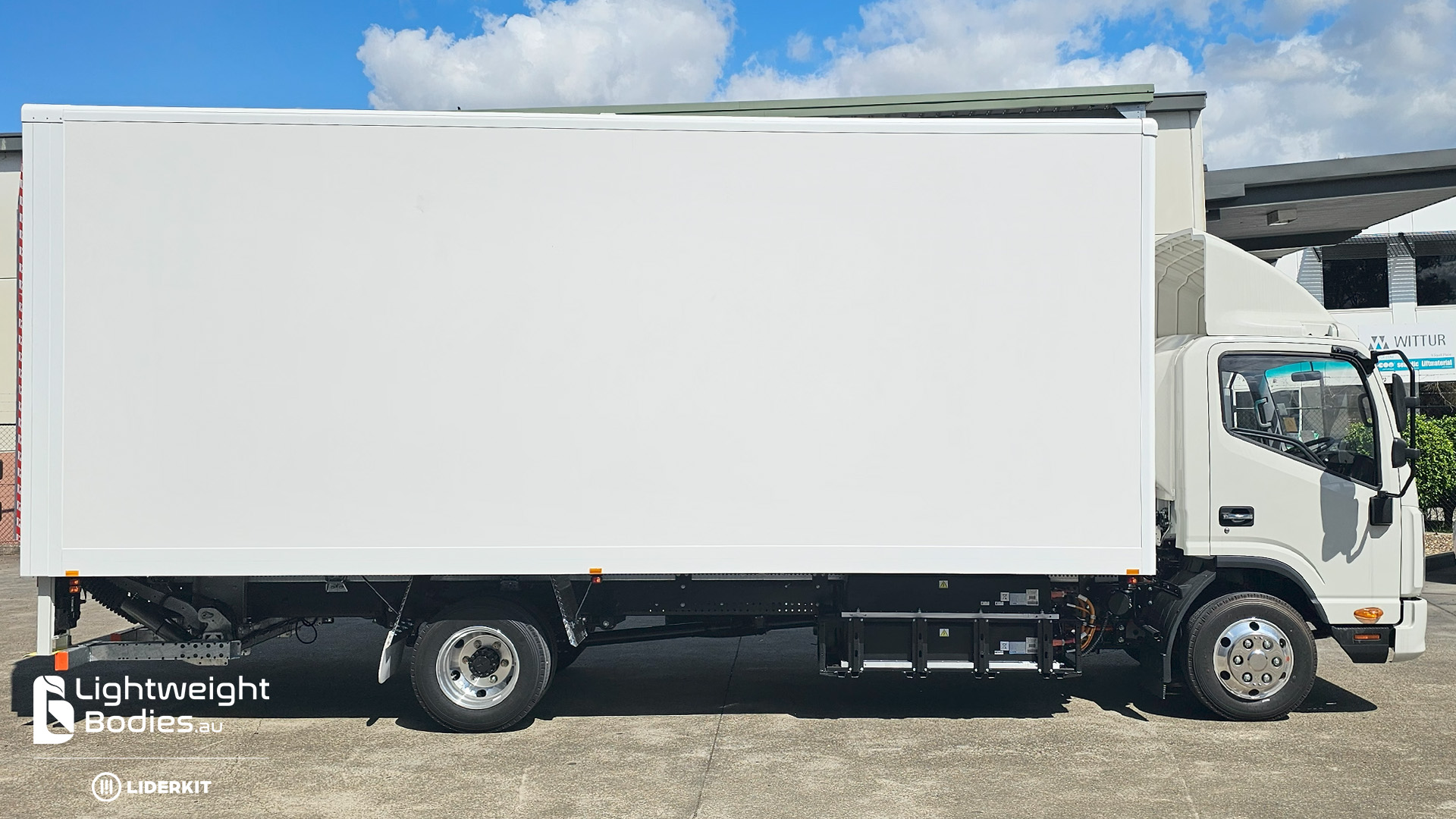

10 Pallet Pantech (Cantilever)
6200L 2500W | 2430H (Int) 1010kg
Two pallet wide, internal rubber-lined tie rails, and kick panels all round.
1250 single side door, flush hinge and lock, internal pinch seal and cam-locks.

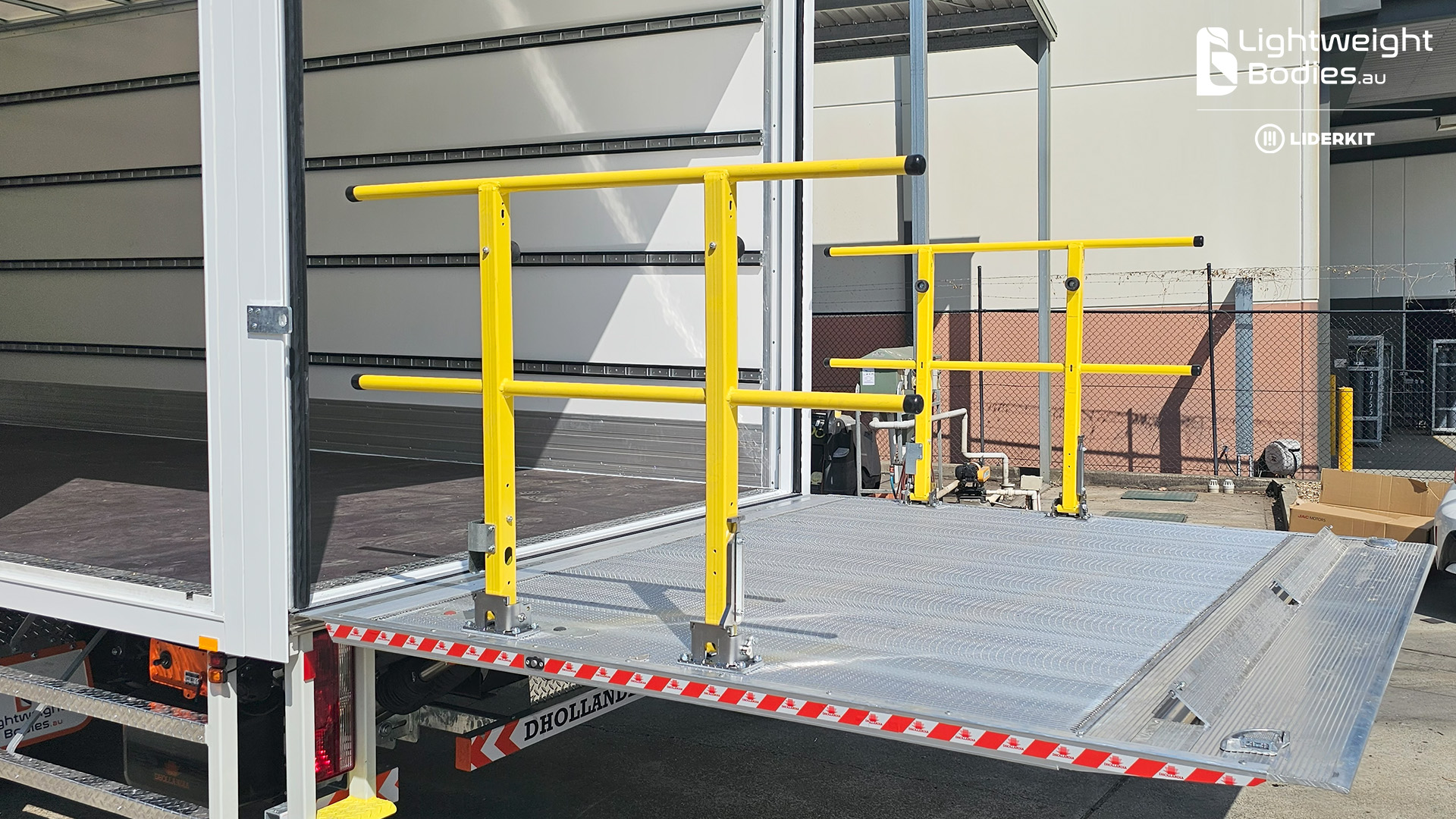

Full rear cantilever 2000kg lifter, seals as rear door, with safety rails.
30mm insulated walls and a single door on the side.
Floor is a Phenolic system, highly durable, and aluminium is also available.
9000kg GVM
10 Pallet Pantech (Cantilever)
6200L 2500W | 2430H (Int) 1010kg
Two pallet wide, internal rubber-lined tie rails, and kick panels all round.
1250 single side door, flush hinge and lock, internal pinch seal and cam-locks.
Full rear cantilever 2000kg lifter, seals as rear door, with safety rails.
30mm insulated walls and a single door on the side.
16000kg GVM

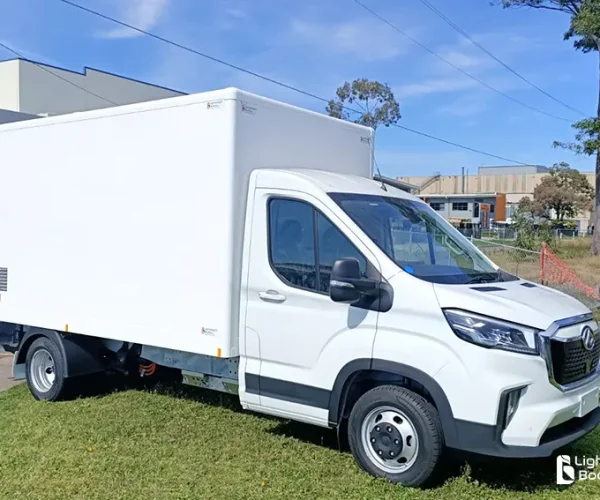

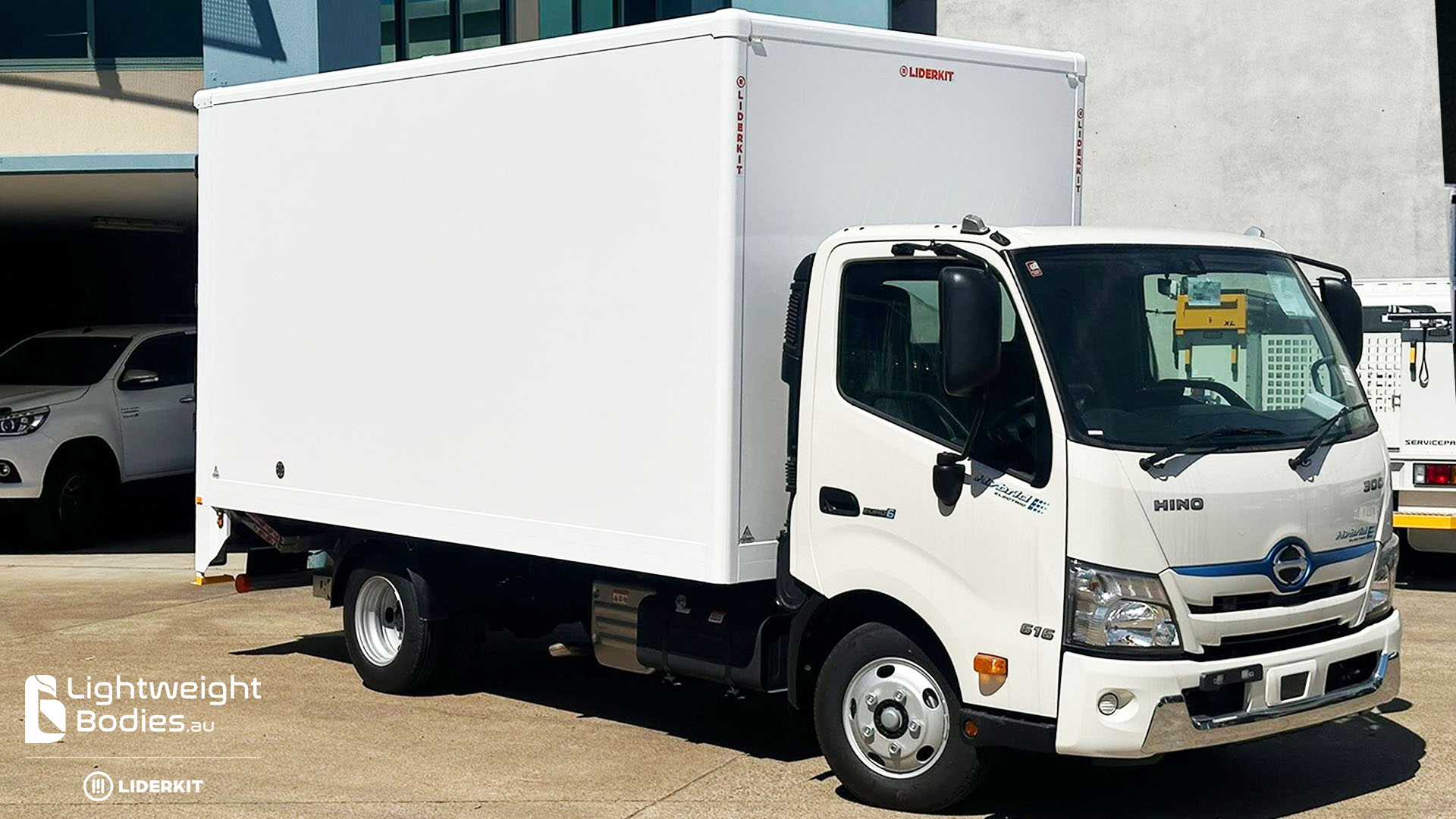

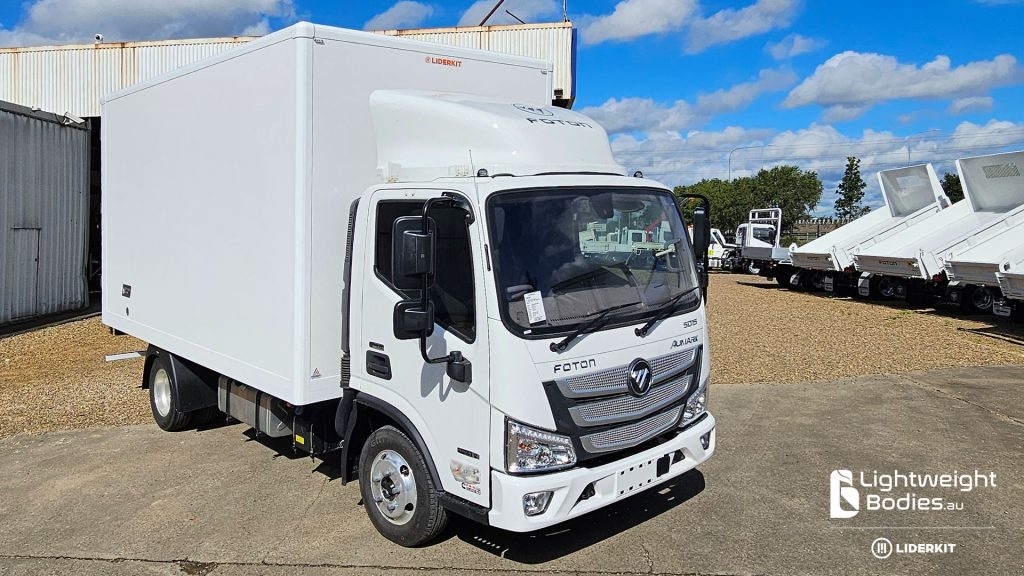

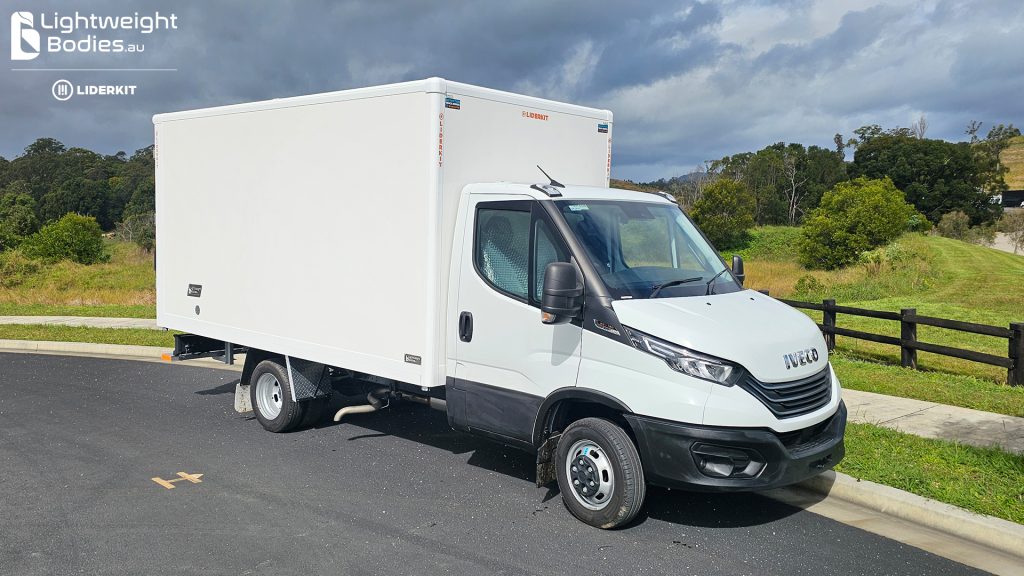

Car Licence - Pantech Body
Deliver More. Burn Less.
The Lightest Insulated Pantech in Australia
Why haul extra weight when you can haul more freight?
580 kg Pantech body delivers a payload capacity of up to 1,530 kg — unmatched efficiency for urban fleets. Fits any cab chassis.
4300L 2200W 2100H (Int), 19.5m cube.
30mm insulated roof, walls, and rear barn doors. It’s a very cool box.
The new standard for last-mile delivery.
