Car License - 4500kg GVM
PANTECH (Dry Freight)
Dimensions - 4300L 2200W 2100H (Int)
LIDERfoam® 30mm Insulated Interlocking System
Built tough and light with a double-skin fibreglass polyester outer, this 30mm insulated sandwich panel system provides outstanding thermal performance and impact protection.
🛠 Seamless Interlocking Design
Roof, walls, and floor fully interlock using the proven LIDERKIT® System, ensuring strength, accuracy, and fast assembly.
Body Configuration
• LIDERfoam® Insulated Wall Panels – Roof, front, sides, and rear doors
• Lightweight and temperature stabilising
• 270mm high aluminium wall kick plates (including rear of the doors)
• (3) rows of aluminium E-Track load restraints
• Auto-sensor LED strip lighting
• (2) Rear barn doors with internal cam locks & flush stainless steel latches
• (3) Heavy-duty hinges, magnetic door holders
• Phenolic dry freight floor
• Ultra-light aluminium subframe interlocked into all panels
• Tare Weight: ~585kg
• Body Colour: Traffic White all over
• QLD > Fitment available, Acacia Ridge (Click Here)

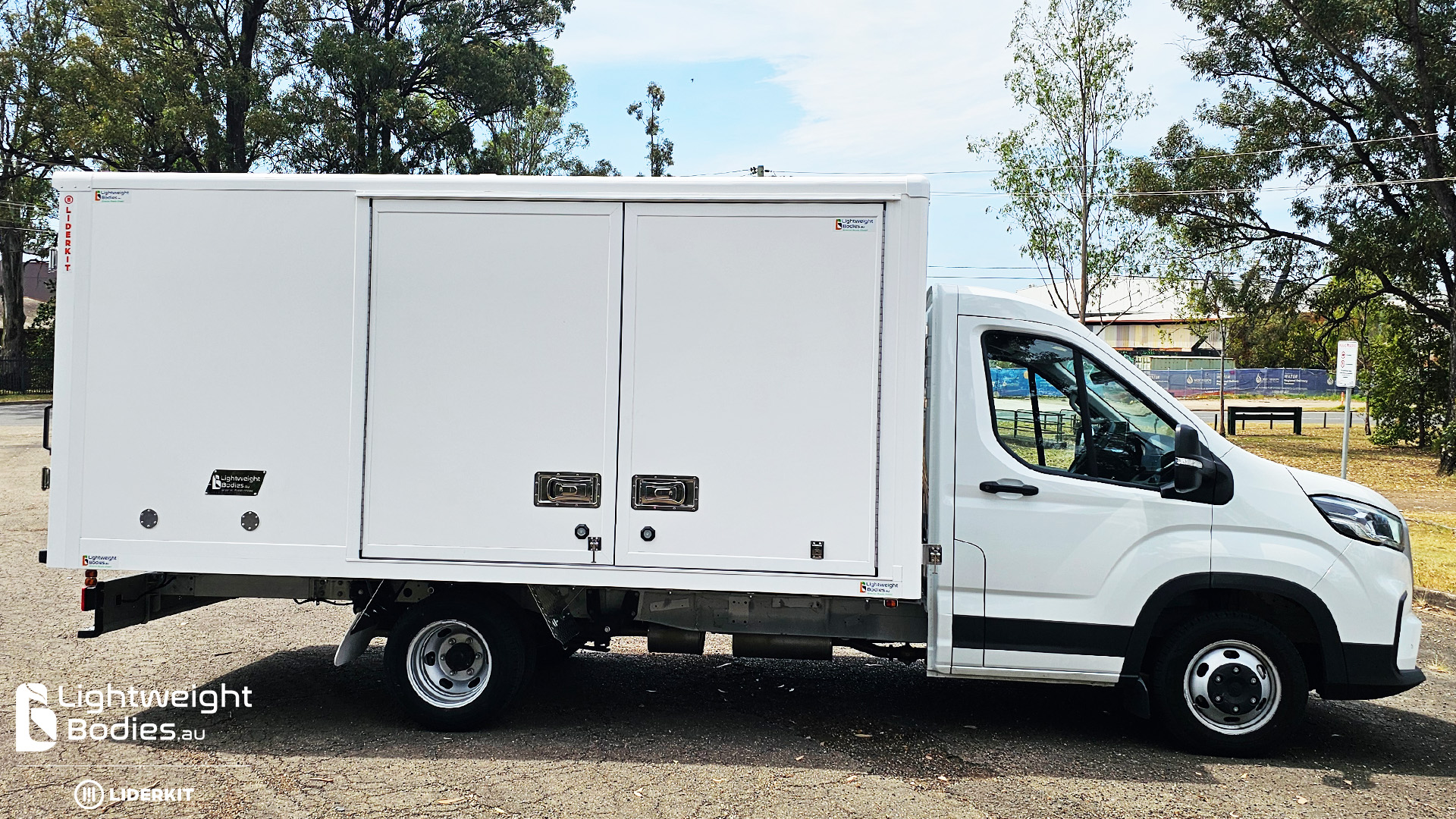

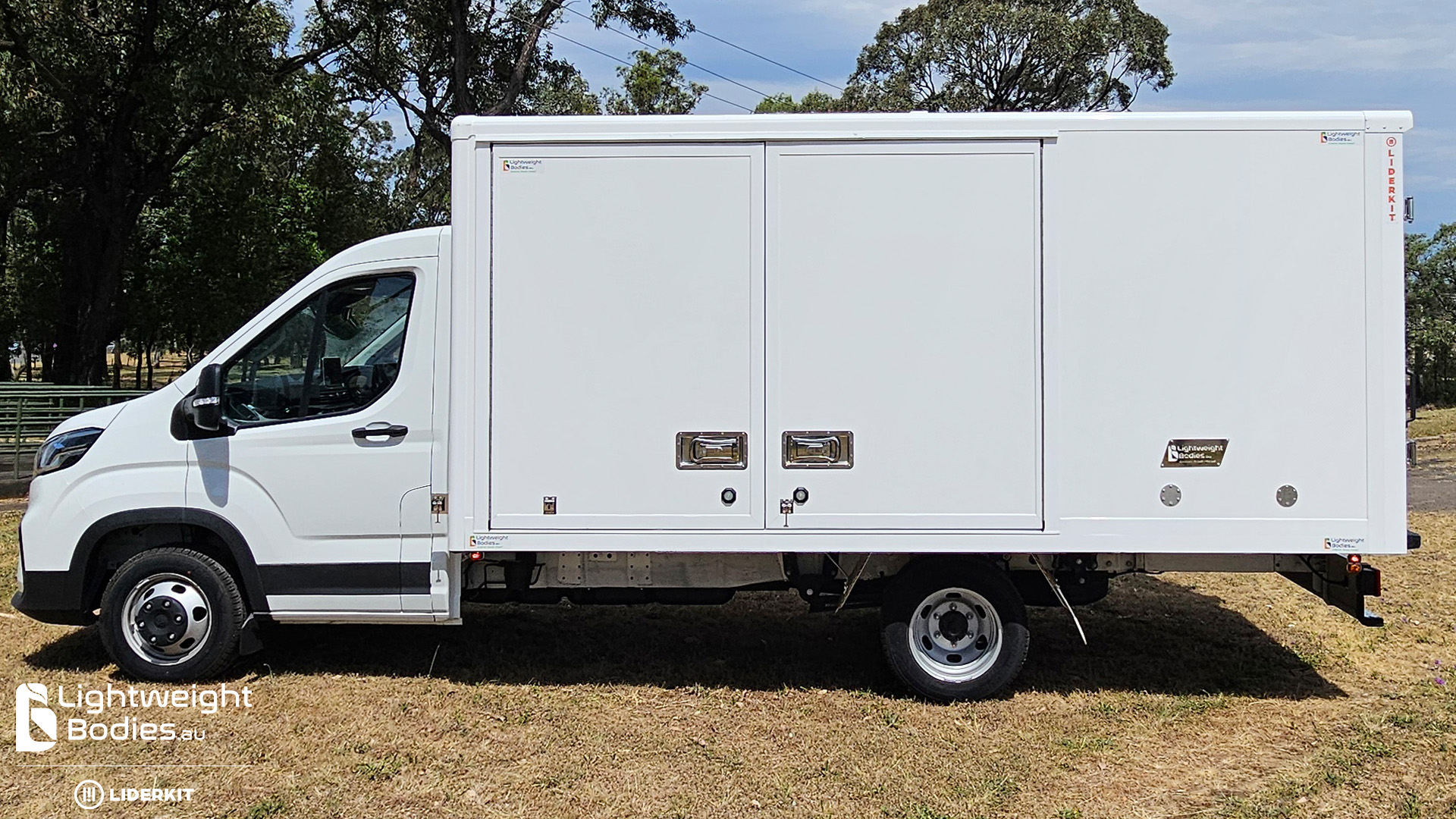

Car License - 4500kg GVM
Service Body - 6 Pallet | 6 Doors
Dimensions - 4300L 2495W 1860H (Int)
LIDERfoam® 30mm Insulated Interlocking System
Built tough and light with a double-skin fibreglass polyester outer, this 30mm insulated sandwich panel system provides outstanding thermal performance and impact protection.
🛠 Seamless Interlocking Design
Roof, walls, and floor fully interlock using the proven LIDERKIT® System, ensuring strength, accuracy, and fast assembly.
Body Configuration
• LIDERfoam® Insulated Wall Panels – Roof, front, sides, and rear doors
• Lightweight and temperature stabilising
• 270mm high aluminium wall kick plates (including rear of the doors)
• (3) rows of aluminium E-Track load restraints
• Auto-sensor LED strip lighting
• (4) Side barn doors, (2) each side with a 2500 opening
• (2) Rear barn doors with internal cam locks & flush stainless steel locks
• (3) Heavy-duty hinges, magnetic door holders
• Aluminium barleycorn floor
• Ultra-light aluminium subframe interlocked into all panels
• Body Weight: ~798kg
• Body Colour: Traffic White all over
• NSW > Fitment Available, St Marys.
