Smarter Lighter Further - When Efficiency Matters

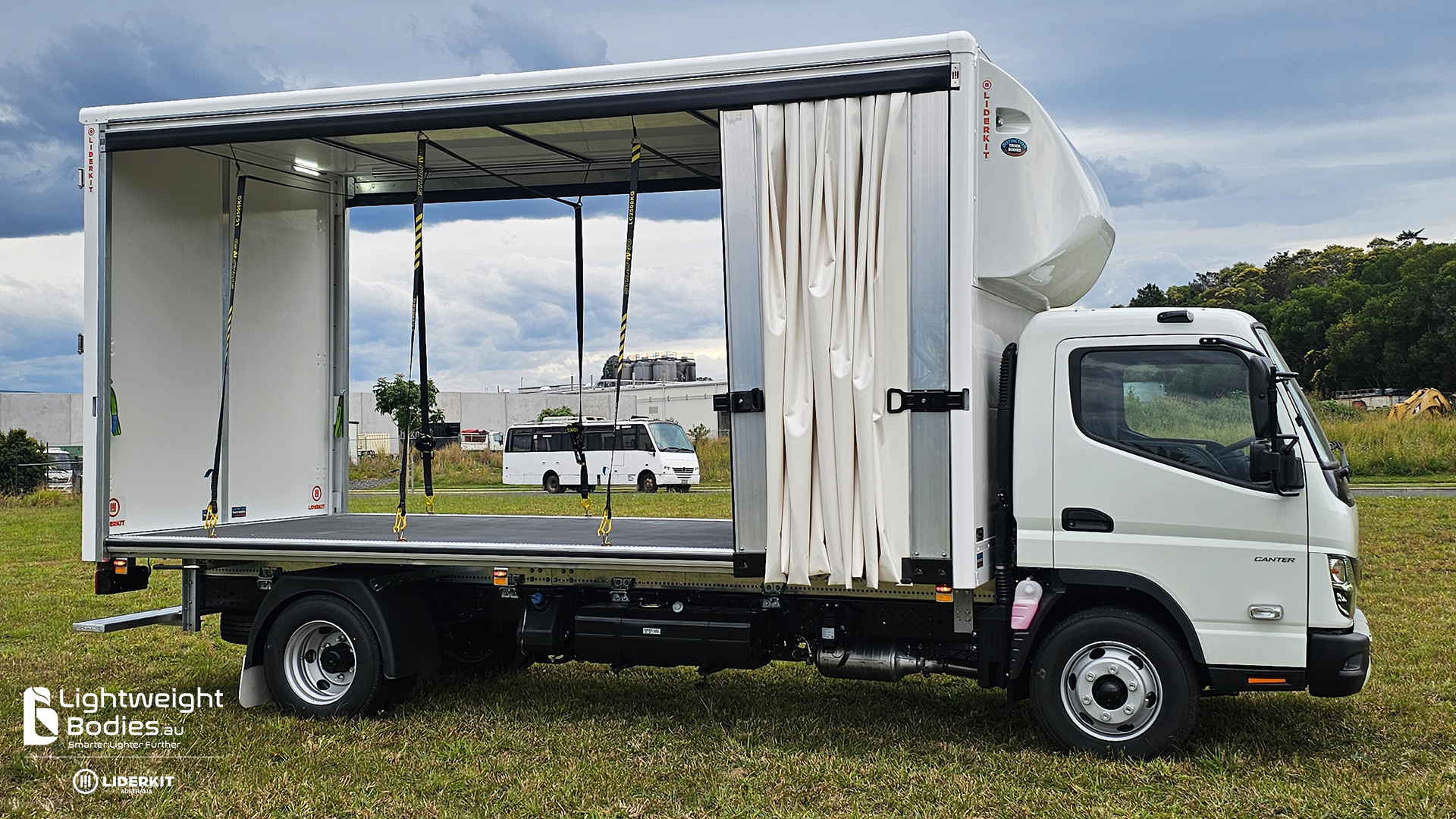

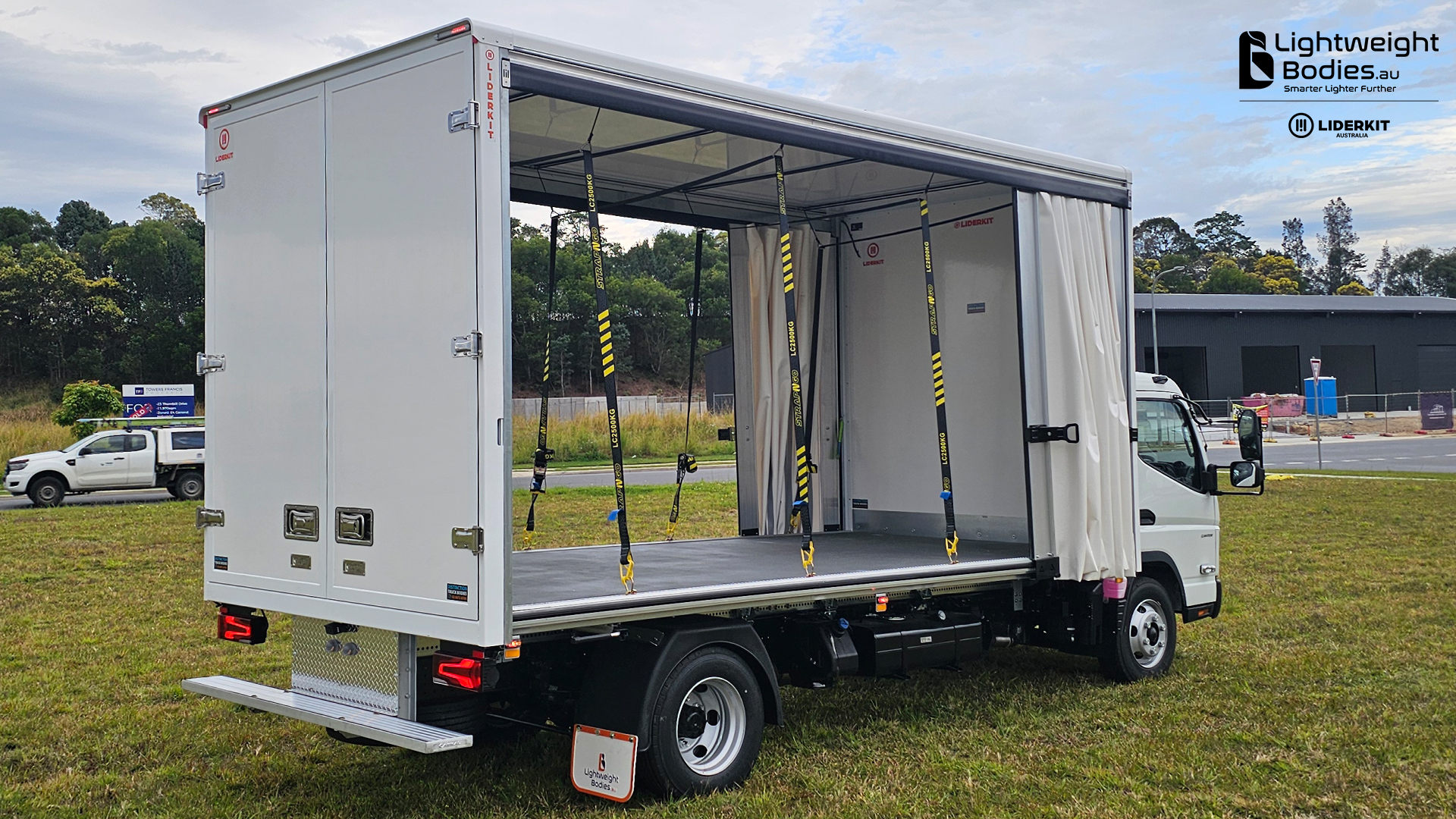

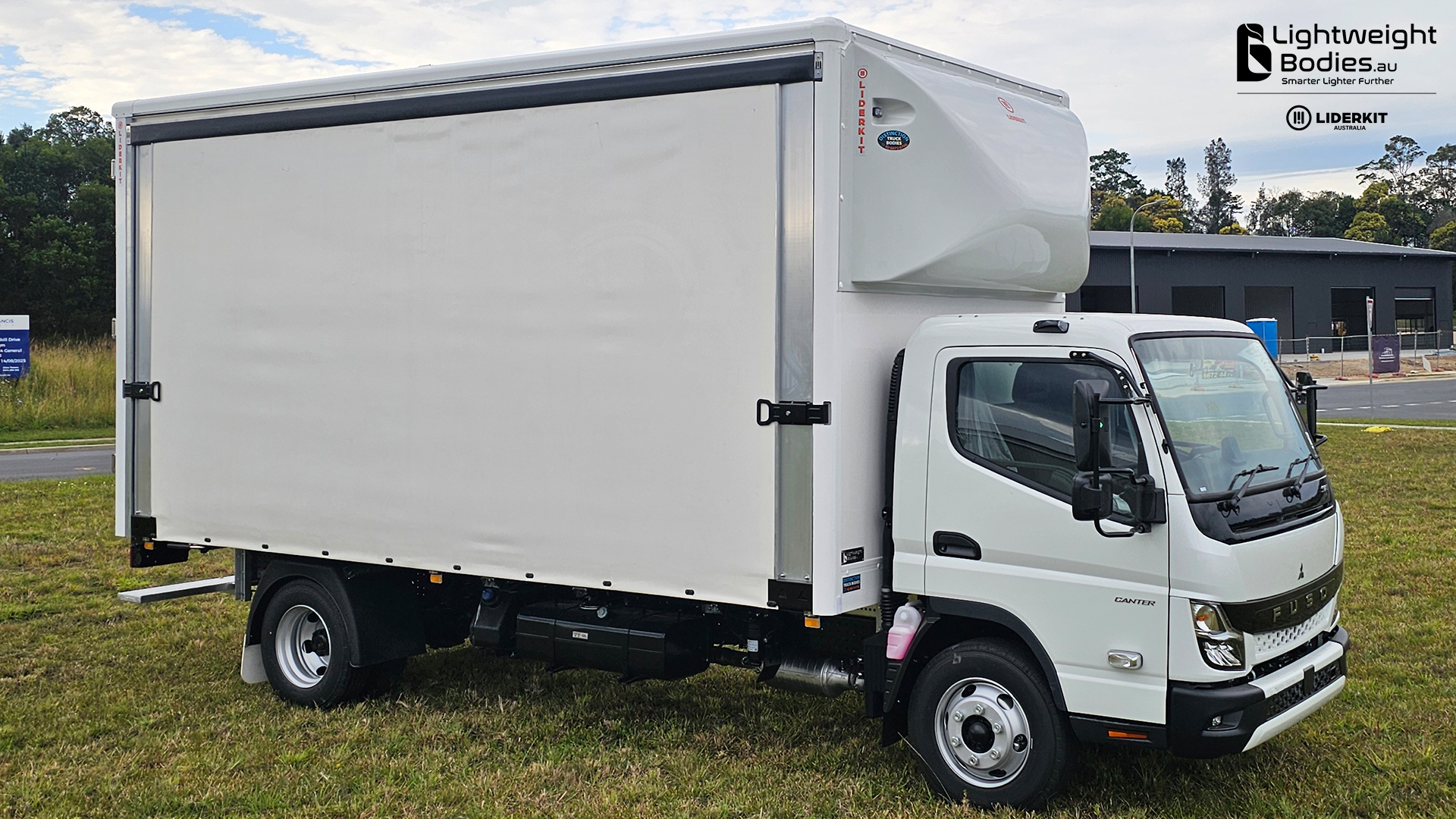

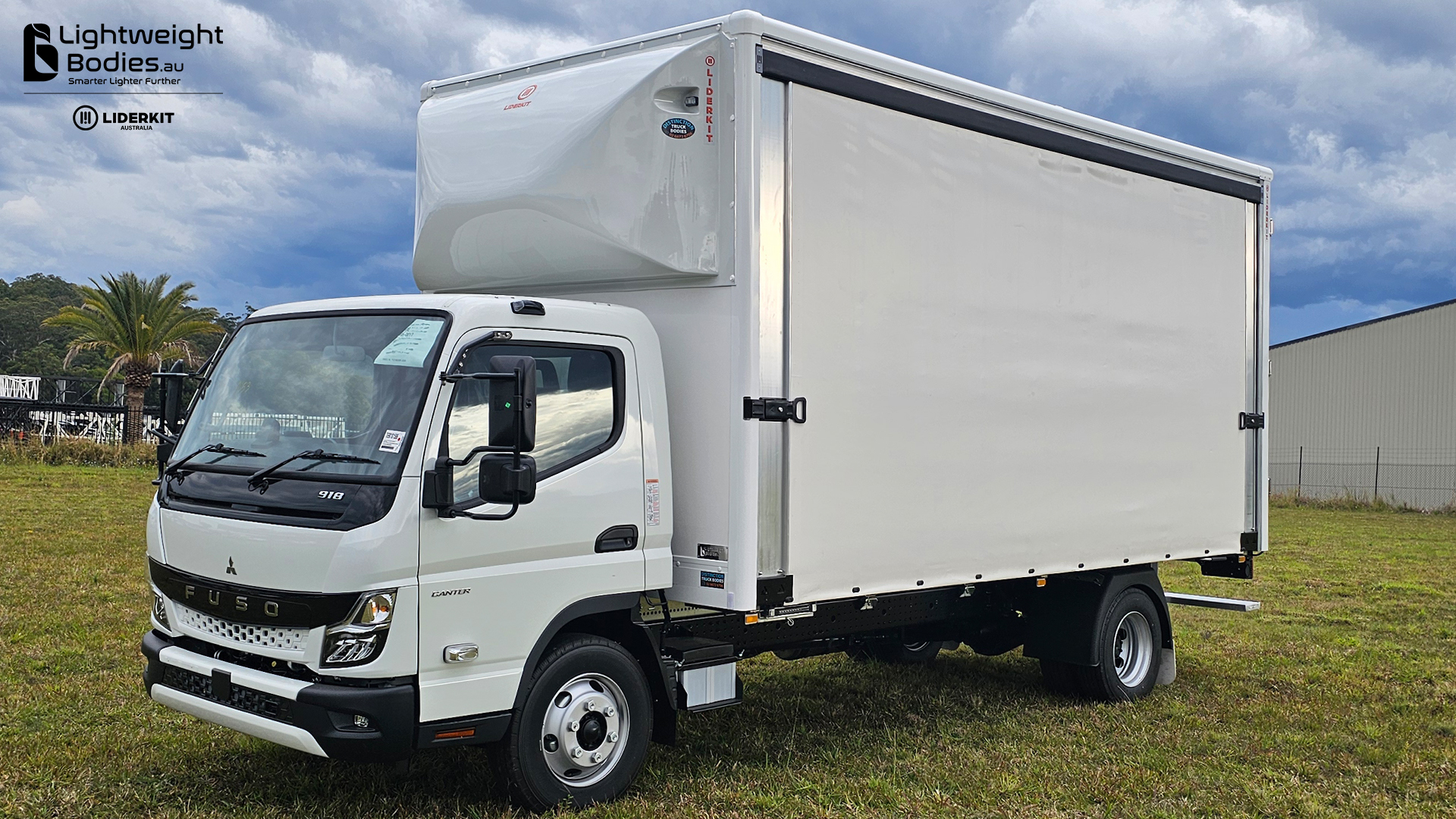

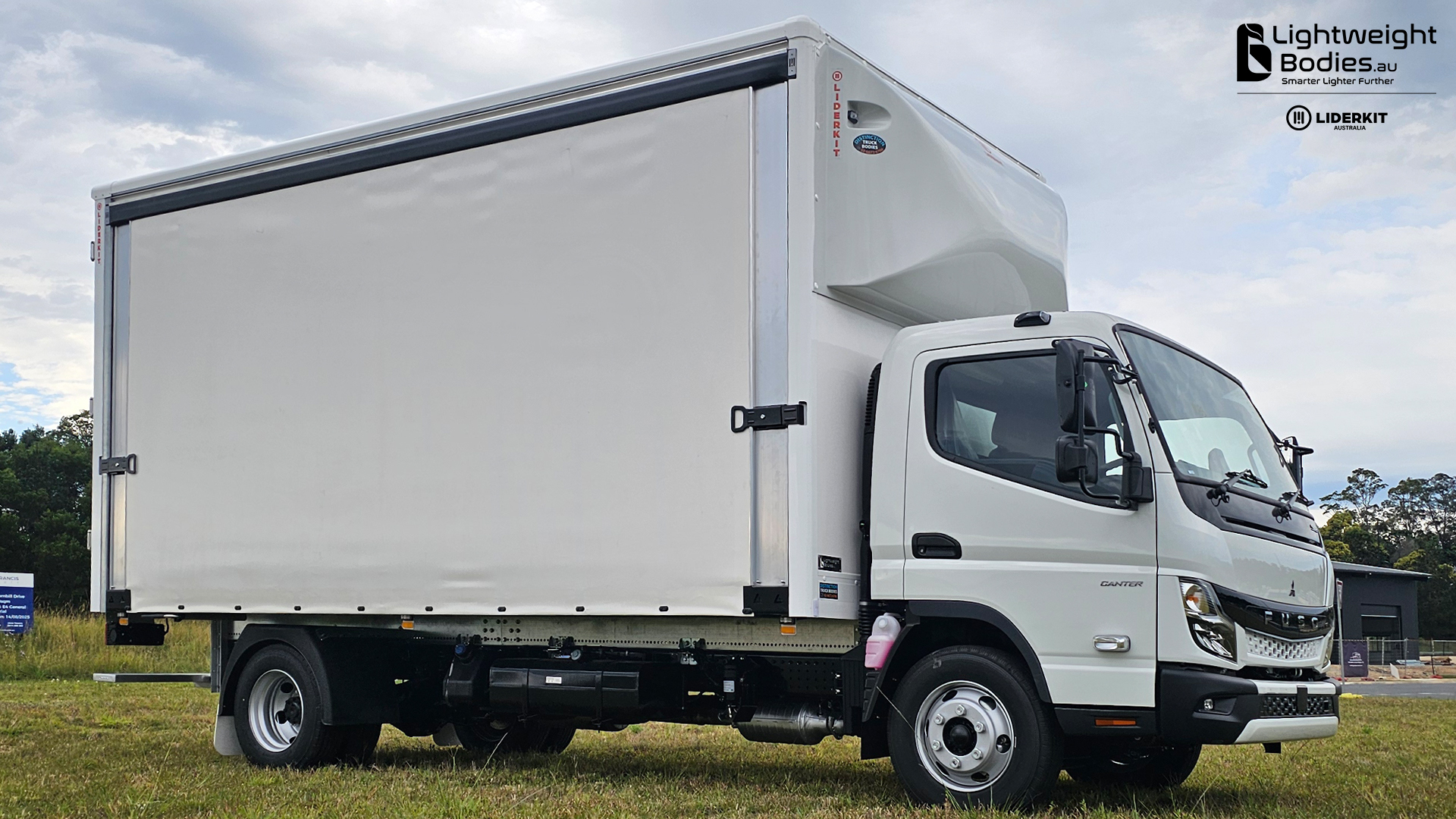

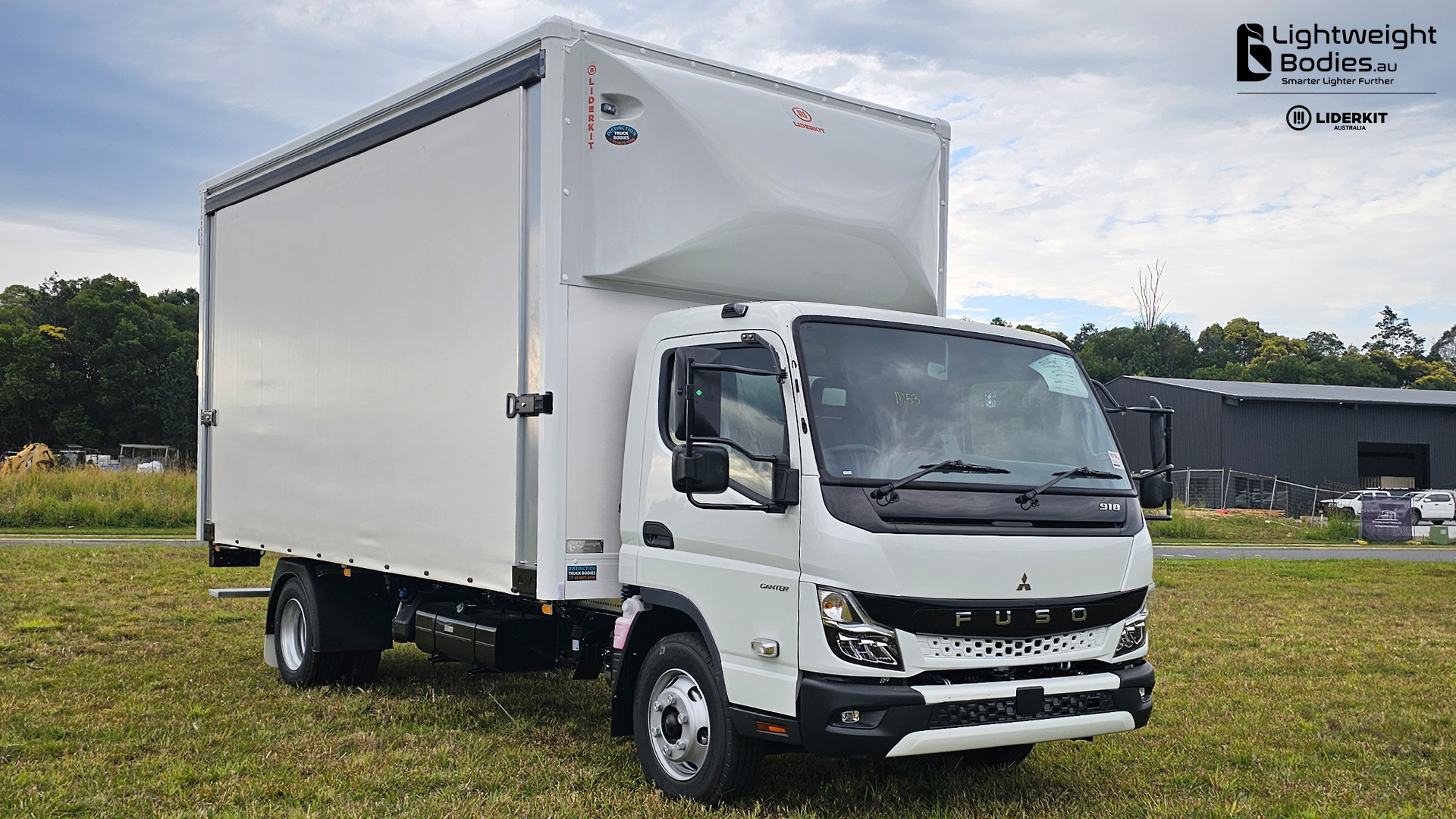

The 8-Pallet Curtain Slider is built for high-throughput fleet operations and palletised freight distribution. Designed for 7,500–9,000kg GVM platforms, it delivers full side curtain access for rapid loading, improved turnaround times, and long-term structural reliability in demanding delivery environments.
Available: QLD & NSW | Stock Code: CS-52.25.22-8P
Body Size
5200L x 2495W x 2240H
Side Clearance: 2240mm from the floor to the underside of the rubber pelmet.
8 Pallet: 7500/9000kg GVM
Body Weight: ~940kg
Volume: 30.1m³
Body Specifications
Body – LIDERKIT® interlocking body system.

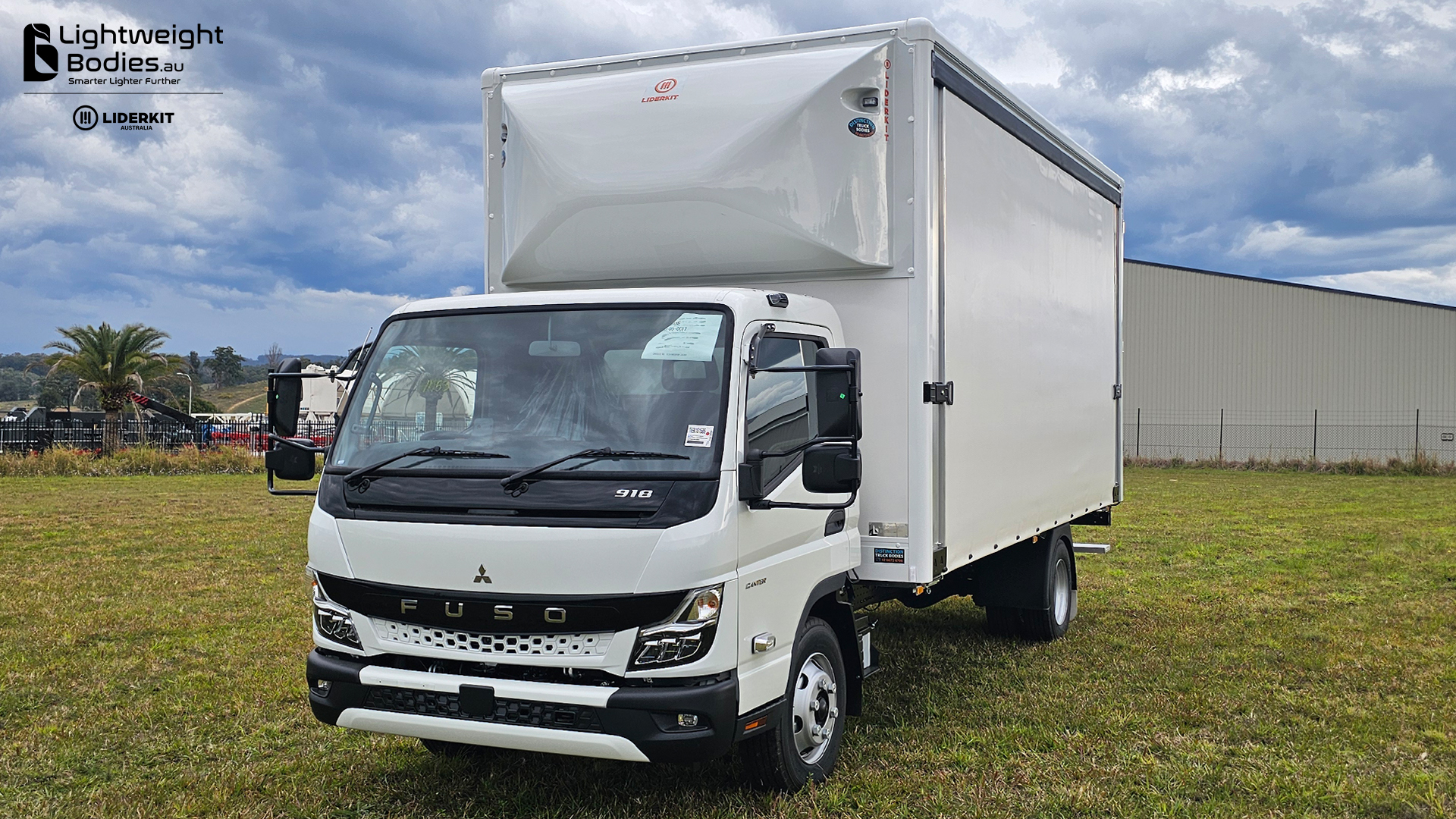

Front – LIDERwood® 20mm FRP reinforced front wall, bottom kickplate.

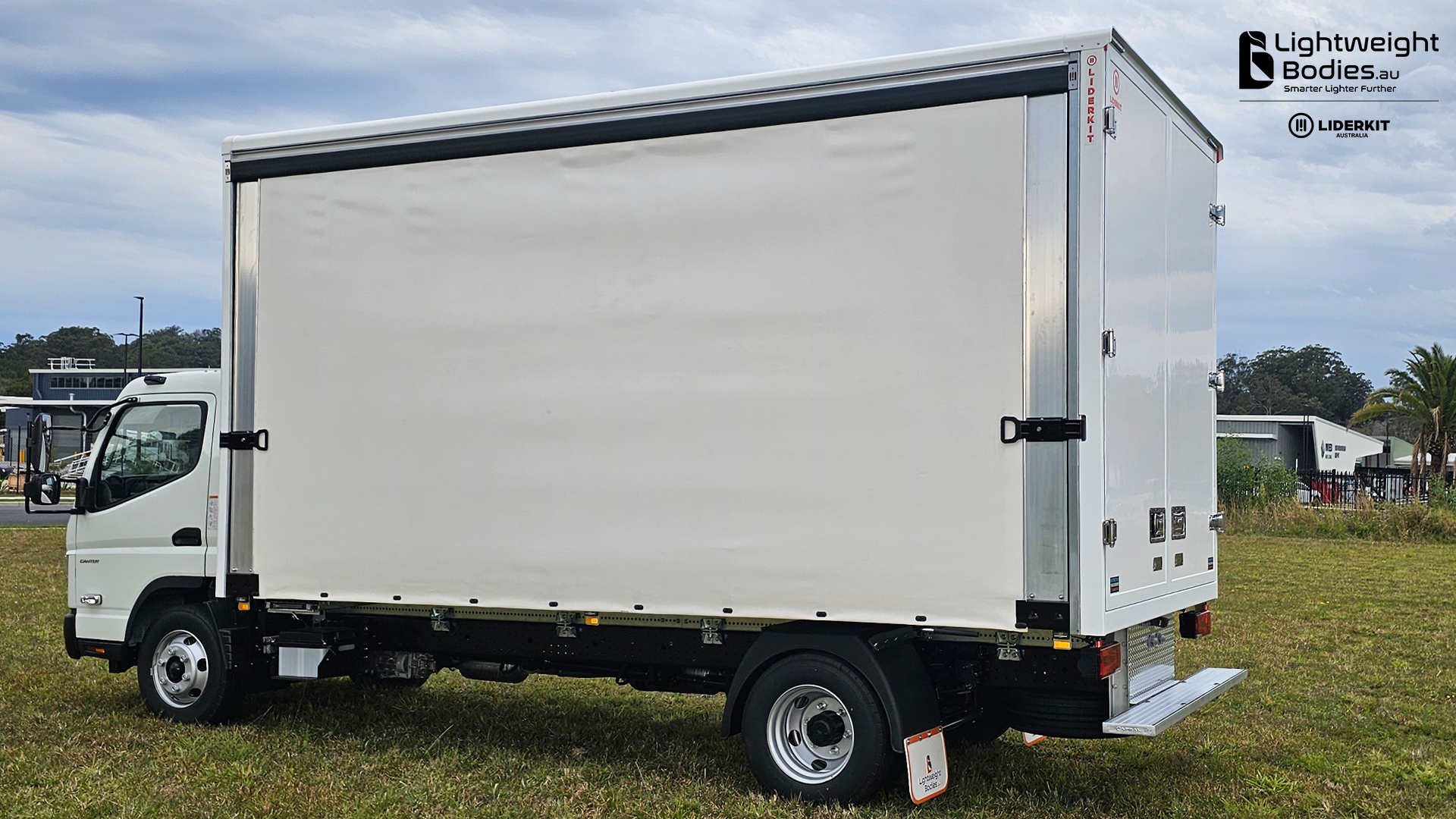

Sides – Reinforced galvanised pillars, painted white to match the body.

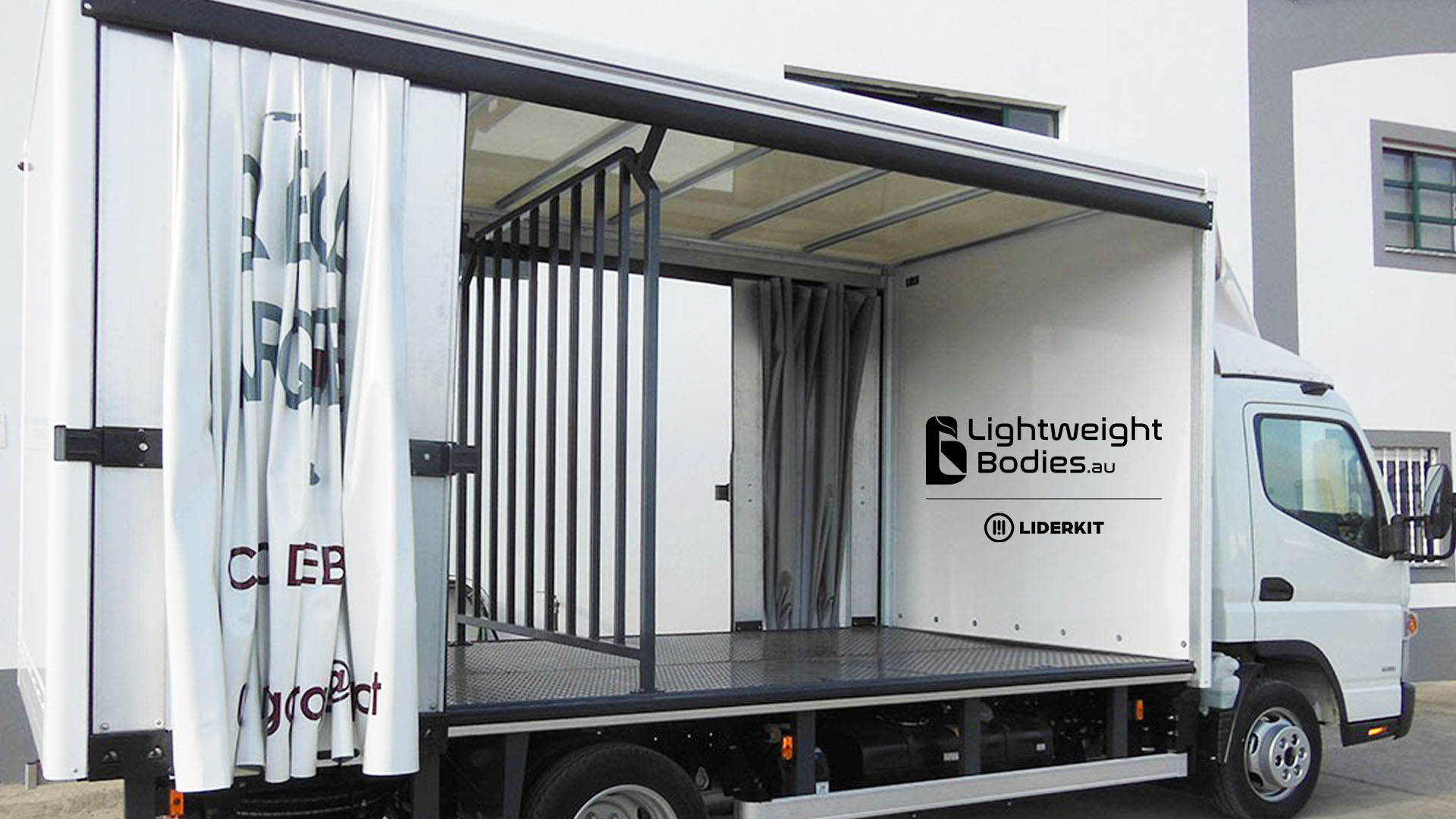

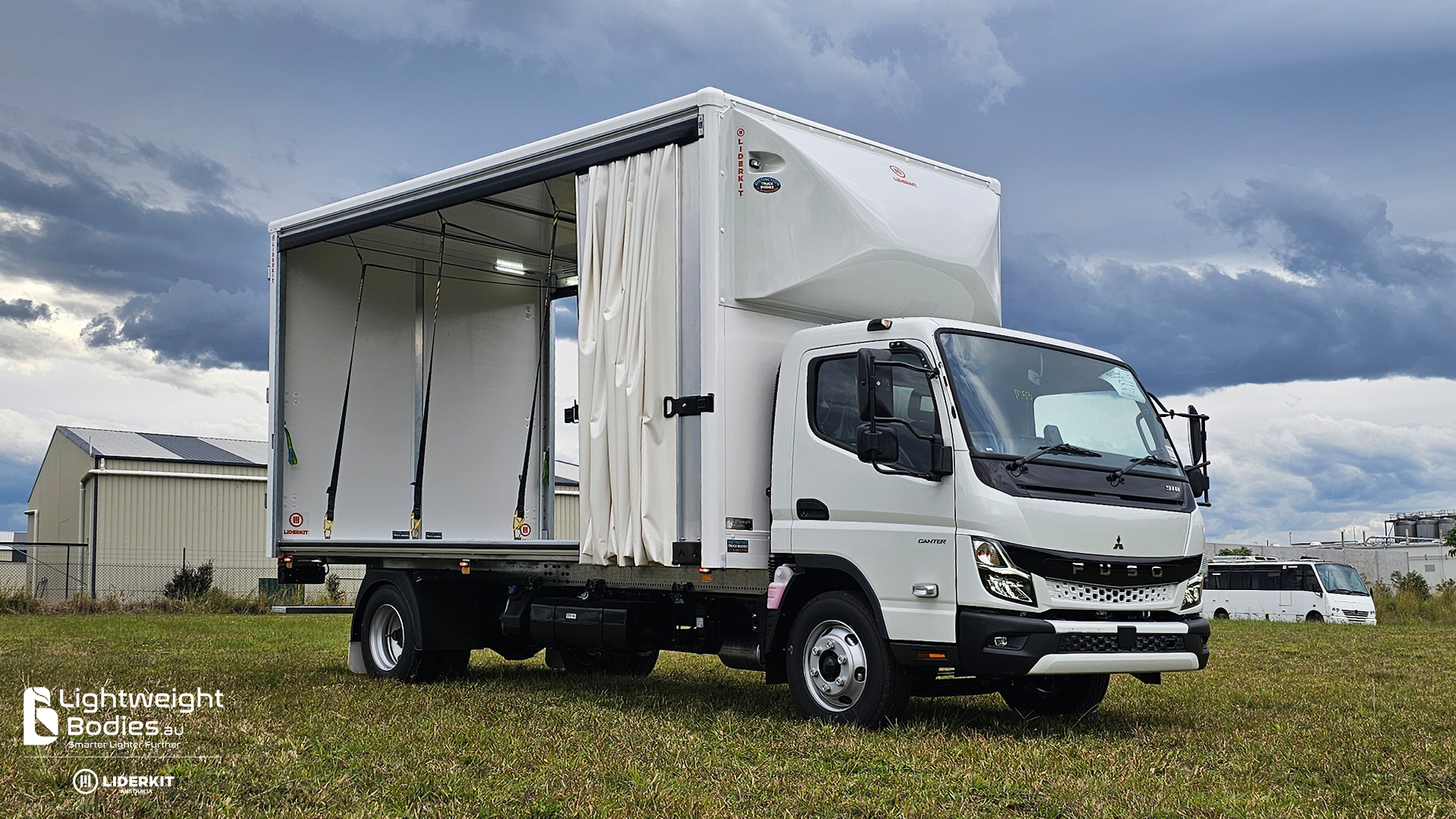

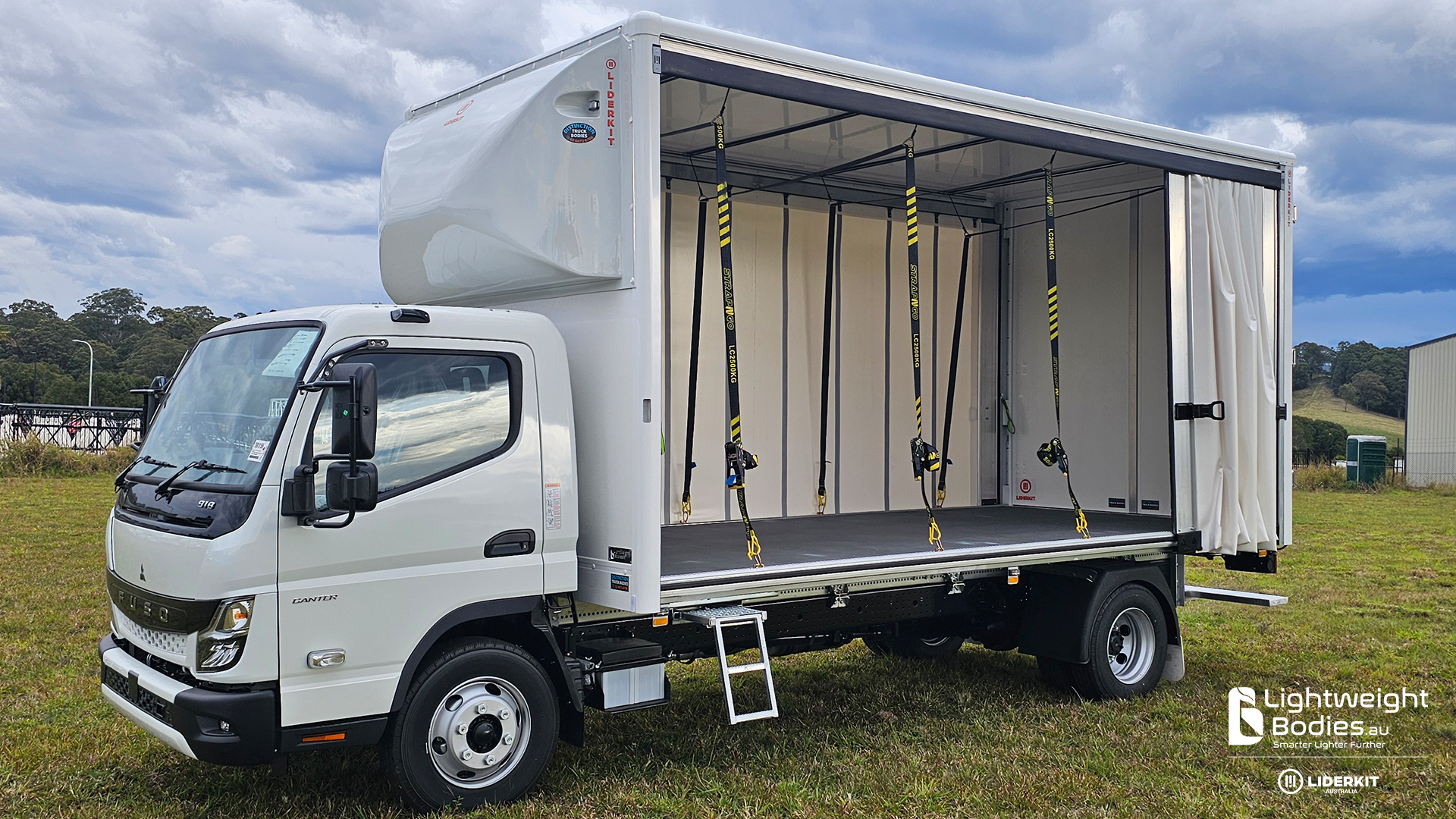

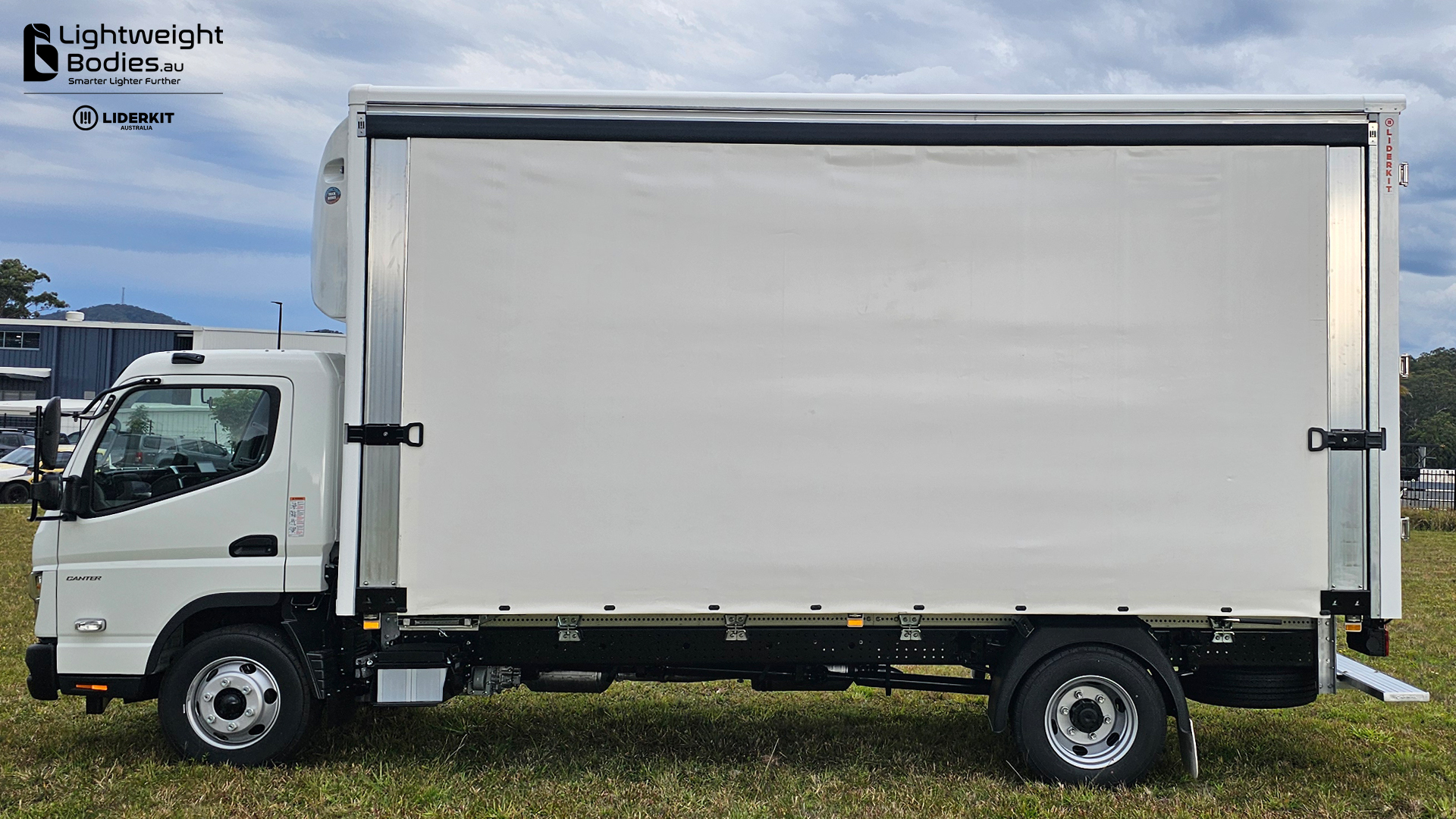

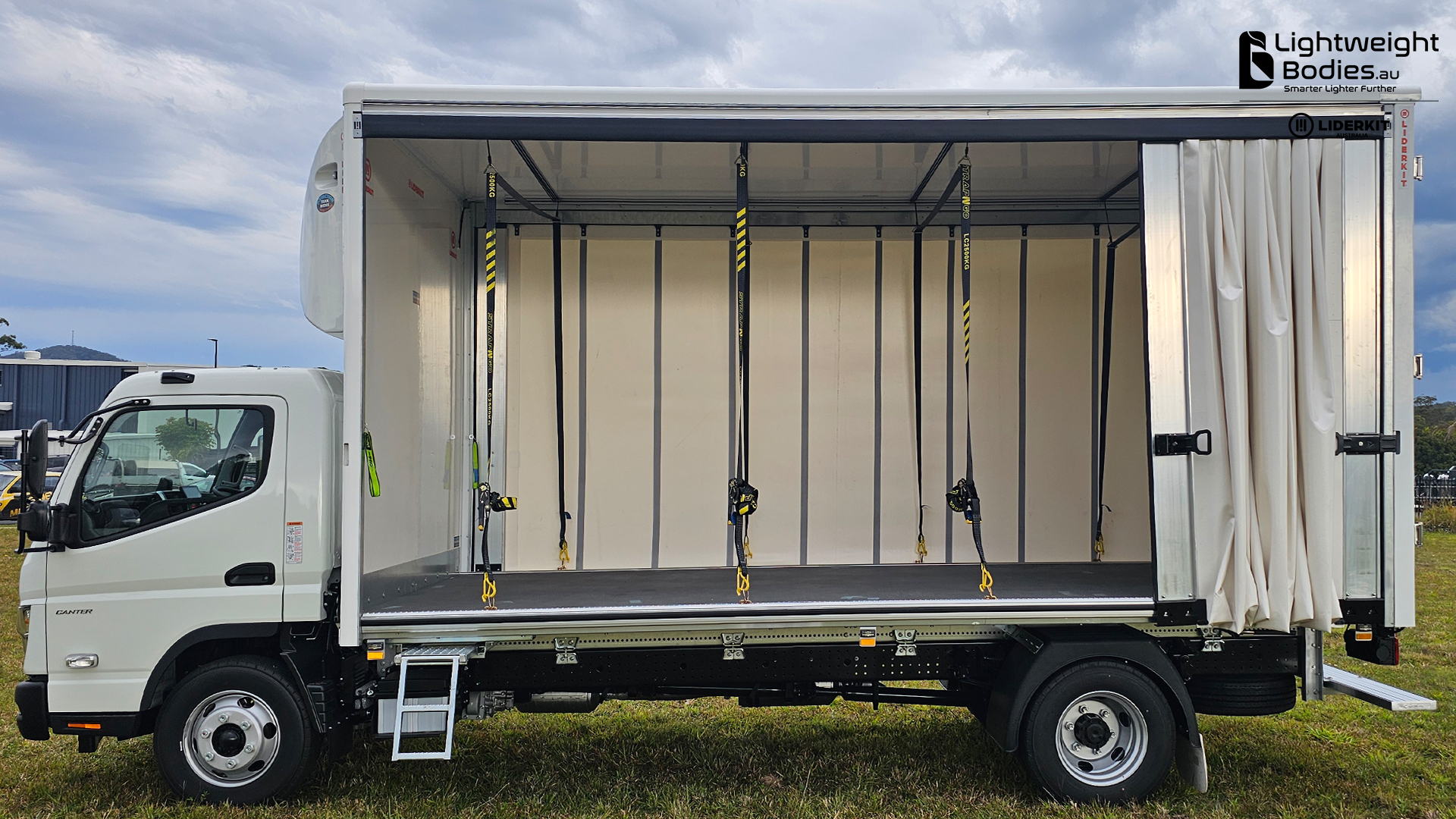

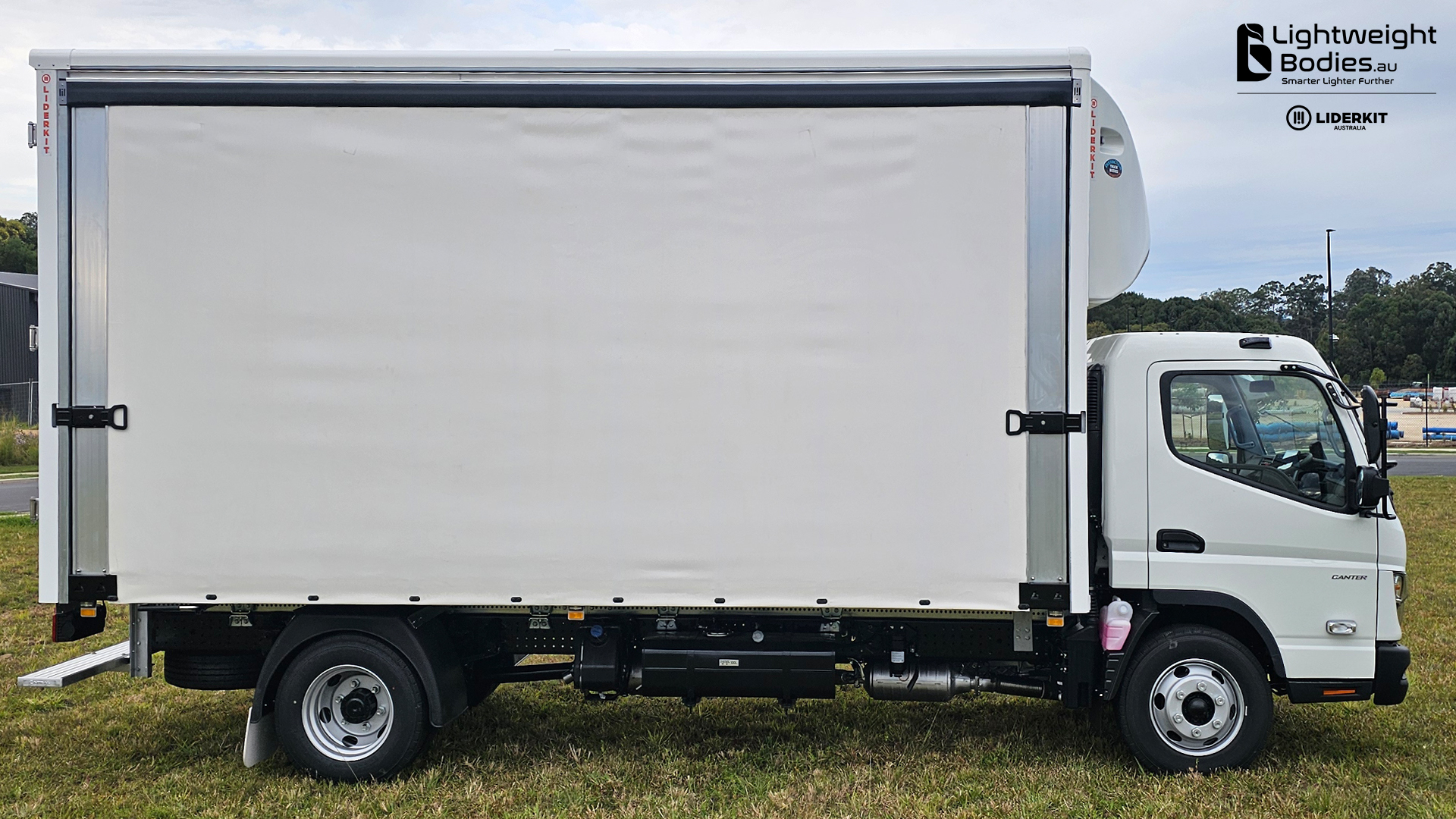

Curtains – Easy-Slide curtains of 900gr/m² canvas, white finish to match the body with single lockable fast-latch systems.
Roof – One-piece 30mm LIDERfoam® XPS insulated sandwich panel for ambient temperature control.

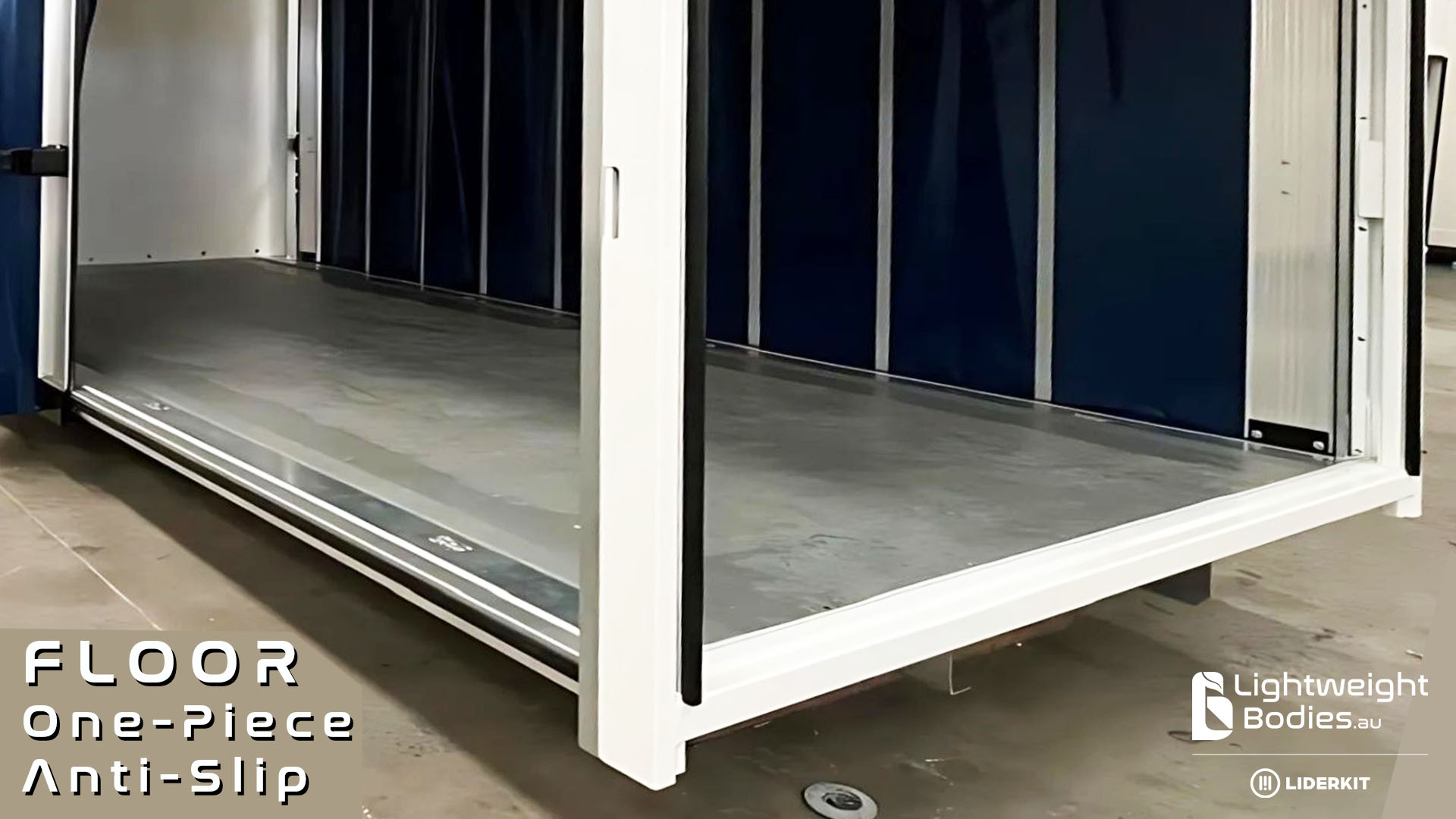

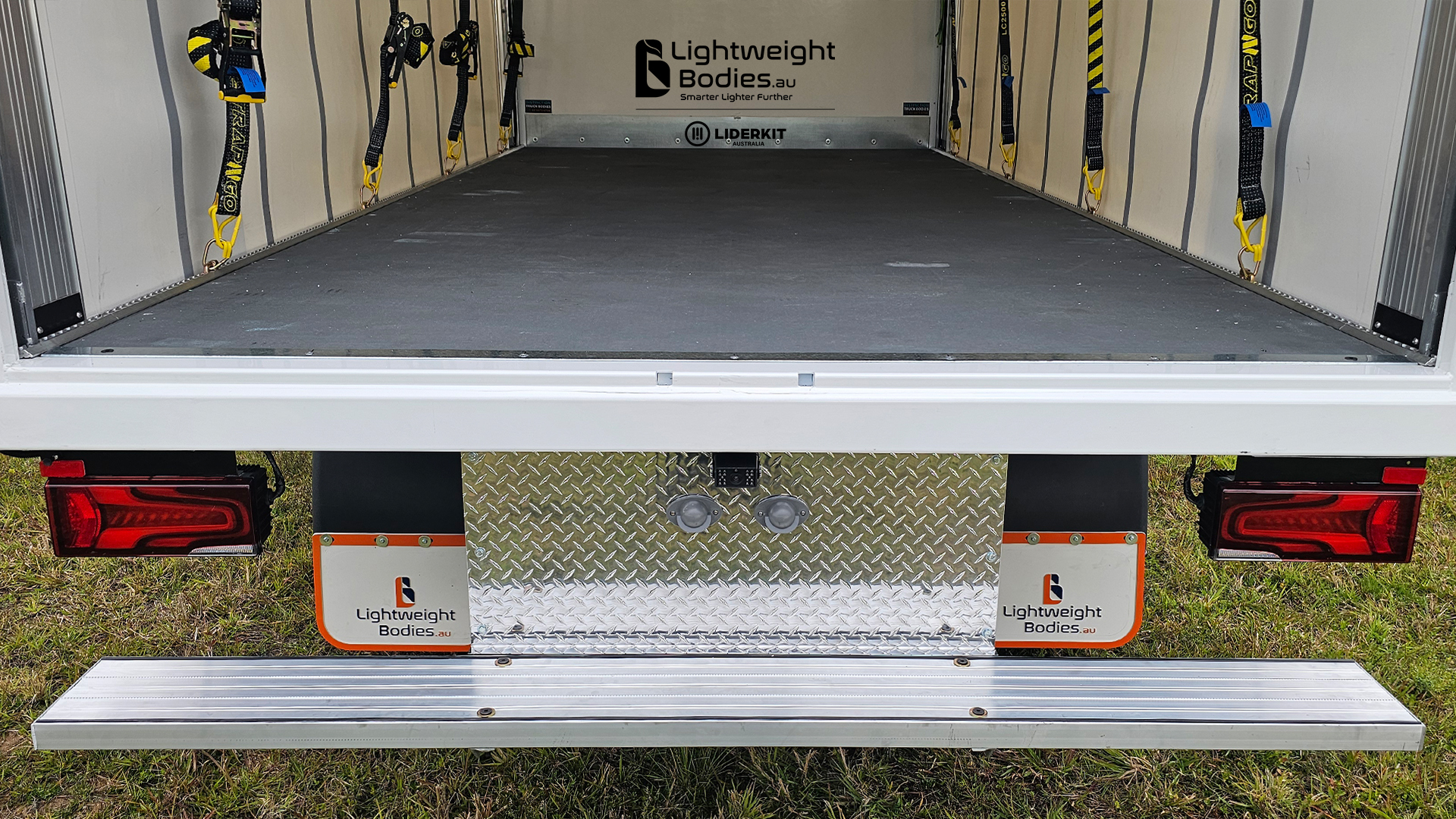

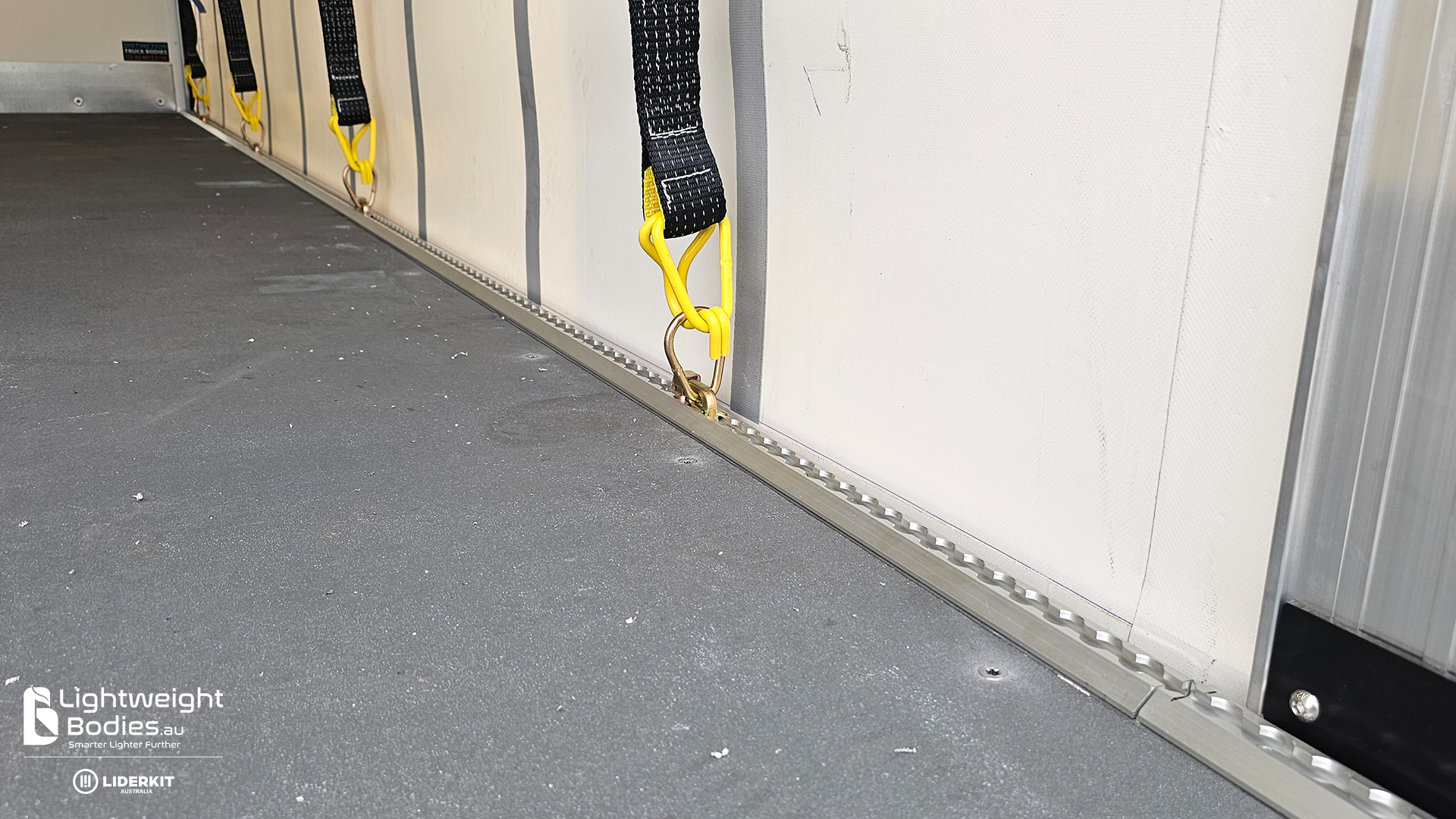

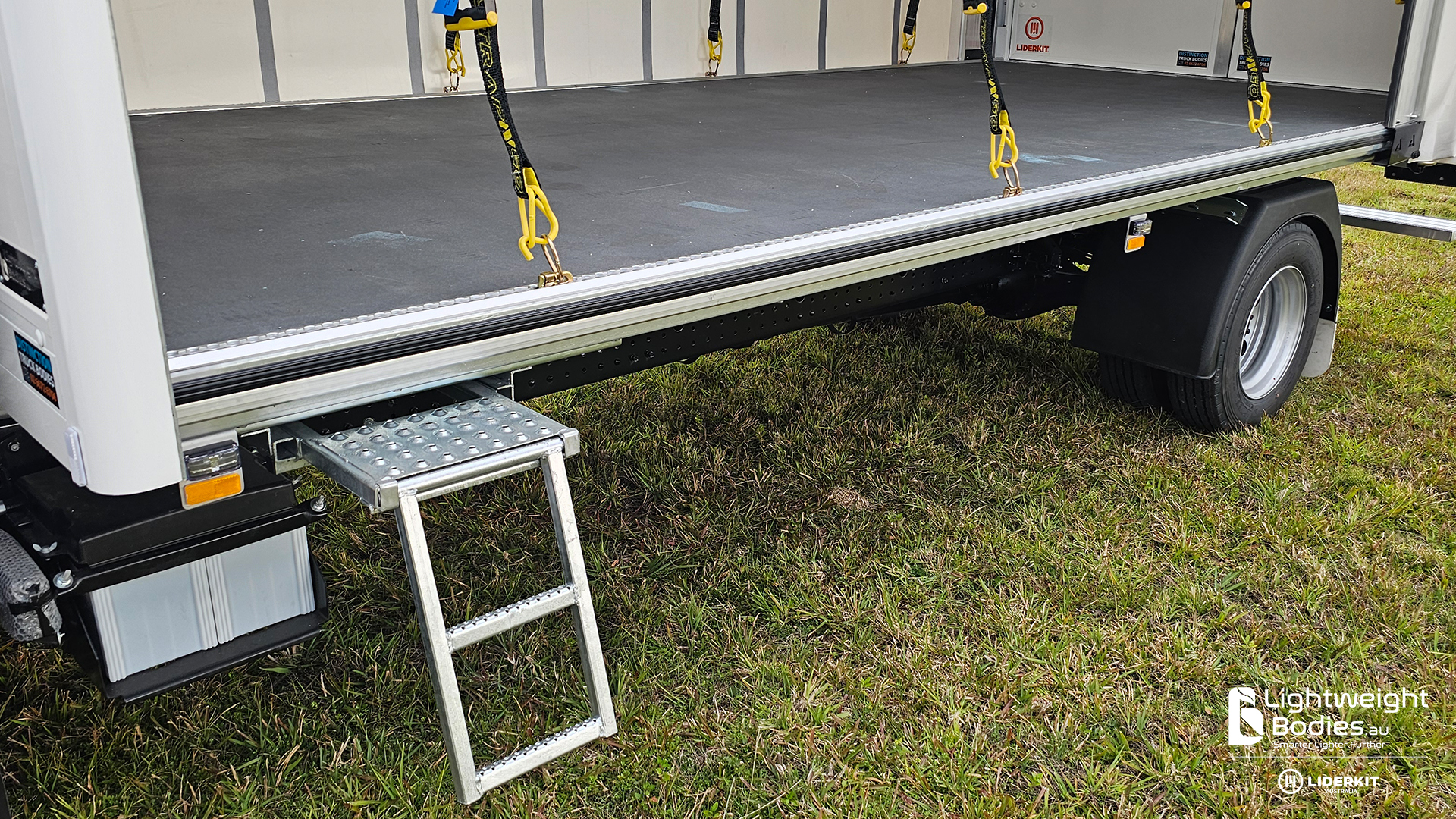

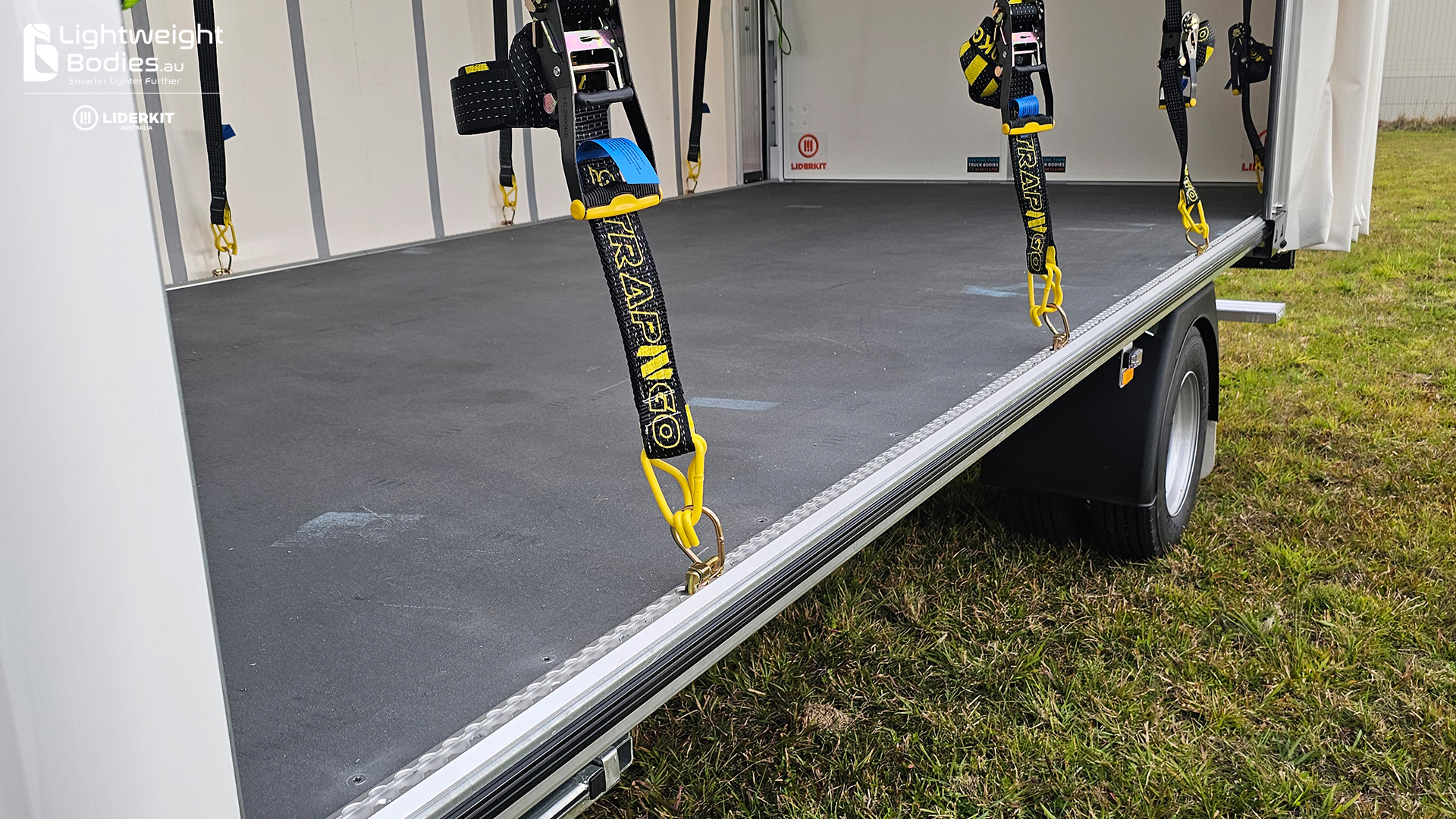

Floor – One-piece heavy-duty anti-slip polyurethane top finish, with a fully sealed fibreglass underside for durability and longevity.

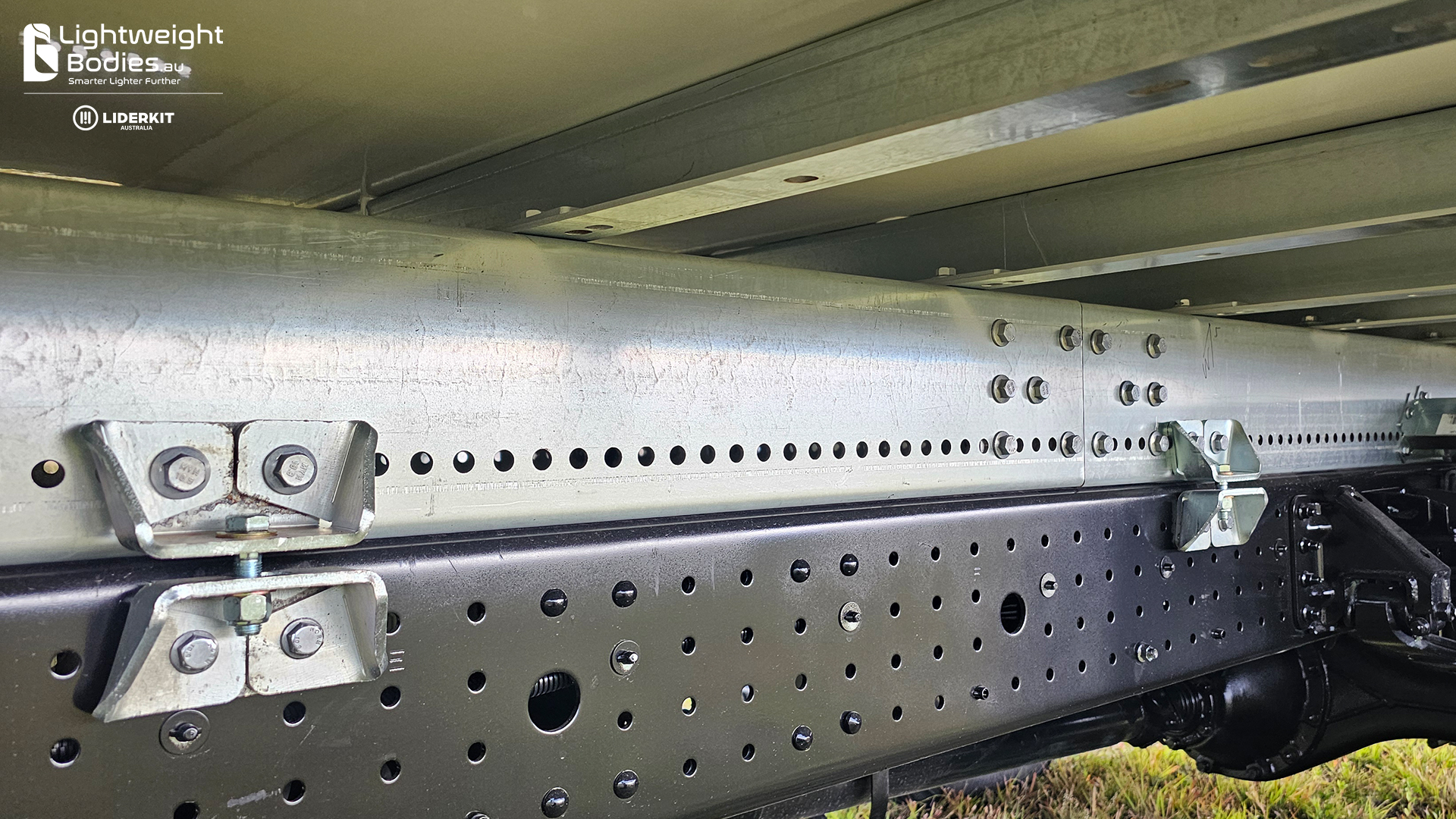

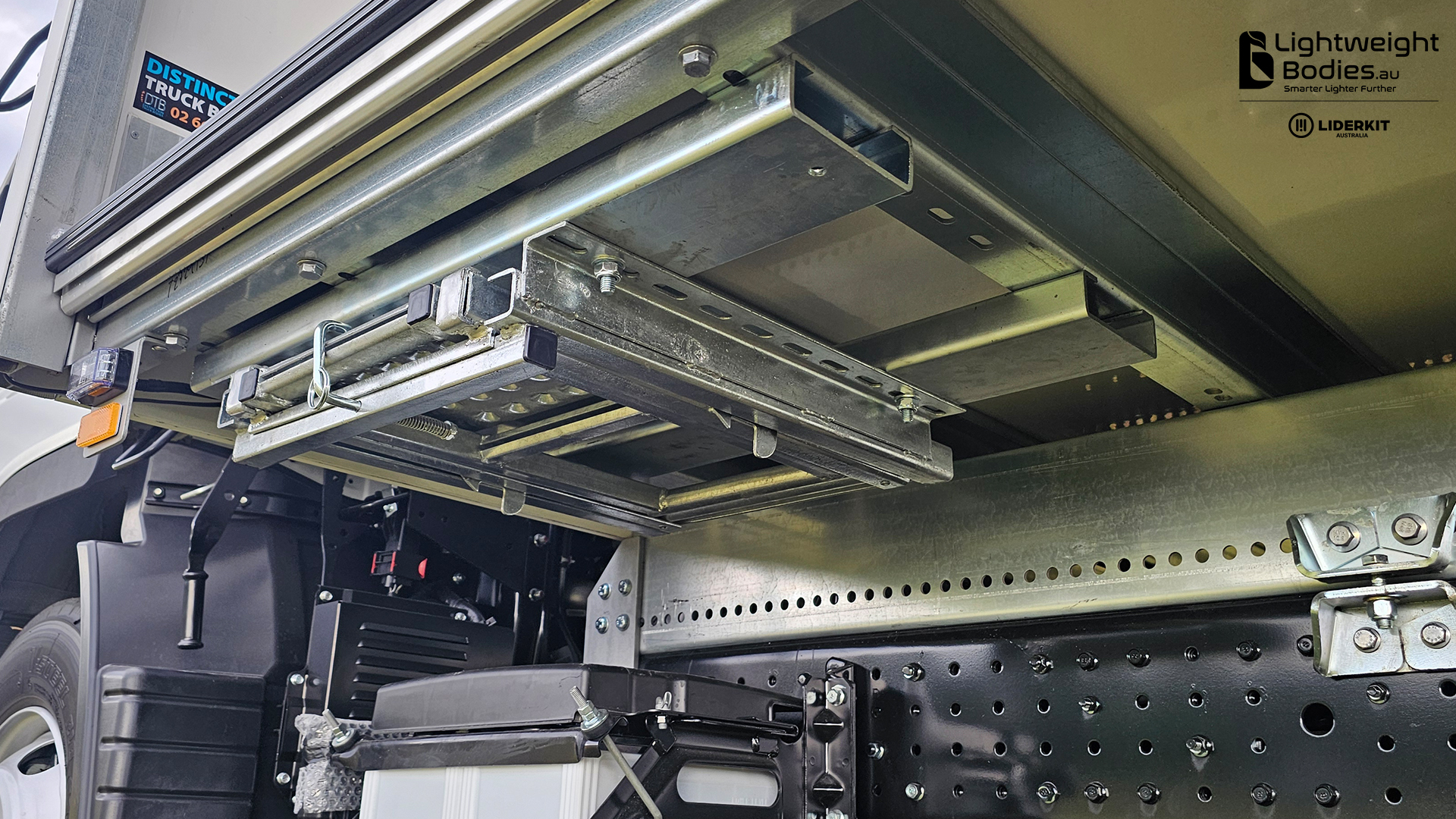

Sub-Frame – Galvanised runners fitted with LIDERKIT® multi-section aluminium cross-members.

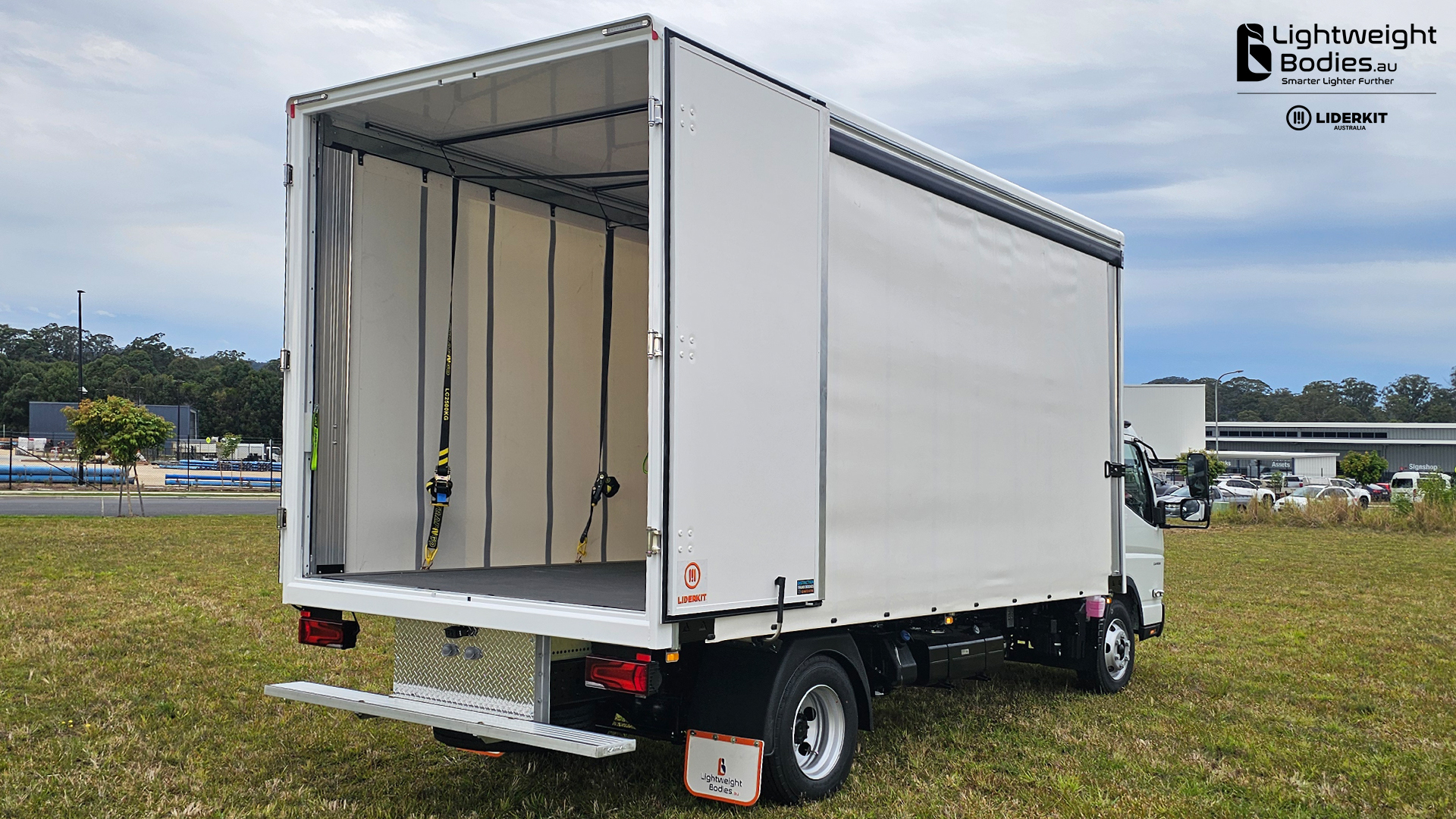

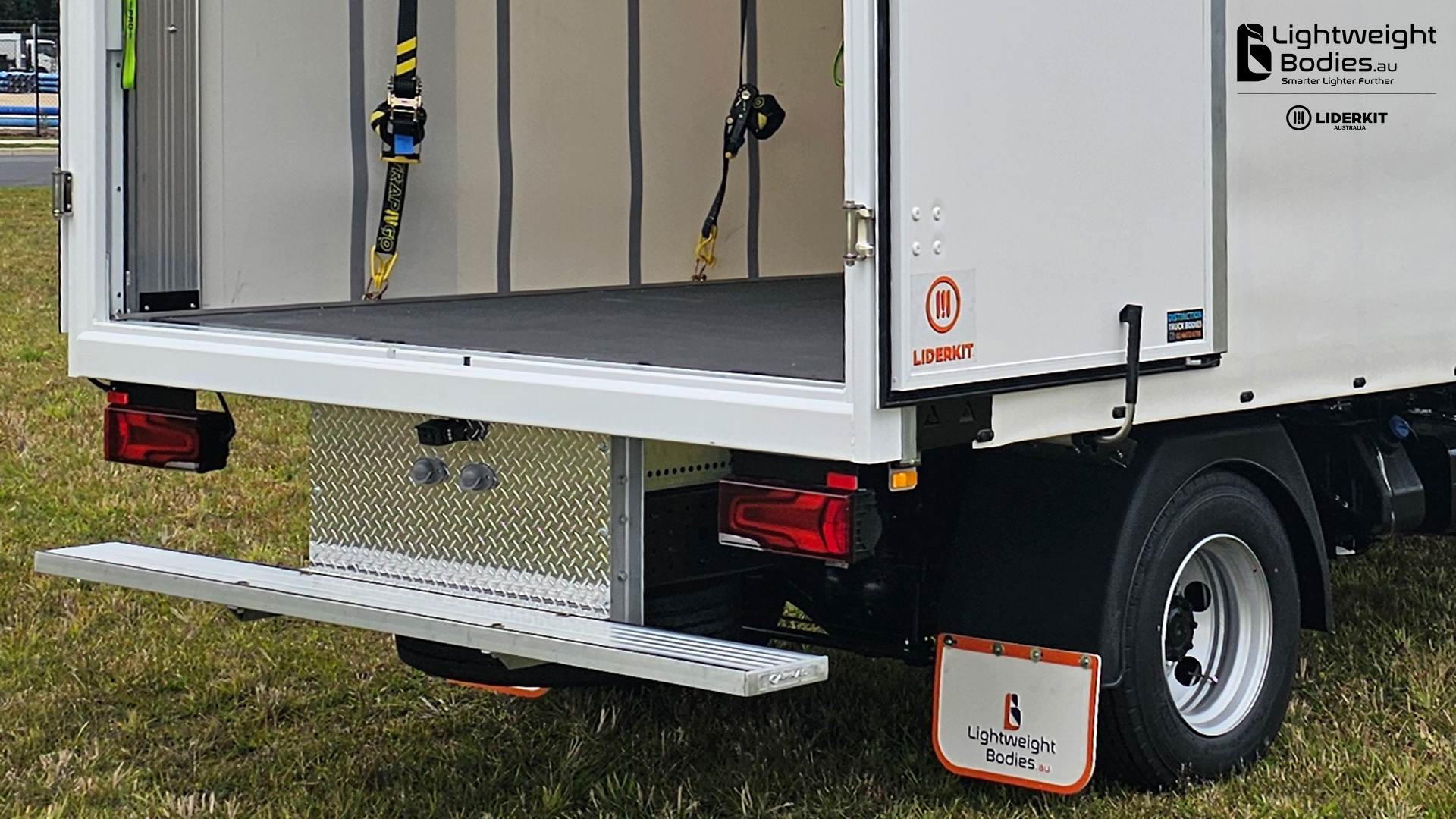

Rear Frame – 4mm reinforced galvanised rear frame, painted white, with barn doors made from 30mm LIDERfoam®, internal pinch seals, cam-locks and flush lockable latches.

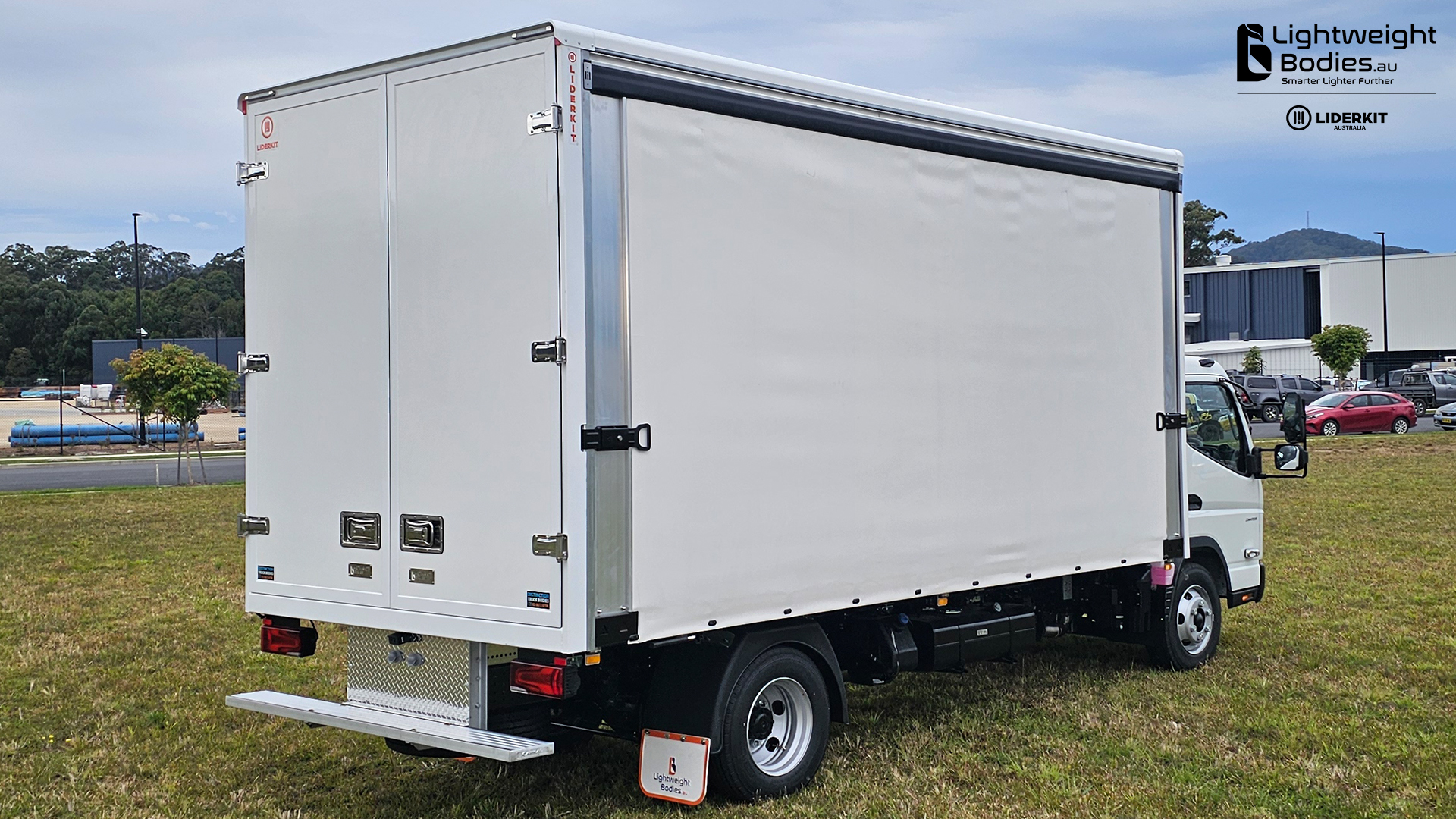

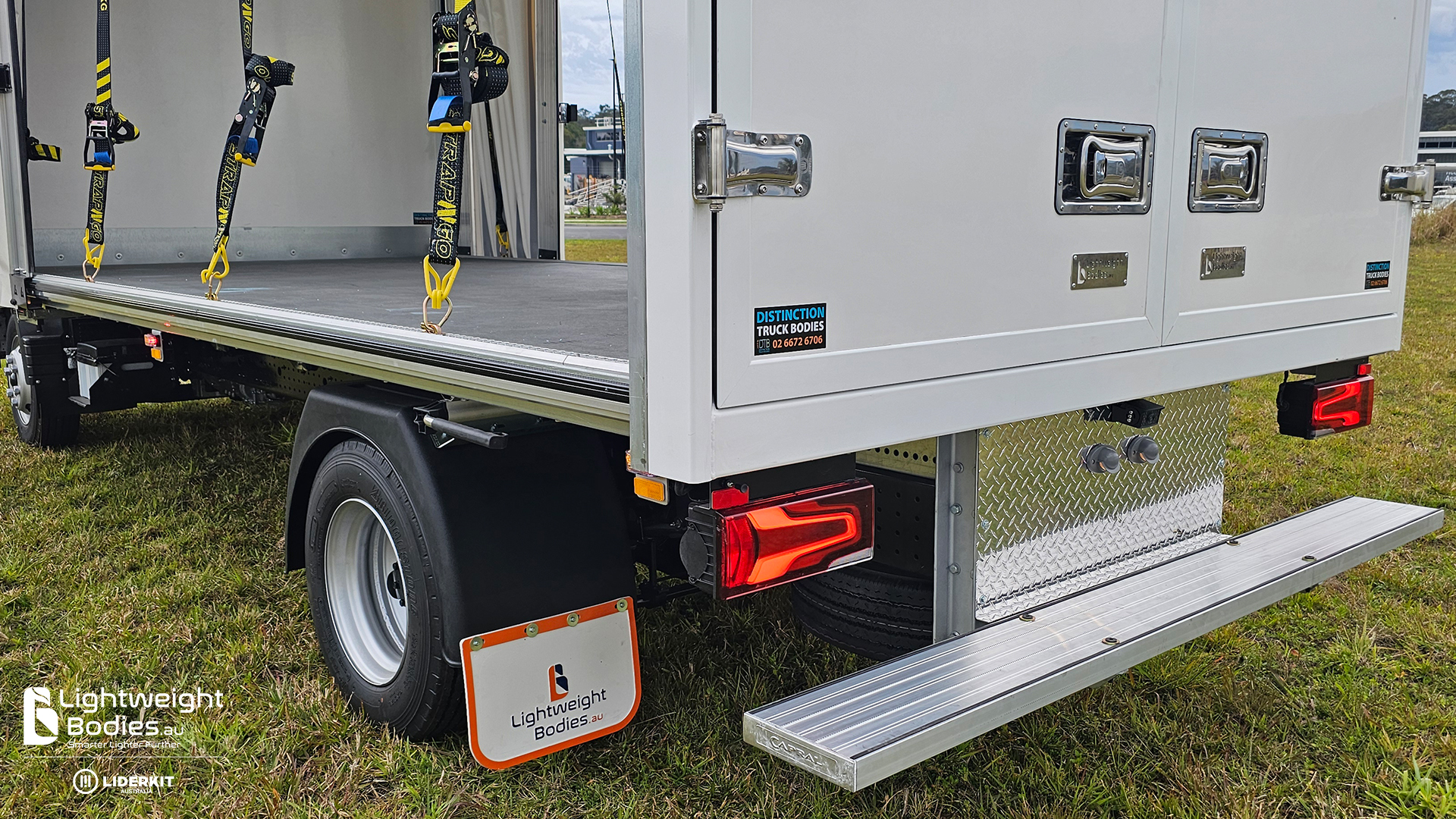

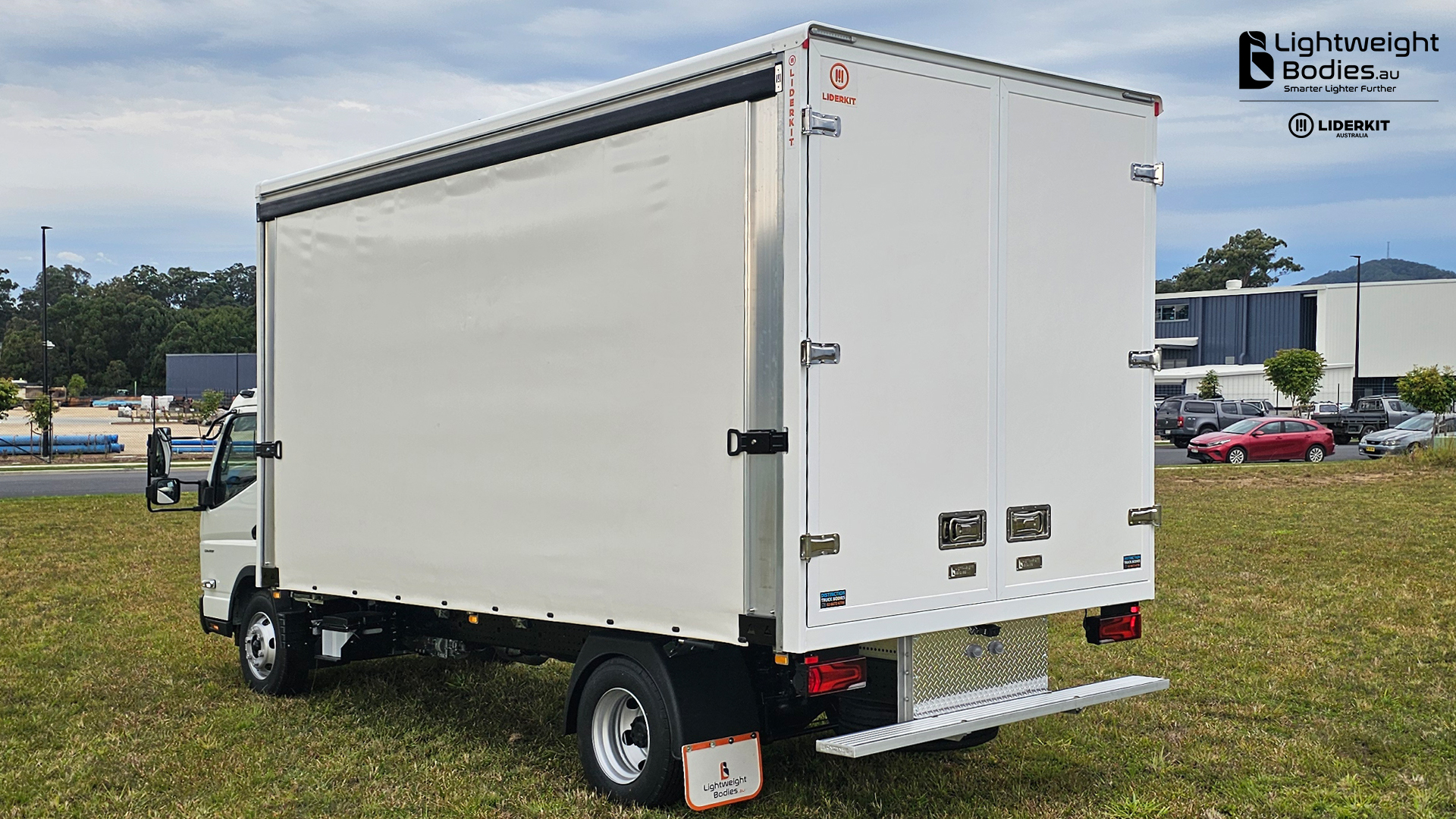

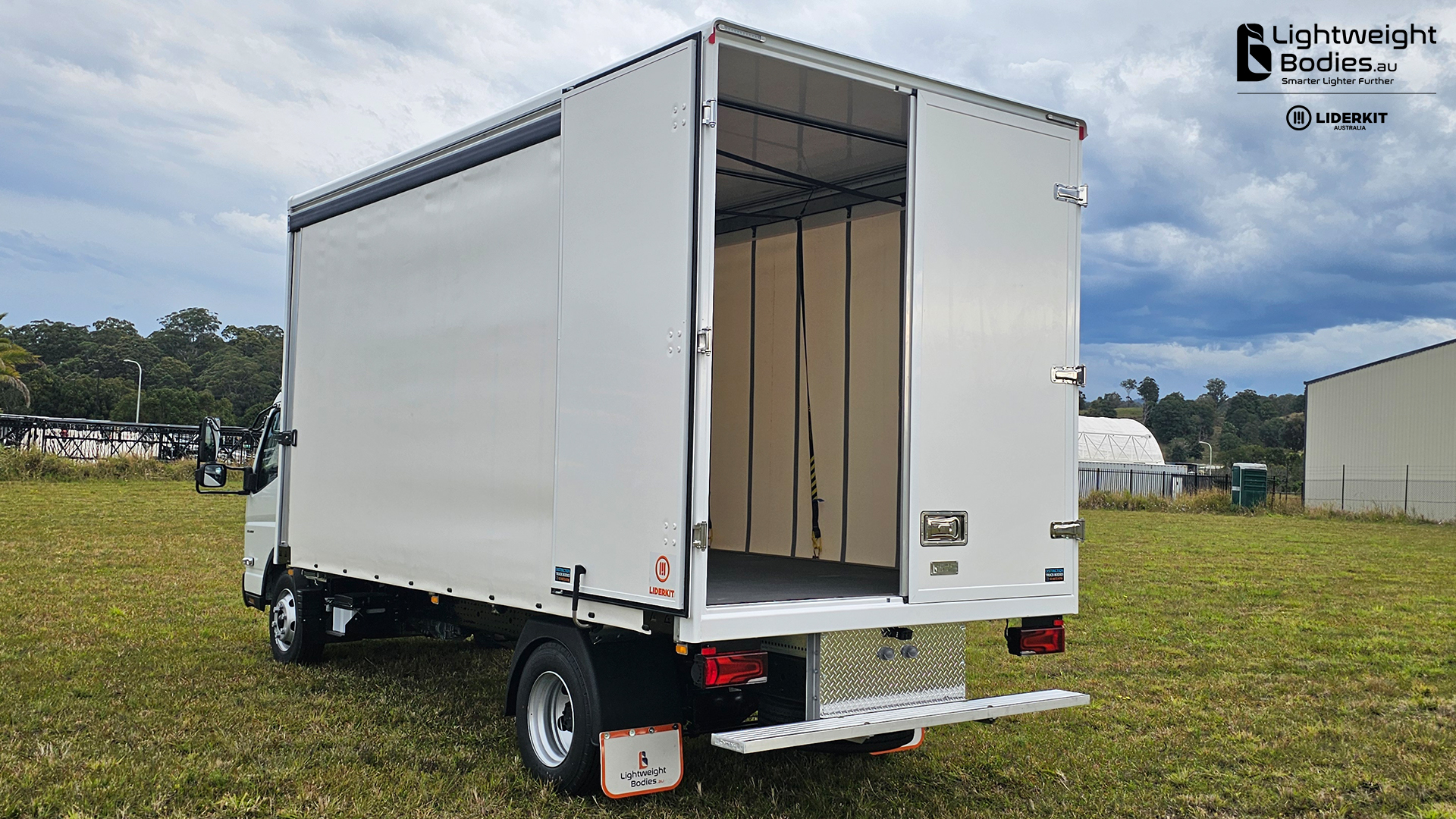

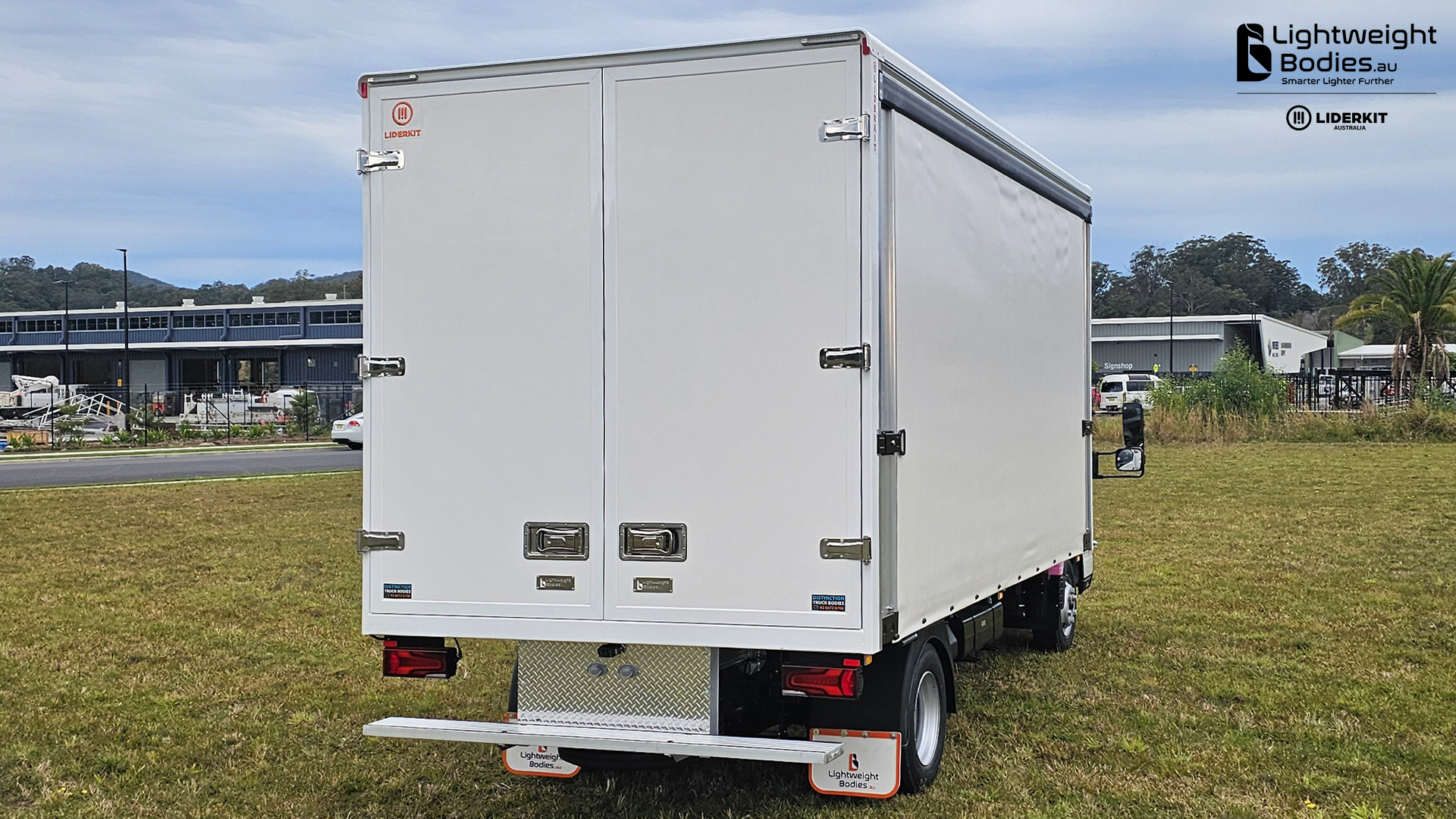

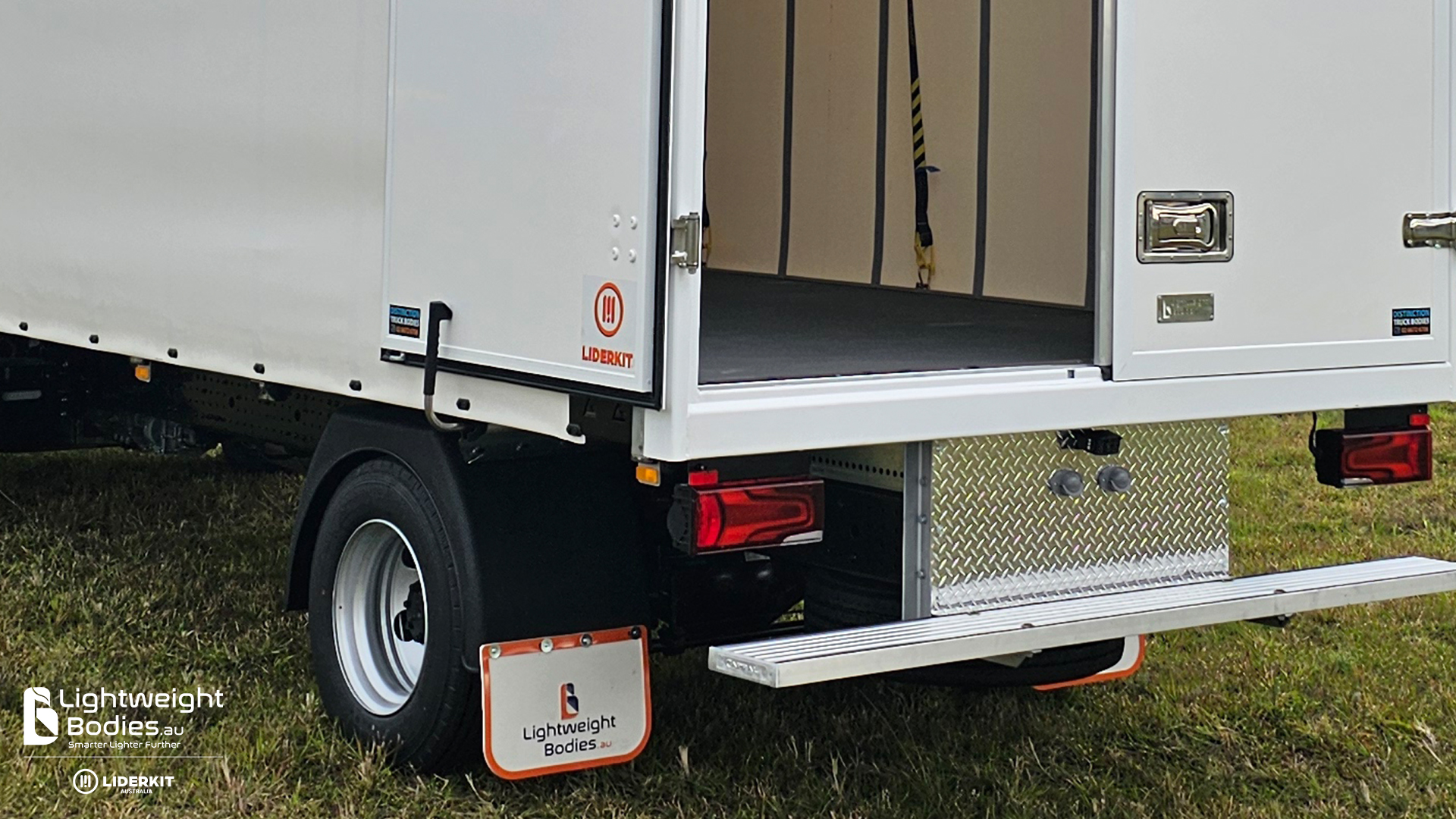

Rear Doors – Vertical twin barn doors made from 30mm LIDERfoam®, internal pinch seals, internal cam-locks and flush lockable stainless-steel latches.
Runners – Fully adjustable galvanised runners to suit any cab-chassis width.
