Smarter Lighter Further - When Efficiency Matters

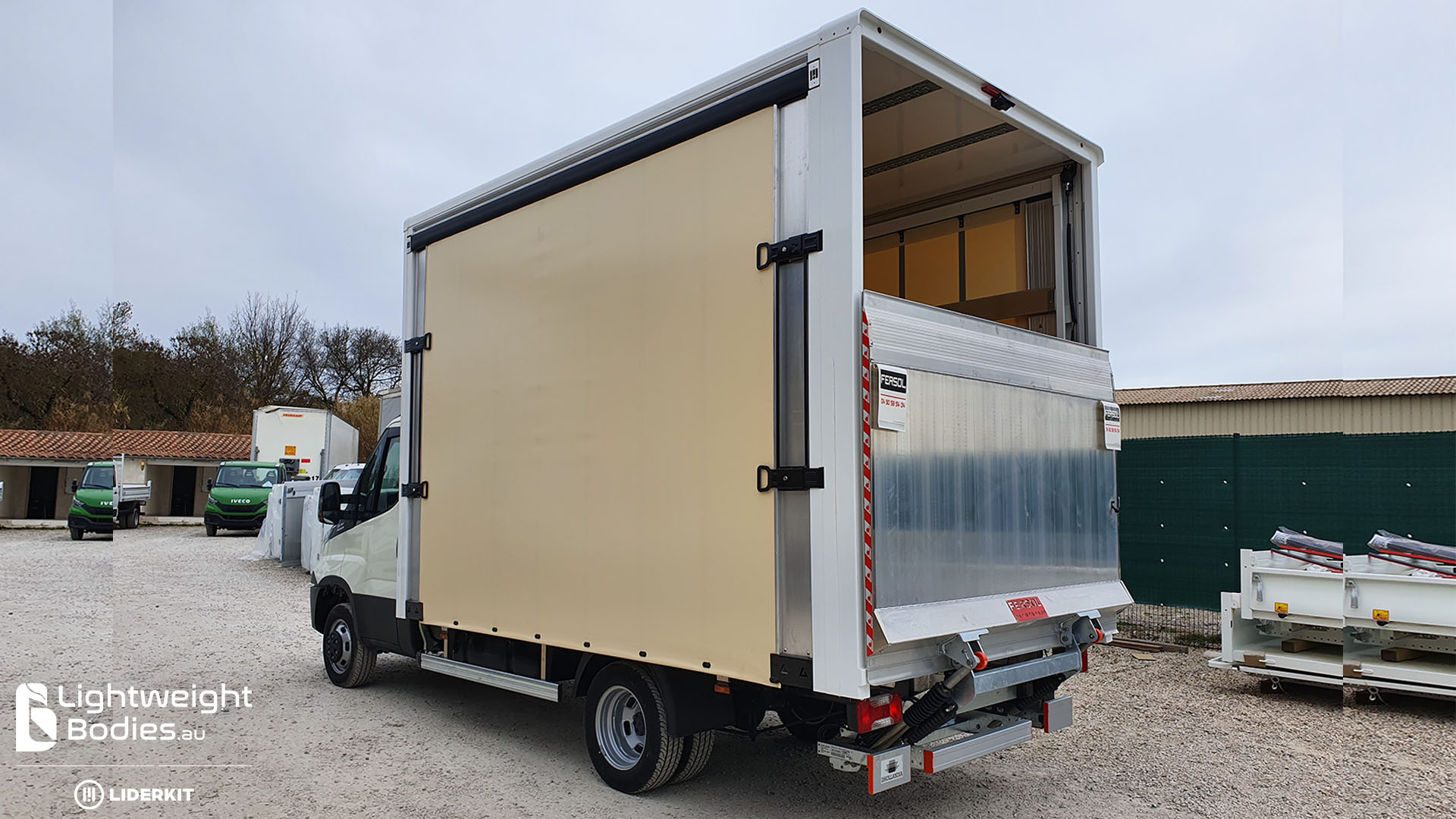

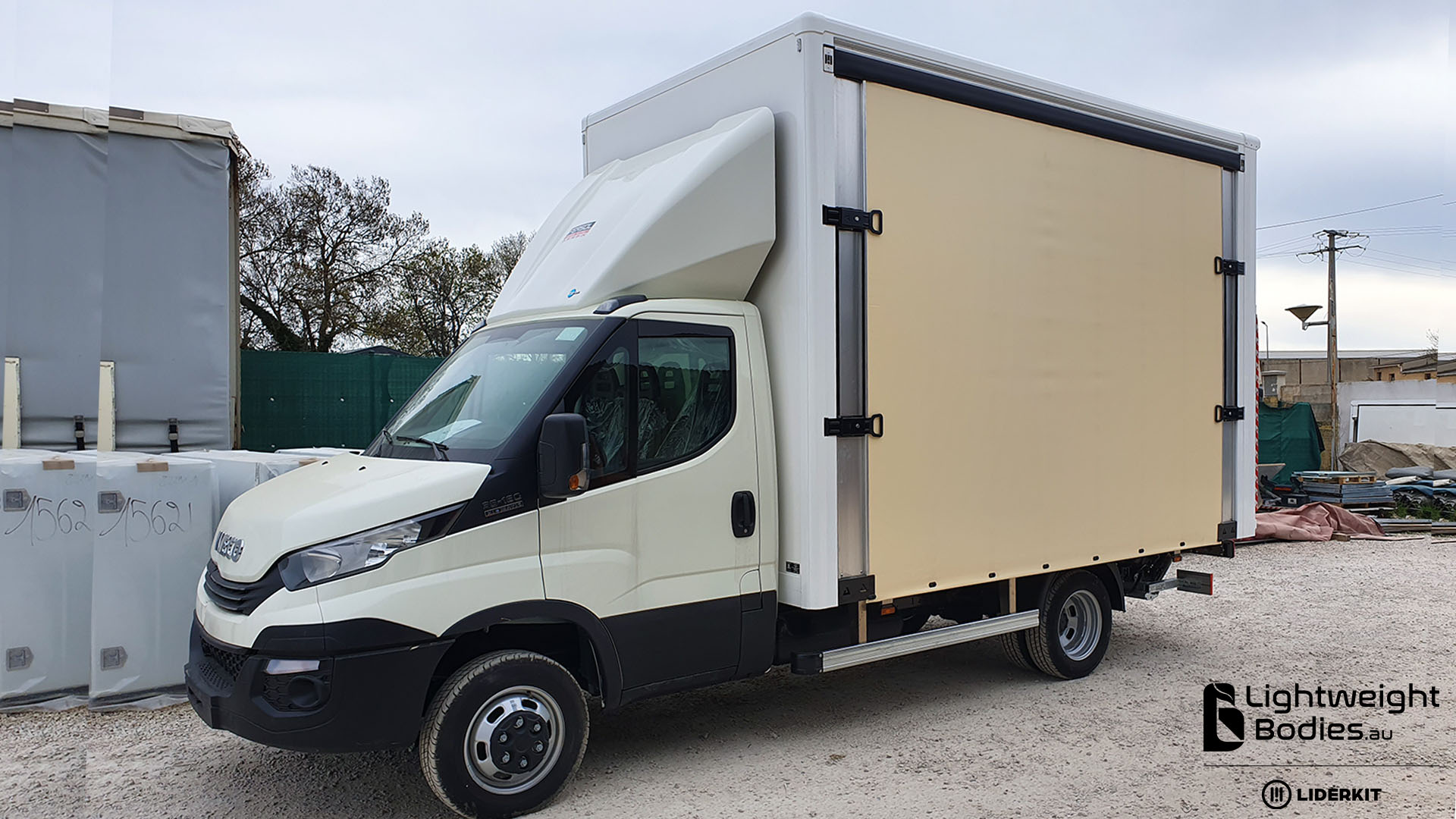

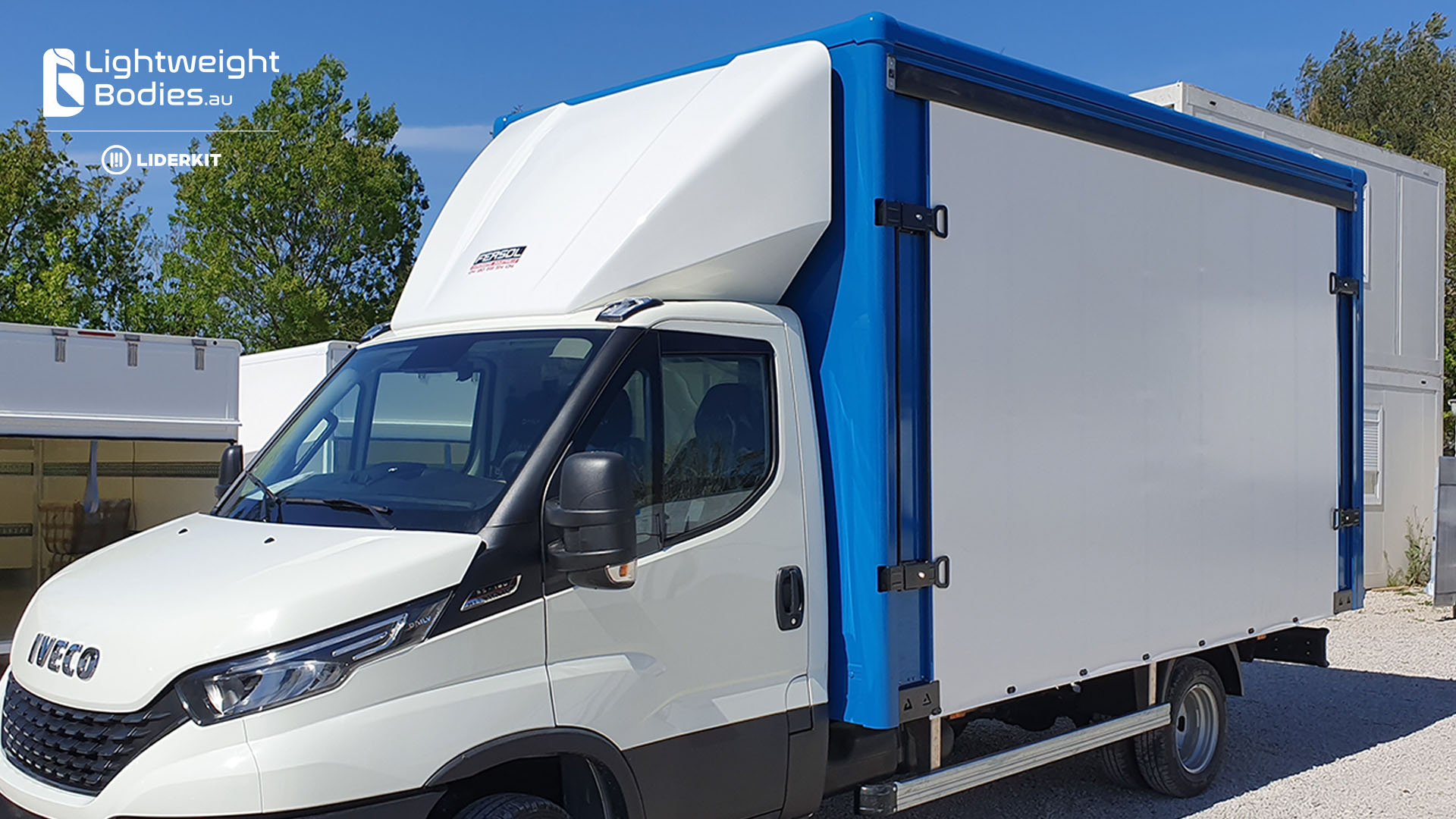

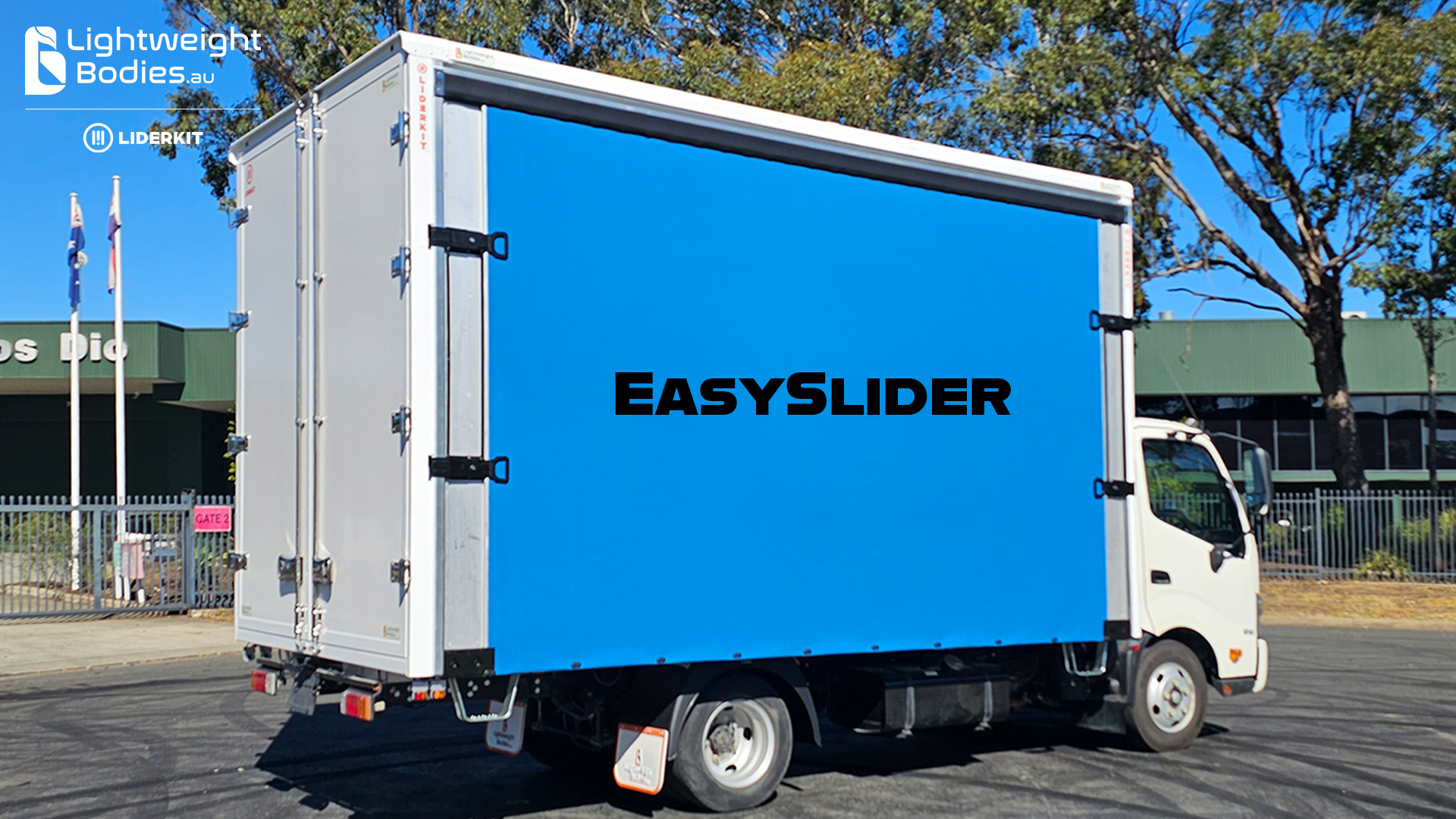

The 6 pallet tall curtain slider is designed for operators needing greater internal height and cubic capacity without stepping up to a larger body size. Interchangeable across car licence (4,500kg GVM) through to mini rigid (7,500kg GVM), this platform offers flexibility across multiple fleet applications and licence classes.

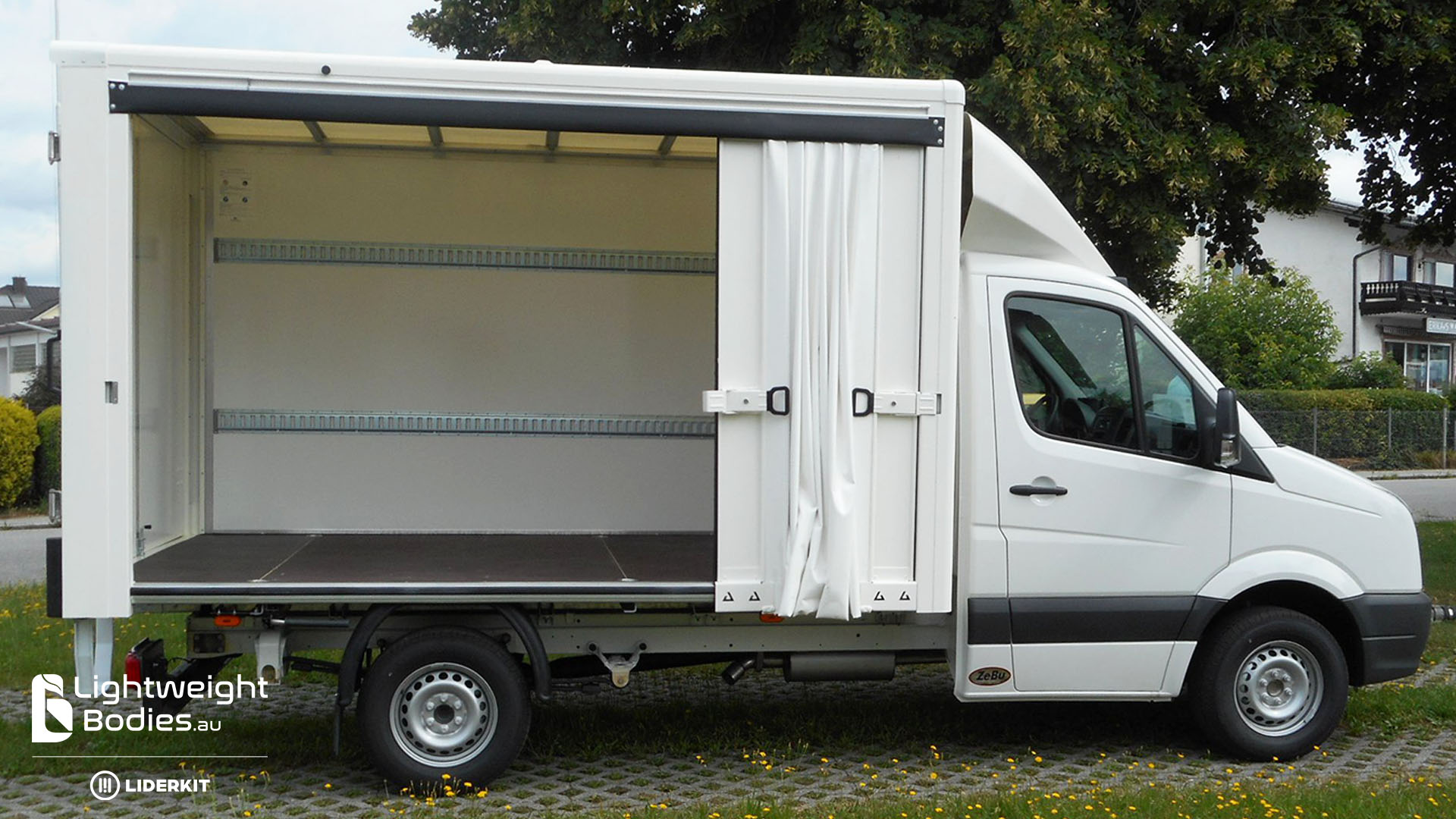

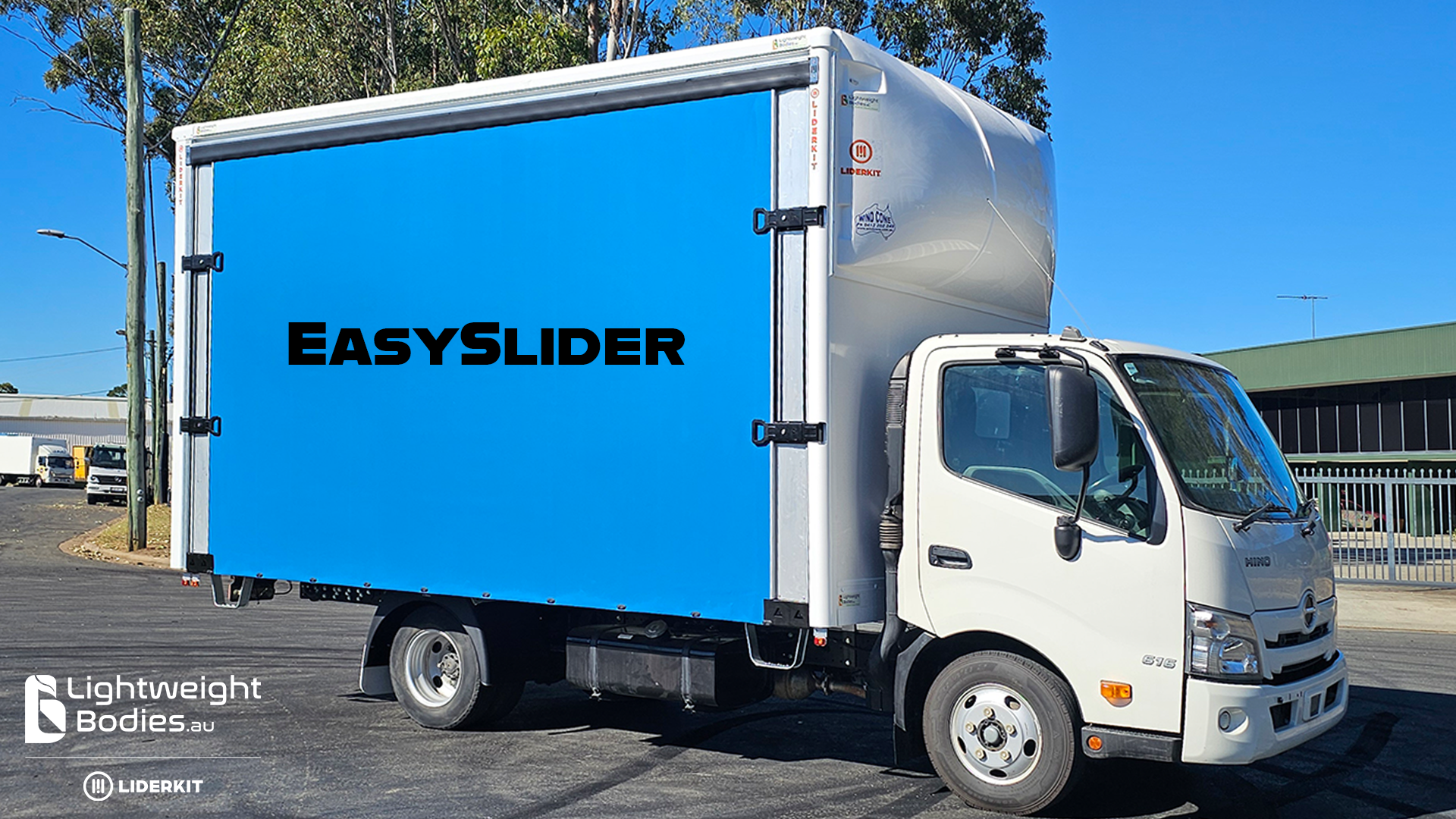

Full-length easy-slide curtain systems provide fast, low-effort access from either side — reducing loading times, improving safety, and increasing daily delivery efficiency. The taller internal profile makes it ideal for bulky, lightweight freight such as furniture, packaging, and high-volume goods, while the lightweight LIDERKIT® interlocking construction ensures strength, durability, and long-term reliability in demanding metro and regional operations.
Available: QLD & NSW | Stock Code: CS-43.25.24-6P (T)
Body Size
4300L x 2495W x 2400H
Side Clearance: 2400mm from the floor to the underside of the rubber pelmet.
6 Pallet: 4500/7500kg GVM
Body Weight: ~780kg
Volume: 26.8m³
Body Specifications
Body – LIDERKIT® interlocking body system.
Front – LIDERwood® 20mm FRP reinforced front wall, bottom kickplate.
Sides – Reinforced galvanised pillars, painted white to match the body.

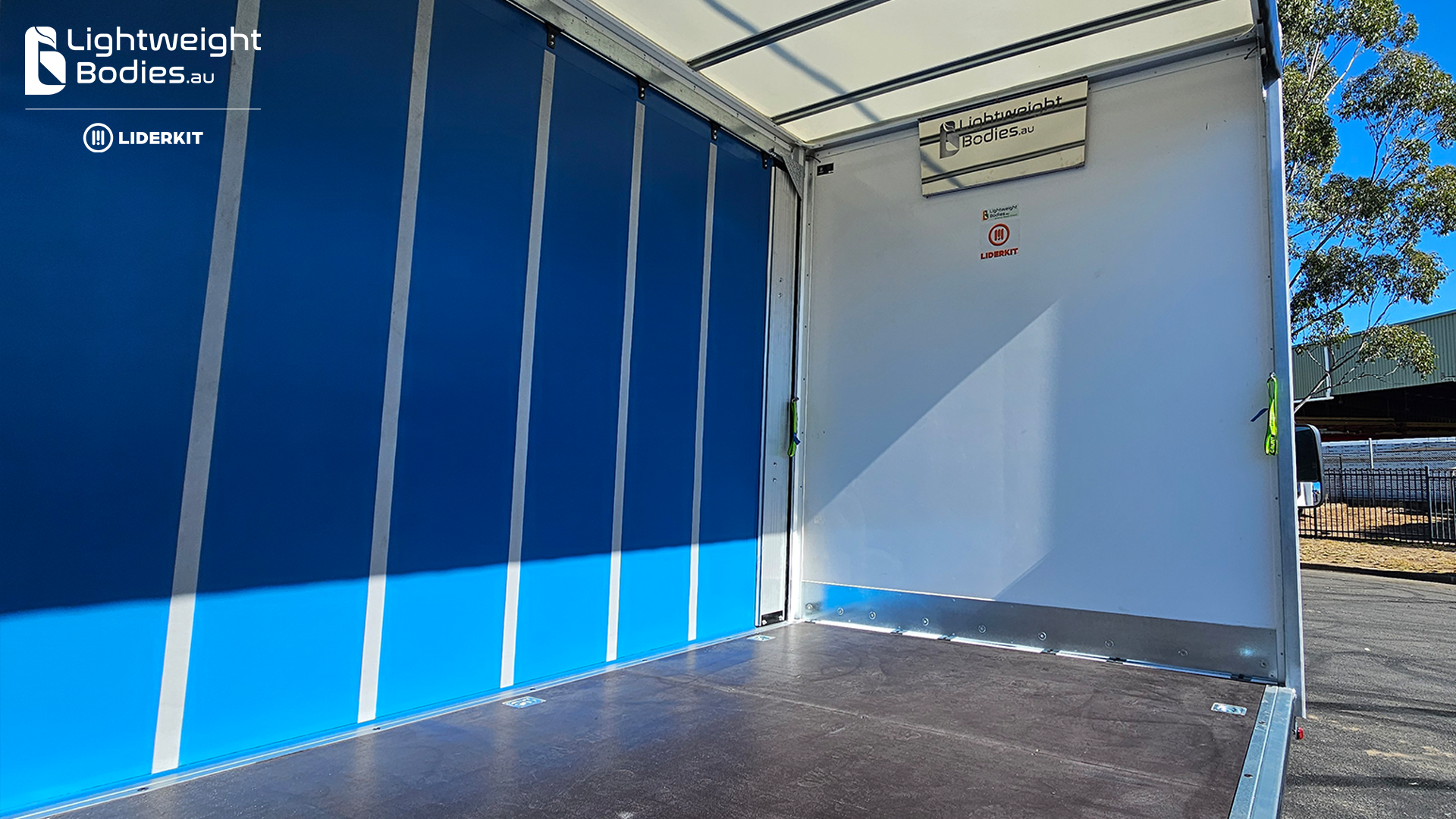

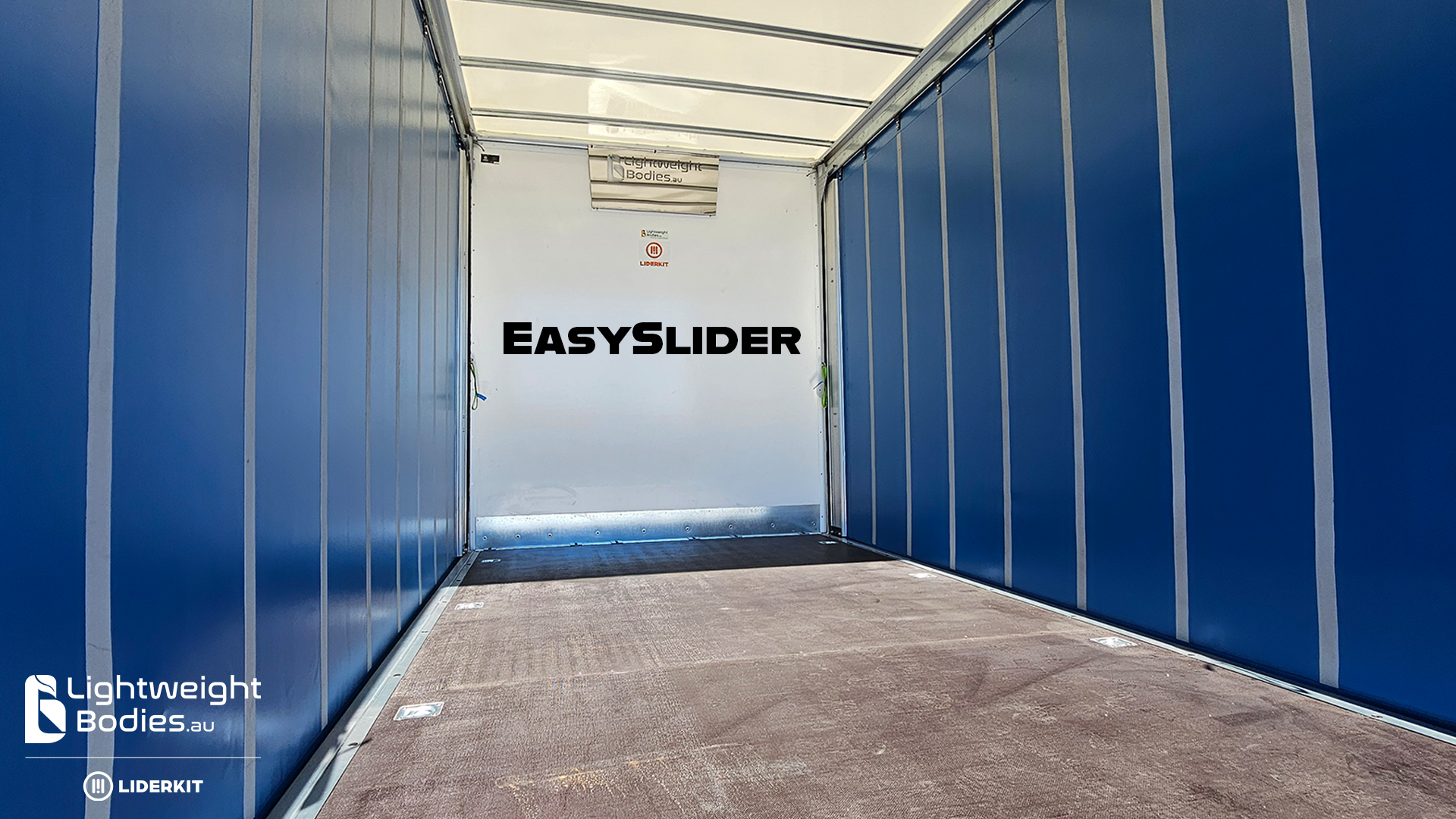

Curtains – Easy-Slide curtains of 900gr/m² canvas, white finish to match the body with single lockable fast-latch systems.
Roof – Translucent or one-piece 30mm LIDERfoam® XPS insulated sandwich panel for ambient temperature control.

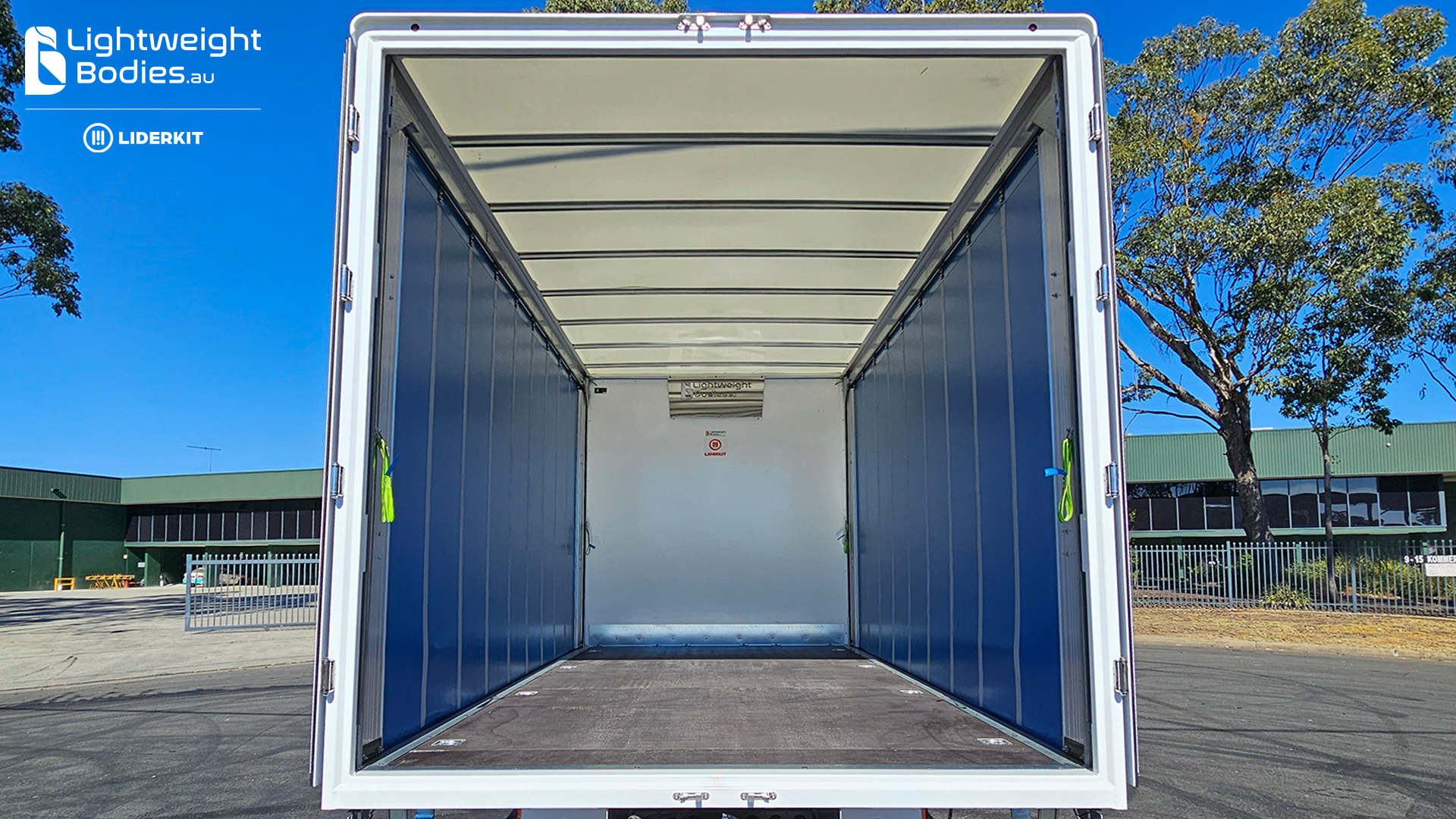

Floor – One-piece heavy-duty anti-slip Phenolic or polyurethane top finish, with a fully sealed fibreglass underside for durability and longevity.
Sub-Frame – Galvanised runners fitted with LIDERKIT® multi-section aluminium cross-members.

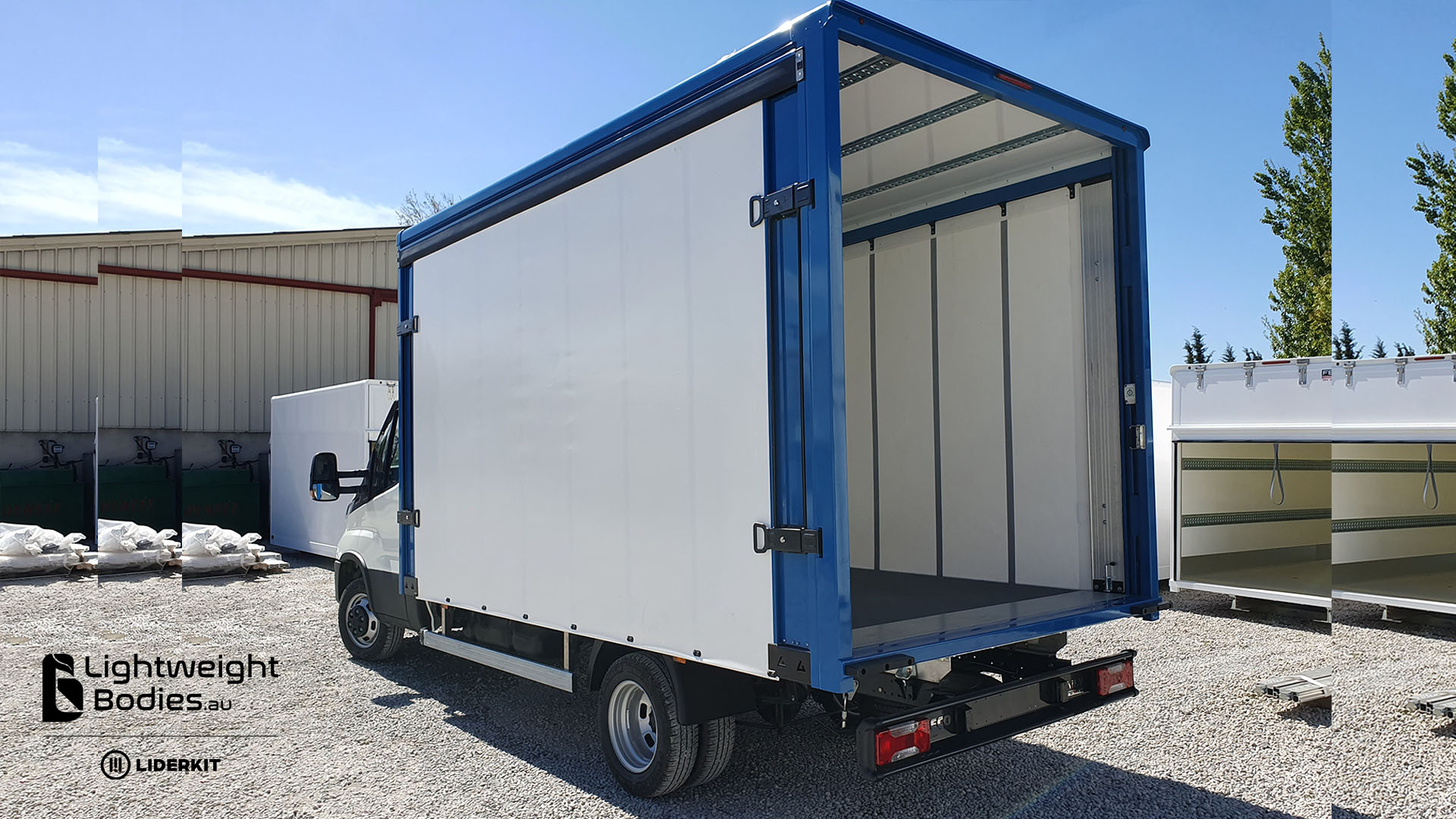

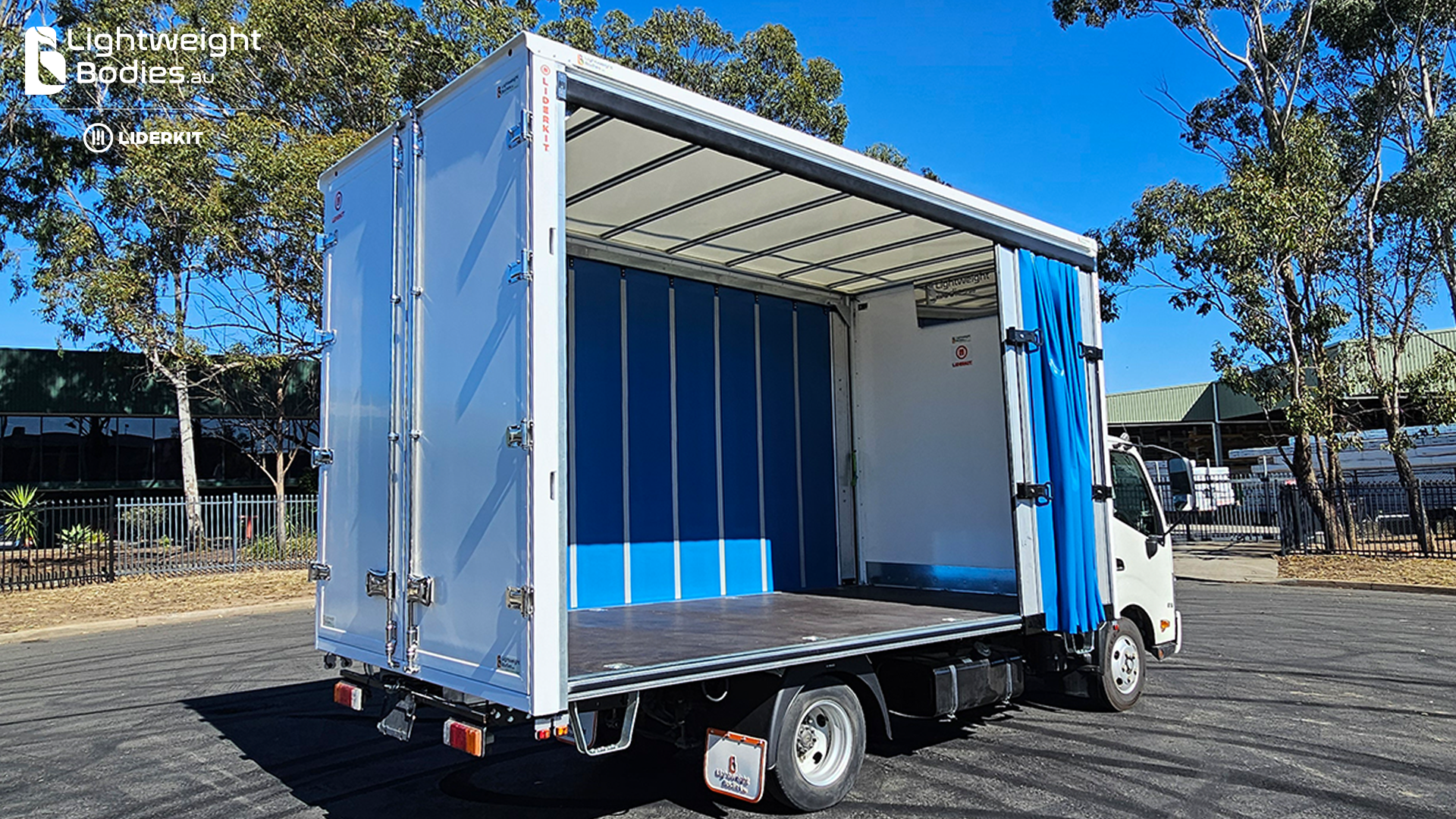

Rear Frame – 4mm reinforced galvanised rear frame, painted white, with barn doors made from 30mm LIDERfoam®, internal pinch seals, cam-locks and flush lockable latches.
Rear Doors – Vertical twin barn doors made from 30mm LIDERfoam®, internal pinch seals, internal cam-locks and flush lockable stainless-steel latches.
Runners – Fully adjustable galvanised runners to suit any cab-chassis width.
Options – Rear lifters, wind scoops, floor hooks and much more.
